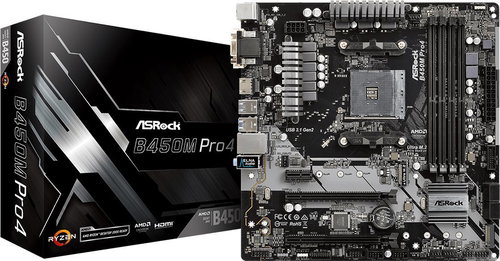

ASROCK B450M Pro4 - Motherboard - Main image
Show alternatives
Product accessories
Manufacturer website

Don't like the alternatives?

Choose from the full offer

Motherboards Motherboards ASROCK Socket AMD AM4 Motherboards Socket AMD AM4 Motherboards ASROCK

ASROCK B450M Pro4

Motherboard ASROCK B450M Pro4 Screen

The ASROCK motherboard is based on the AMD B450 chipset with the AMD AM4 socket to accommodate the processor. As you would expect,, it also has a sound card which will handle 8 channels. The whole motherboard is controlled with the modern UEFI BIOS. It smartly combines compact dimensions with an adequate number of connectors to create an ideal home PC. For this particular model, you'll need a compatible mATX (Micro ATX) format case.

ASROCK B450M Pro4 Motherboard Key Features

  • AMD AM4 socket and the AMD B450 chipset
  • ASROCK B450M Pro4 format: mATX (Micro ATX)
  • Integrated audio card for 8 channels
  • DDR4 computer RAM type with DIMM design
  • The motherboard can hold 4 × dual-channel memory modules
Motherboard ASROCK B450M Pro4 Connectivity (ports)
Motherboard ASROCK B450M Pro4 Lateral view

ASROCK B450M Pro4 Motherboard Connectivity

Computer memory is extremely important, so this ASROCK motherboard is equipped with 4 RAM slots. You can pair it with DDR4 type DIMM RAM. You can connect them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 3200 MHz.

ASROCK B450M Pro4 Connectivity

This motherboard is made for 2 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 2 popular M.2 connectors. In terms of USB ports, it's got 2 × USB 2.0, 4 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.

Motherboard ASROCK B450M Pro4 Lateral view

ASROCK Motherboard Primary Usage

The ASROCK B450M Pro4 motherboard's uses are well illustrated by the AMD B450 chipset. B450 chipsets are fantastic for both conventional multimedia use and for high-performance gaming rigs. Meanwhile, enthusiastic gamers will love their support for the most modern processors from AMD overclocking possibilities.

What Else Can the ASROCK B450M Pro4 Motherboard Do?

  • The motherboard comes with a built-in Realtek ALC892 sound card
  • Other notable advantages encompass characteristics such as AMD CrossFire Technologies
  • Supported external communication interfaces: DVI, HDMI, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C and VGA (D-Sub)
  • Supported internal interfaces: ARGB LED Header, COM header, M2 Socket, RGB LED Header, Serial ATA III, TPM header, USB 2.0 header and USB 3.2 Gen 1 header
  • The M.2 interface will be very welcome if you are installing super fast SSDs
  • The motherboard supports RAM modules with a clock speed of up to 3200 MHz
  • Serial ATA III: 4 ×

Specifications

Socket and chipset

Socket AMD AM4
Chipset AMD B450

Format & functions

Motherboard form factor mATX (Micro ATX)
Basic functions Integrated network card, Integrated sound card, PCI Express 2.0, PCI Express 3.0, For CPU with integrated GPU

Memory

Memory type DDR4
Number of RAM slots 4 ×
Max. frequency (OC) 3,200 MHz
Design DIMM
Connection Mode dual-channel

Advanced parameters

Advanced features AMD CrossFire Technologies
Sound card type Realtek ALC892
Number of sound card channels 7.1

Connectors

External DVI, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, VGA (D-Sub)
Internal COM header, M2 Socket, RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, Serial ATA III
PCI express x16 2×
PCI express x1 1×
USB 2.0 2×
USB 3.2 Gen 1 (USB 3.0) 4×
USB 3.1 (3.1 gen2) 2×
M.2 slots 2×
Serial ATA III 4×

Series

Series Asrock Pro
