Name: ASROCK B850 Steel Legend WiFi
Brand: ASROCK
SKU: ASb850s1_openbox
Price: 4469 CZK
Availability: InStock
Rating: 4 (0 reviews)

All from ASROCK

11 ratings

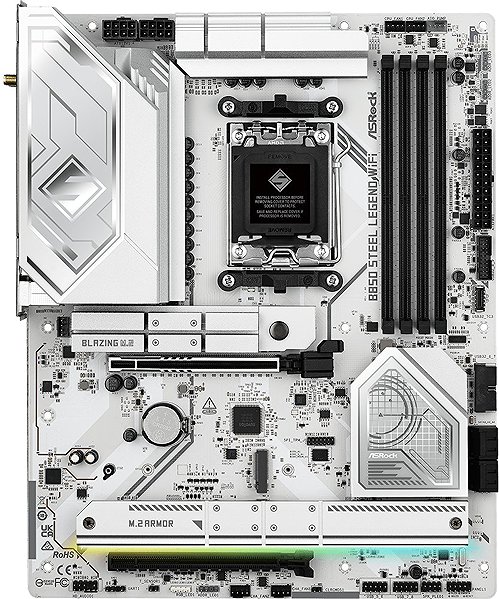

ASROCK B850 Steel Legend WiFi - Motherboard - Main image

4,469,- New 4,599,-

4,9% interest from 103,- monthly

Add to the list

ASROCK B850 Steel Legend WiFi

This ASROCK motherboard is built with the AMD B850 chipset, which has the AMD AM5 socket for the CPU. As you would expect,, it also has a sound card for 8,0 channels. You may use its network connection module with the very handy Wi-Fi connection support. It is a large motherboard for extremely powerful PC builds, which require multiple cards and complex cooling. For this particular motherboard model, it is neccessary to use a compatible ATX format PC case.

ASROCK B850 Steel Legend WiFi Motherboard Key Features

AMD AM5 socket and the AMD B850 chipset
ASROCK B850 Steel Legend WiFi size: ATX
Integrated sound card for 8,0 channels
DDR5 computer RAM type with DIMM design
The motherboard can hold 4 × dual-channel memory modules

ASROCK B850 Steel Legend WiFi Motherboard Connectivity

Computer memory is indispensable, so this ASROCK motherboard is equipped with 4 RAM slots. It's compatible with DDR5 type DIMM memory . You can attach them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 8000 MHz.

ASROCK B850 Steel Legend WiFi Connectivity

The motherboard supports 2 graphics cards with PCI Express 16x slots. The internal interface includes a total of 4 popular M.2 connectors. In terms of USB ports, it's got 4 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 4 × of the fast 3.1 (3.1 gen2) type ports.

The motherboard has an integrated Realtek ALC4082 sound card

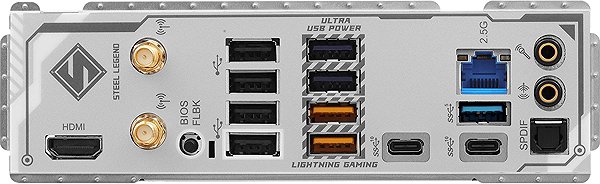

External communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2 and HDMI 2.1
Supported internal interfaces: RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2x2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x16 and Serial ATA III
The motherboard supports RAM modules with a clock speed of up to 8000 MHz
SATA III: 4 ×

Specifications

Socket and chipset

Socket AMD AM5

Chipset AMD B850

Format & functions

Motherboard form factor ATX

Basic functions Bluetooth, Integrated network card, Integrated sound card, PCI Express 5.0, For CPU with integrated GPU, Wi-Fi

Memory

Memory type DDR5

Number of RAM slots 4 ×

Max. frequency (OC) 8,000 MHz

Design DIMM

Connection Mode dual-channel

Advanced parameters

Sound card type Realtek ALC4082

Number of sound card channels 8.0

Connectors

External Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1

Internal RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2x2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x16, Serial ATA III

PCI express x16 2×

USB 2.0 4×

USB 3.2 Gen 1 (USB 3.0) 3×

USB 3.1 (3.1 gen2) 4×

M.2 slots 4×

Serial ATA III 4×
