ASROCK B850M-X WiFi

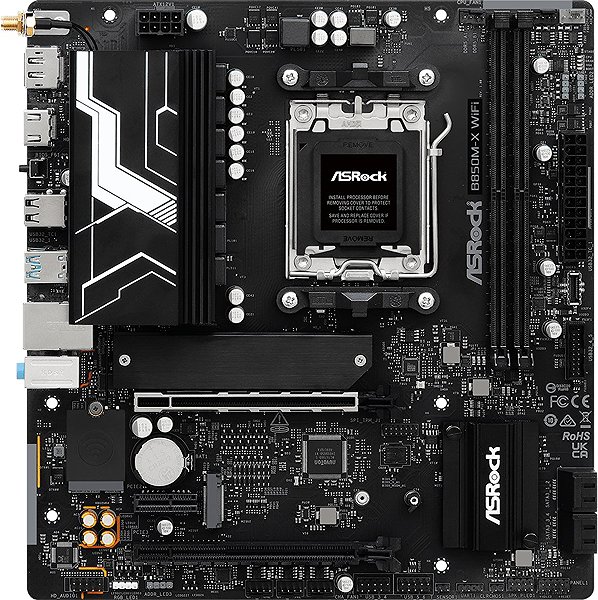

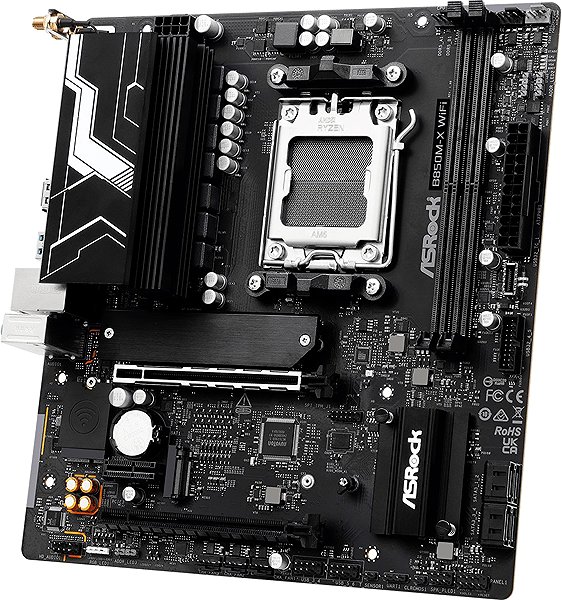

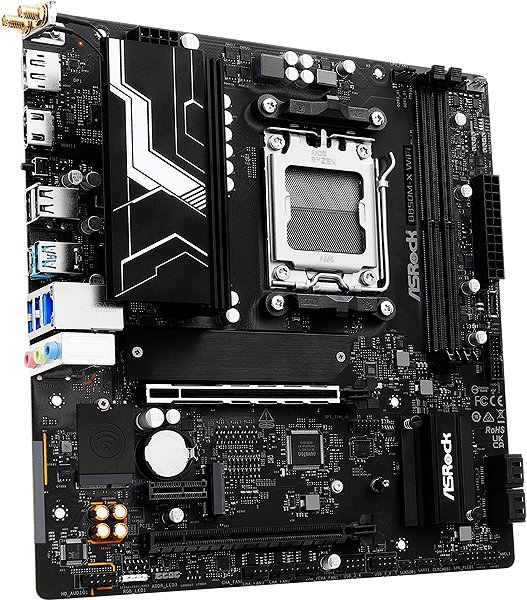

This ASROCK motherboard is based on the AMD B850 chipset with the AMD AM5 socket for CPU insertion. Classically, it is also equipped with a sound card which handles 8 channels. You will be able to use the network connection module with the handy Wi-Fi connection options. It smartly combines compact dimensions with an adequate number of adaptors to create an exemplary home PC setup. If you want to build a PC with this motherboard model, it is neccessary to use a compatible mATX (Micro ATX) format case.
ASROCK B850M-X WiFi Motherboard Key Features
- AMD AM5 socket and AMD B850 chipset
- ASROCK B850M-X WiFi size: mATX (Micro ATX)
- Integrated audio card for 8 channels
- DDR5 RAM type with DIMM design
- The motherboard can accommodate 2 × dual-channel memory modules
ASROCK B850M-X WiFi Motherboard Connectivity
Computer RAM is absolutely essential, so this ASROCK motherboard has a total of 2 RAM slots. You can pair it with DDR5 type DIMM operating memory. You can connect them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 8200 MHz.
ASROCK B850M-X WiFi Connectivity
This motherboard is ready to accommodate 2 graphics cards with PCI Express 16x slots. The internal interface has a total of 2 popular M.2 connectors.
- The motherboard has an integrated Realtek ALC897 sound card

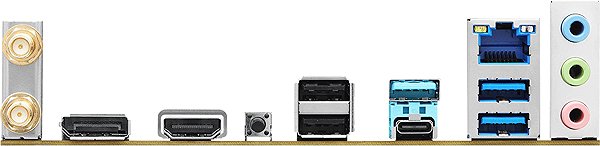

- Supported external communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB-C 3.2 Gen 1, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: ARGB LED Header, RGB LED Header, Serial ATA III, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, M.2 PCIe 5.0, M.2 PCIe 4.0, PCIe 4.0 x16 and PCIe 4.0 x1
- Maximum supported RAM clock speed: 8200 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
| Code: | ASb850x2 |
| Links: | Producer's Website: |
