ASROCK B860 Pro RS
The ASROCK B860 Pro RS motherboard, with its advanced VRM design and Dr. MOS technology, provides stable power to the processor and enables seamless overclocking. DDR5 XMP and EXPO memory support further enhances performance for demanding applications. Upgraded connectivity with PCIe Gen5 Blazing M.2, ultra-fast 2.5Gbps LAN and USB 3.2 Gen2x2 Type-C delivers lightning-fast data transfer and ensures optimal performance not just for gamers, but for professionals and DIY enthusiasts too. What's more, Nahimic Audio and Polychrome RGB technology bring a great audio experience and personalised visual effects, making this board the ideal solution for a wide range of users.
Intel B860
Chipset
Intel 1851
Socket
ATX
Form factor
DDR5
Memory type
4×
Number of RAM slotsKey features of the ASROCK B860 Pro RS motherboard
- Enhanced VRM design for stable processor power and seamless overclocking
- DDR5 XMP and EXPO support for easy memory overclocking
- PCIe Gen5 Blazing M.2 for ultra-fast SSDs
- 2.5Gbps LAN for maximum network connectivity
- Nahimic Audio technology for an enhanced sound experience
- Polychrome RGB and SignalRGB for customisable lighting
- Reinforced steel slot for PCIe 5.0 ensures stability and strength
Enhanced performance for demanding users
The ASROCK B860 Pro RS features an advanced VRM design that ensures stable processor power and seamless overclocking. With the new Dr. MOS technology, which provides a higher current for each phase, thermal results and performance are improved, leading to better results even during demanding operations. DDR5 XMP and EXPO support enables easy memory overclocking, which guarantees higher performance for demanding applications.
The latest technology for ultra-fast storage
The motherboard supports PCIe Gen5 Blazing M.2, which offers twice the bandwidth of the previous generation. With transfer speeds of up to 128Gb/s, it's ideal for ultra-fast SSDs and maximises storage performance. Thanks to optimised cooling for M.2 SSDs and a built-in aluminium heatsink, the system remains stable even under heavy loads.
Top-notch connectivity for everyday use and gaming
The motherboard is equipped with a 2.5Gbps LAN for ultra-fast network connectivity, which is ideal for online gaming, streaming and transferring large files. With support for USB 3.2 Gen2x2 Type-C, data transfer is up to twice as fast as the previous generation, enabling quick backups and data transfers.
Advanced audio and design for the ultimate experience
With Nahimic Audio technology providing an enhanced sound experience, this board is ideal for audiophiles. Whether you're using headphones or speakers, Nahimic Audio delivers rich and detailed sound. The motherboard also offers Polychrome RGB for customisable lighting effects and SignalRGB for seamless integration with RGB devices.
Suitable for DIY enthusiasts and professionals
This motherboard features a reinforced steel slot for PCIe 5.0, which ensures signal stability and strengthens the installation of heavy graphics cards. It's ideal for demanding builds where maximum stability is required, even under heavy load.

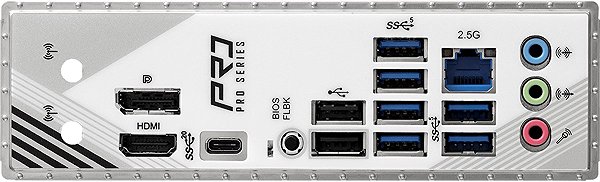

Port equipment
Storage
- Number of SATA III: 4
- Number of M.2: 3
- M.2 Slot 1: PCIe Gen5
- M.2 Slot 2: PCIe Gen4
- M.2 Slot 3: PCIe Gen4
USB ports
- Internal USB 2.0: 2
- Internal USB 3.2 Gen 1: 1
- Internal USB-C 3.2 Gen 1: 1
- Rear USB 2.0: 2
- Rear USB 3.2 Gen 1: 6
- Rear USB-C 3.2 Gen 2x2: 1
Graphics
- HDMI 2.1
- Graphics outputs: HDMI, Thunderbolt
Sound
- Number of channels: 7.1
- Rear connectors: 2× 3.5mm, Optical S/PDIF
- Internal connectors: S/PDIF
Other
- Rear: BIOS switch, CMOS clear, Wi-Fi antenna
- Power: 24-pin, 2× 8-pin
- Cooling: PWM FAN (4-pin) - 6, Water pump - 4-pin
- Internal: Chassis intrusion sensor, RGB LED (4-pin), Temperature sensors
Choosing a motherboard
When choosing a motherboard, it's important to pay particular attention to the socket type, form factor, and chipset. These are the most crucial parameters, ensuring the board's compatibility with the processor, expansion cards, and other components. The specific socket determines your choice of processor, while the other connectors will dictate which components you need for your future PC.Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | ASb860p1 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
