ASRock X570 EXTREME4

This ASROCK motherboard is built using the AMD X570 chipset and has the AMD AM4 socket to accommodate the processor. And, of course, it is also equipped with a sound card which handles 8 channels. It is a large-format motherboard for extremely powerful setups that employ multiple hardware cards and complex cooling. If you want to use this motherboard model, you will require a compatible ATX format computer case.

ASRock X570 EXTREME4 Motherboard Key Features

• AMD AM4 socket and uses AMD X570 chipset
• ASRock X570 EXTREME4 format: ATX
• Integrated audio card for 8 channels
• DDR4 computer RAM type with DIMM design
• The motherboard can hold 4 × dual-channel memory modules

ASRock X570 EXTREME4 Motherboard Connectivity

RAM is absolutely crucial, so this ASROCK motherboard has a total of 4 RAM slots. You can make use of DDR4 type DIMM operating memory. You can link them in dual-channel mode. The motherboard supports models with a clock speed of up to 4666 MHz.

ASRock X570 EXTREME4 Connectivity

This motherboard is made for 2 graphics cards with PCI Express 16x slots. The internal interface is also equipped a total of 2 popular M.2 connectors. You'll also be happy to find it has TPM, meaning better security, a dazzling RGB LED Header, and Thunderbolt

What Else Can the ASRock X570 EXTREME4 Motherboard Do?

• The motherboard comes with an integrated Realtek ALC1220 sound card
• Other notable advantages include characteristics such as AMD CrossFire Technologies

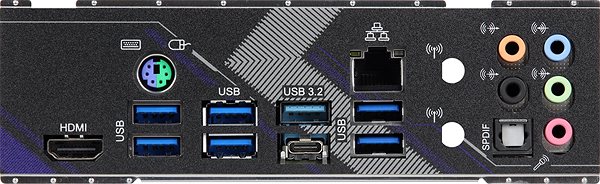

• External communication interfaces: HDMI, Jack, PS/2, RJ-45 (LAN) 1Gbps, S/PDIF , USB 3.2 Gen 1, USB 3.2 Gen 2 and USB-C
• Internal interfaces: ARGB LED Header, M2 Socket, RGB LED Header, Serial ATA III, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header and USB-C 3.2 Gen 1 (USB 3.0) header
• M.2 will be very welcome if you are connecting lightning-fast SSDs
• Maximum supported RAM module clock speed: 4666 MHz
• Serial ATA III: 8 ×
