AudioDesign PMU 601 HS2
AudioDesign PMU 601 HS2
The AudioDesign PMU 601 HS2 wireless system is a two-channel UHF solution with two headset microphones that offers stable wireless transmission in the range of 50 Hz to 15 kHz and a range of up to 30 meters. Therefore, it is suitable for reliable voice transmission in various types of applications. The system operates in two separate frequency blocks from 640 to 654.7 MHz and from 656 to 680 MHz. Each block has 10 channels, allowing flexible frequency selection according to the environment.
Key features of the AudioDesign PMU 601 HS2 wireless system
- Stable UHF transmission in two separate frequency bands
- Pair of headset microphones with integrated transmitters
- Automatic pairing of transmitter and receiver without complicated configuration
- Frequency range 50 Hz to 15 kHz for clear voice transmission
- Signal range up to 30 meters under normal conditions
- Receiver with display and automatic channel tuning function
Technical design and equipment

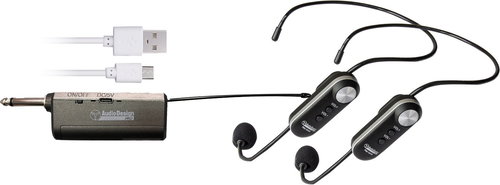

The system includes a receiver with a 6.3 mm Jack connector, an integrated 18650 lithium battery (3.7 V, 500 mA) and a clear display with an automatic frequency search function. The transmitters have built-in electronics directly in the microphone body and pair with the receiver automatically, without the need for manual adjustment. The package includes a USB - USB-C charging cable and a plastic transport case for safe transportation of the entire system.
Number of channels:
2× 10
Frequency:
640 to 654.7 MHz; 656 to 680 MHz
Frequency band:
UHF
Transmitter connector:
6.3mm jack
Receiver connector:
6.3mm jack
Power supply:
Built-in battery
Specifications
Power outlet type
Characteristics
Features
Connectors
| Code: | AudDesBZsys09 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
AUDIODESIGN srl Via dell’Industria 28 42025 Corte Tegge, Cavriago (RE), Italy +39 0522 941444 [email protected]
|
