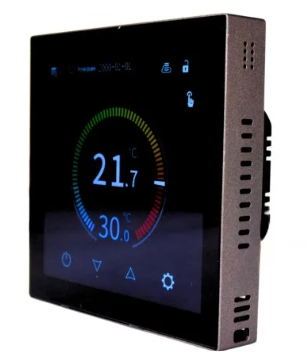

Auraton Octa WiFi touch thermostat, English
Auraton Octa WiFi touch thermostat, English
The Auraton Octa WiFi thermostat is used to regulate the temperature in heating and cooling systems, such as boilers or underfloor heating. This wired device requires a connection to a 230V mains supply and is designed for flush-mounting into a wall. The integrated colour TFT IPS display shows the current operating status and all set parameters. The entire user interface is in English, simplifying setup directly on the wall. The unit has an IP20 protection rating and its overall dimensions are 86×86mm. The device offers several protection and operational functions for a safe household. An integrated child lock increases safety by locking the controls. Overheating protection prevents system damage when critical temperatures are reached. The device works in both heating and cooling modes.
Key features of the Octa WiFi touch thermostat, English
- High-resolution colour touch IPS display
- Supports a wireless connection to a 2.4GHz WiFi network
- Offers a weekly program cycle with eight temperature levels
- Package includes an internal and an underfloor temperature sensor
- Manages temperature regulation in a range from 1 to 70°C
- Smart Life and Tuya mobile apps for remote temperature control
- Requires flush-mounting into a wall with a depth of 26mm
Connectivity options
This thermostat supports a wireless connection to a 2.4GHz WiFi network. Users can control the heating system via mobile phones and tablets with Android and iOS systems. Compatibility with the Tuya and Smartlife apps simplifies integration into a smart home. The device also supports voice control via Google Assistant.
Regulation methods and temperature sensors
The package includes an internal room sensor and an external underfloor temperature sensor. Users can choose from three temperature regulation modes depending on the specific setup. The system operates in room sensor mode, floor sensor mode, or a combination of both. The hysteresis can be set in a range from 0.5 to 2.5°C. The operating temperature range for this device is from 0 to 90°C at up to 85% humidity without condensation.
User interface, weekly scheduling, and operating modes
Control is based around the high-resolution colour touch IPS display. When connected to the internet, the panel displays the current time, date, and day of the week. The screen also shows the outdoor air temperature and humidity level for the given location. Users can also see information about air quality and PM2.5 dust levels on the display. The device supports automatic and manual operating modes in a weekly programmable cycle. Users can program up to 8 different temperature levels for each individual day. The temperature can be set in a wide range from 1 to 70°C. A power-saving holiday mode is available for periods of long absence. The built-in relay can handle a load of 16A at 250V AC for standard heating systems.
Placement:
Boiler, underfloor heating
Power supply:
90-240V AC / 50-60Hz / 1W
Temperature control range:
1–70°C
Connection:
WiFi 2.4GHz
Display:
Colour touch IPS
Compatible apps:
Tuya, Smartlife
Dimensions:
86×86mm
Protection rating:
IP20
Specifications
Type
Features
Temperature regulation
Special functions
Input voltage
Indicator
Use
Connectivity
Connection
Use
| Code: | WSaaa6182 |
| Warranty: | 24 months |
| Manufacturer information |
LARS Andrzej Szymański, ul. Świerkowa 14, 64-320 Niepruszewo, Polska, +48 61 840 40 00, [email protected], auraton.pl |
