AHProfi self-winding drum with air hose 20 m PROFI
AHProfi self-winding drum with air hose 20 m PROFI

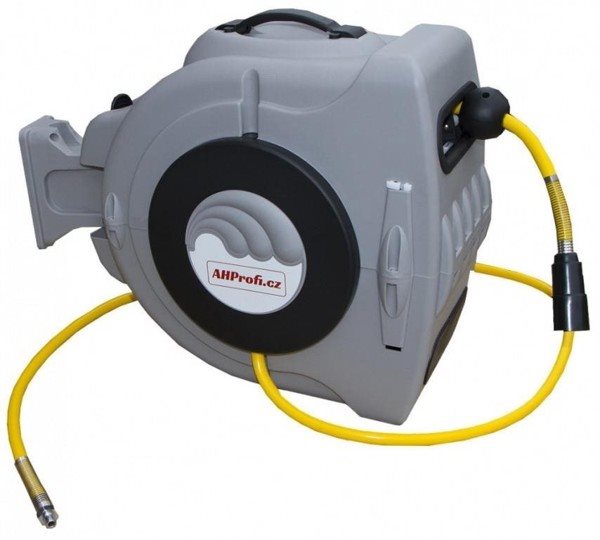

The self-winding drum with compressed air hose AHProfi GQ200 can be used for use in the workshop, garage and garden. Thanks to the length of 20 m, the handling of the hose is maximally comfortable and winding on the drum prolongs its service life. The hose can be easily pulled out of the drum and is automatically locked after the required length of pulling. In addition, the self-winding compressed air hose with AHProfi GQ200 reel is very easy to store and is immediately ready for use at any time. The drum has a rotating holder that ensures comfortable mounting on the ceiling or any structure. The hose is designed for a working pressure of 6 bar and a maximum pressure of 12 bar. The drum is connected to the compressor by a high-pressure hose with a 2 m quick coupling. For the correct functionality of the hose, it is necessary to purchase 2 quick couplings: 1/4 “females and 1/4“ males.
Key features of the AHProfi GQ200 compressed air hose reel
- The self-winding drum ensures convenient storage
- Hose length 20 m + 2 m for connection
- Both ends of the hose with G 1/4 “fitting
- Special mesh insert
- Hose diameter (inner / outer): 10.0 / 16.0 mm
- The swivel bracket allows attachment to the ceiling or any structure
- Practical handle for comfortable handling
- Working pressure 6 bar, maximum pressure 12 bar
Metal fittings for connecting pneumatic tools
Both ends of the AHProfi GQ200 compressed air hose are fitted with a G 1/4 “fitting for easy connection of pneumatic tools. Thanks to the design with a reel, the hose is also conveniently stored and is always ready for further use. The AHProfi GQ200 compressed air hose is designed for a working pressure of 6 bar and a maximum pressure of 12 bar, so it can easily withstand even higher loads.
Specifications
Dimensions
| Code: | AHPROF557 |
