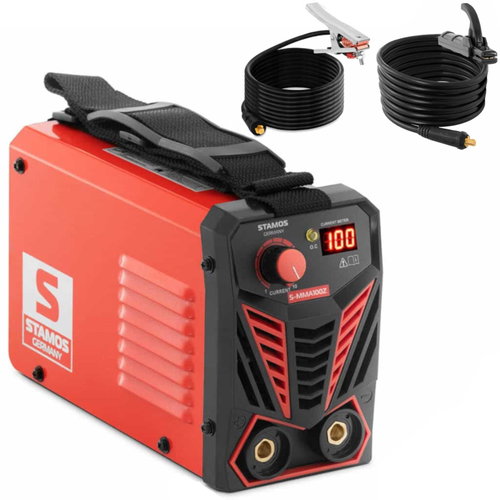

Stamos Germany MMA IGBT with Hot Start 100 A

Welding Machine - voltage [V] - 230, cooling of the housing - fan, working cycle [%] - 40, MMA cable [m] - 8, power cable [m] - 2,3, rated input power [kVA] - 3,9, ground wire [m] - 8, power factor - 0.73, maximum input power [kVA] - 3.9, insulation class - H, maximum input power [A] - 20,2, weldable thickness [mm] - 4, max. welding current [A] - 100, min. welding current [A] - 20, degree of IP protection - IP21S, rated input current [A] - 12,8, no-load voltage [V] - 60, welding current at 60% duty cycle [A] - 82, welding current at 100% duty cycle [A] - 63, dimensions (L×W×W) [cm] - 24,5 × 10 × 15,5, weight [kg] - 2,4, transport dimensions (L×W×W) [cm] - 32 × 22,5 × 23,5, transport weight [kg] - 4,3, Including: welding machine, welding clamp with cable (8 m), earthing clamp with cable (8 m), instruction manual
