Bachmann Vertical power supply panel 24 × C13 socket + 4 × C19, 2 × circuit breaker, 3 m, 32 A fork
Bachmann Vertical power supply panel 24 × C13 socket + 4 × C19, 2 × circuit breaker, 3 m, 32 A fork

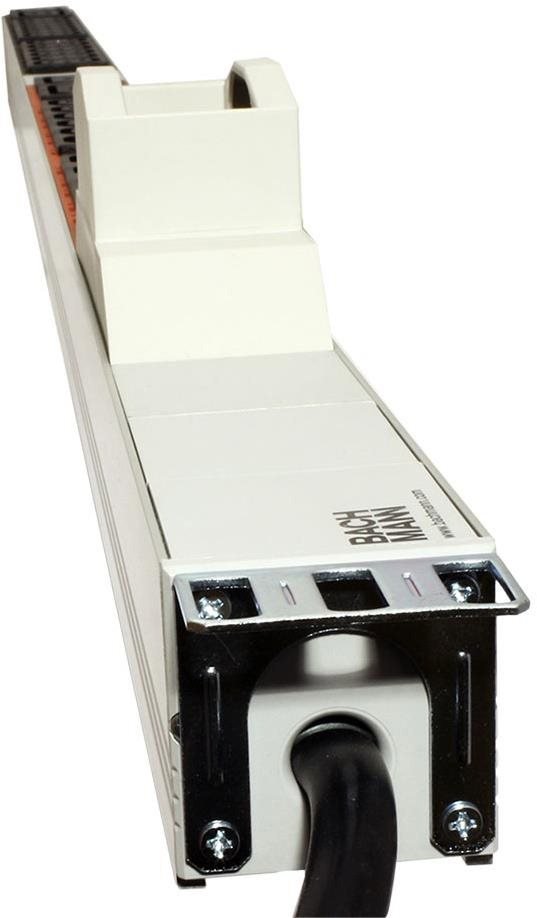

The Bachmann drawer bar is a vertical power distribution unit in a high-quality aluminium profile. Its compact size makes it suitable for powering in a data center, server, or network rack. The space-saving design provides room for data cabling and airflow for air conditioning. The reliability of the contacts is guaranteed by high quality standards.
Key features of Bachmann power distribution unit
- Bachmann power distribution unit 800.2336
- Quality aluminium profile
- Power in the data centre
- For server and network racks
- Single phase blue input fork 32 A
- 24× C13 sockets and 4× C19 sockets in two segments

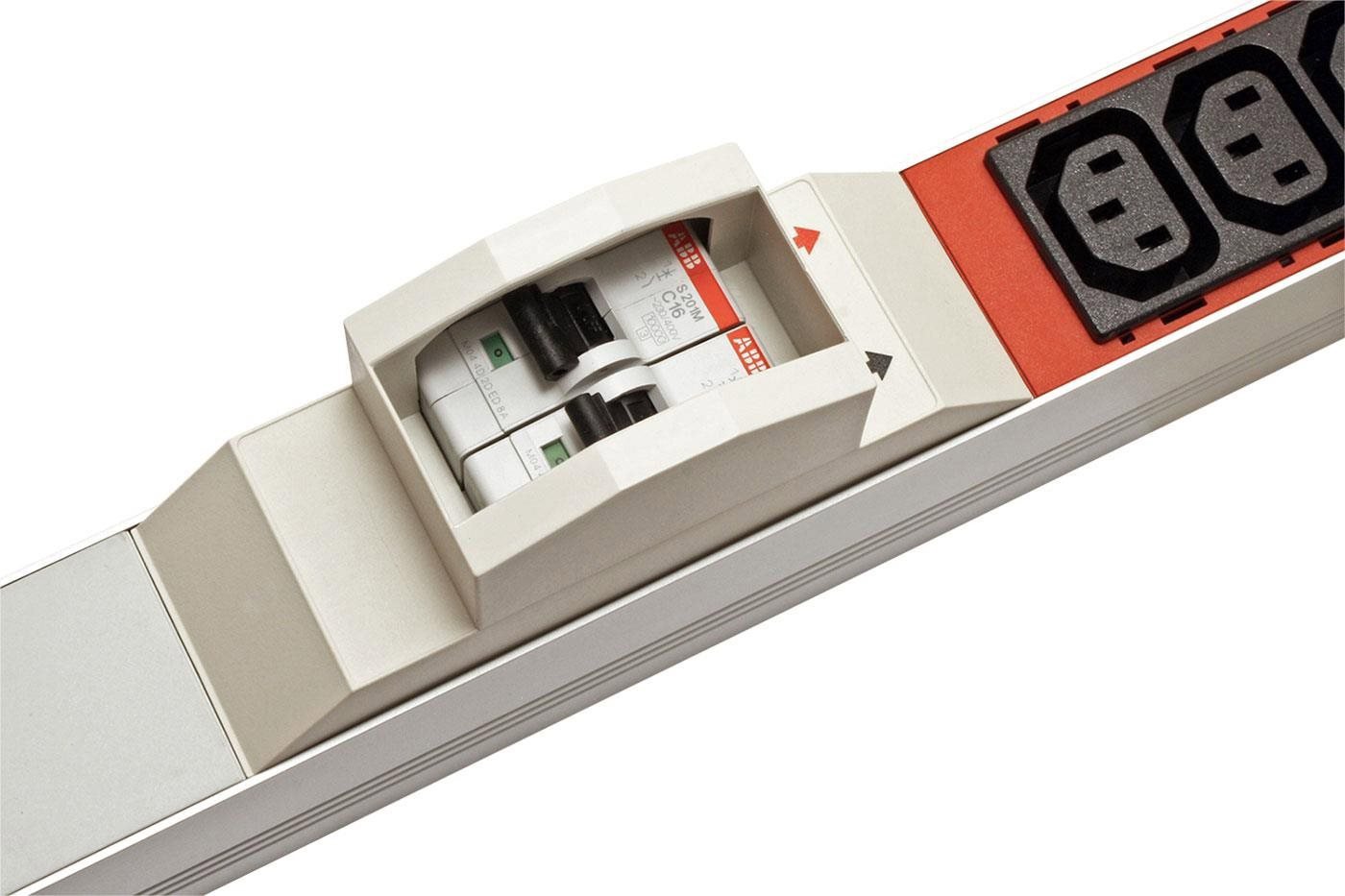

- Two 16 A circuit breakers for each segment
- Voltage 250 V, current 32 A
- 2× mounting feet included

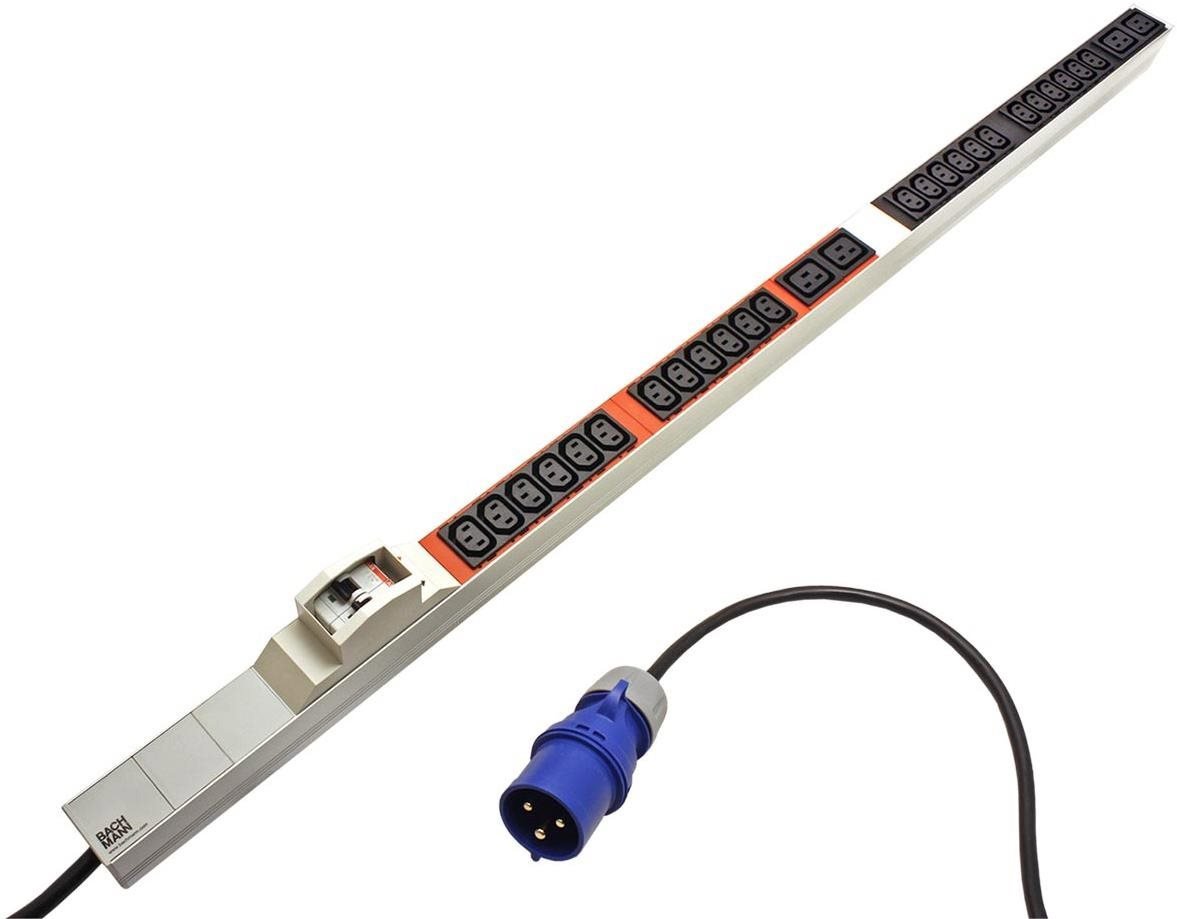

Bachmann PDU with 28 power sockets and circuit breakers
Bachmann power distribution unit 800.2336 with single-phase input fork contains 24 C13 sockets and 4 C19 sockets divided into two segments. Each segment is protected by a 16A circuit breaker. The C13 connectors can be fitted with cable pull-out fuses. The package includes feet for mounting in the switchboard.
| Code: | BAClis07 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, Germany, [email protected], https://www.bachmann.com/
|
