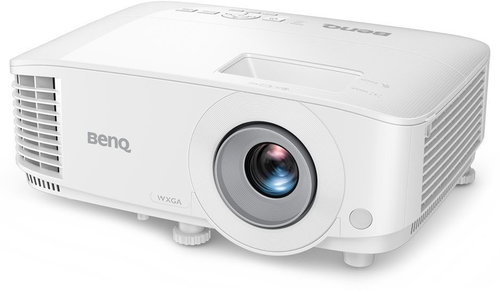

BenQ MW560C
BenQ MW560C
The BenQ MW560C is a DLP projector ideal for business and educational settings. It uses DLP technology to project an image in native 1280 × 800 WXGA resolution. The projector uses a lamp as its light source, offering a high brightness of 4000 ANSI lumens, which, combined with a 20,000:1 contrast ratio, ensures content remains legible even in well-lit rooms. The WXGA projector also offers a short projection distance for flexible installation. SmartEco technology intelligently adjusts the lamp's power, extending its life up to 15,000 hours in LampSave mode. An integrated 10W speaker provides audio without the need for external sound equipment.
1280 × 800 WXGA
Maximum resolution
Lamp
Light source
4000 ANSI lm / 3200 ISO lm
Brightness
Lit spaces – over 3000 lm
Lighting conditions
Key features of the BenQ MW560C projector
- Uses DLP technology for sharp and detailed visuals
- High contrast ratio of 20,000:1
- Projects images in a 4:3 aspect ratio
- Enables short-throw projection
- Projected image screen size ranges from 60" to 150"
- Automatic vertical keystone correction
- Long lamp life of up to 15,000 hours in LampSave mode
- Fan noise of only 29dB in ECO mode
- Integrated 10W speaker for audio playback
- Wide connectivity options via HDMI, VGA and USB ports
Image and display technology
This DLP projector projects images using precision glass optics that reduce distortion and enhance detail sharpness. The native 1280 × 800 WXGA resolution with a 4:3 aspect ratio is ideal for presentations and displaying spreadsheets. A brightness of 4000 ANSI lumens and a 20,000:1 contrast ratio ensure a clear image even without completely darkening the room. The projector offers several picture modes for different types of content, including Presentation, Infographic, and Spreadsheet modes. The projected image screen size ranges from 60" to 150". The device also supports 3D content display.
Light source and energy-saving operation
The projector uses a lamp as its light source, which has a lifespan of 6000 hours in standard mode. Power-saving modes reduce operating costs. In ECO mode, the lifespan extends to 10,000 hours. SmartEco mode dynamically adjusts the lamp's power according to the content being projected, saving up to 70% energy and extending the lifespan to 10,000 hours. The LampSave mode offers an even longer lamp life, extending it up to 15,000 hours. In ECO mode, the fan noise drops from 34dB to 29dB. The projector's typical power consumption is 260W.
Flexible projection and easy installation
The BenQ MW560C projector allows for flexible placement thanks to its short-throw capability. A projection ratio of 1.55 ~ 1.7 creates a large image even in smaller rooms, with a projection distance from 1.5 metres. Automatic vertical keystone correction within a ±30-degree range simplifies and speeds up the process of setting the correct image shape. For fine-tuning the image size without moving the projector, it offers a 1.1× optical zoom. A retractable foot further simplifies installation for quick tilt adjustments. The projector can be placed on a table or mounted on the ceiling.
Projector connectivity options
For connecting signal sources, the BenQ MW560C projector offers an HDMI 1.4a port and an analogue VGA (D-SUB) input. A 3.5mm audio input is available for connecting external audio devices. The USB Type-A port powers connected smart devices. USB Mini B and RS232 connectors are used for service and management purposes. The projector turns on instantly upon detecting a signal at the HDMI input. It also automatically shuts down after 20 minutes of inactivity to save energy.
Projector technical specification
- Technology: DLP
- Brightness: 4000 ANSI lm / 3200 ISO lm
- Resolution: 1280 × 800 WXGA
- Speakers: 10W
- Projection distance: from 1.5 to 13m
- Image screen size: from 60" to 150"
Package contents
- 1× Projector
- 1× Remote control
Native resolution vs. maximum resolution
Native resolution determines the actual number of physical pixels on the projector's imaging chip and defines the real image sharpness, while maximum resolution only indicates the highest signal the projector can receive and convert (downscale) to its native resolution. For a high-quality image, it is always crucial to consider the native resolution.Specifications
Resolution
Technology
Projection screens
Interface
Features and functions
Dimensions
