Chainway C66 2D Imager Android 11
Chainway C66 2D Imager Android 11

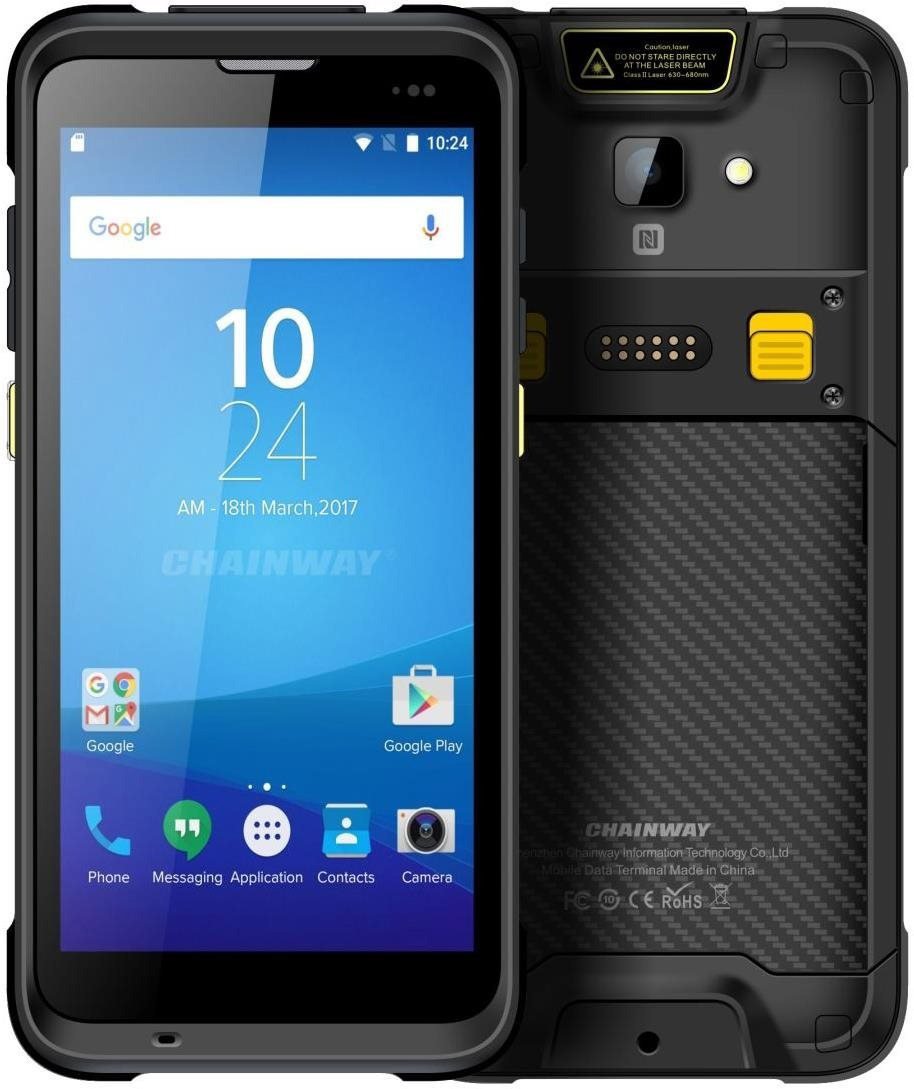

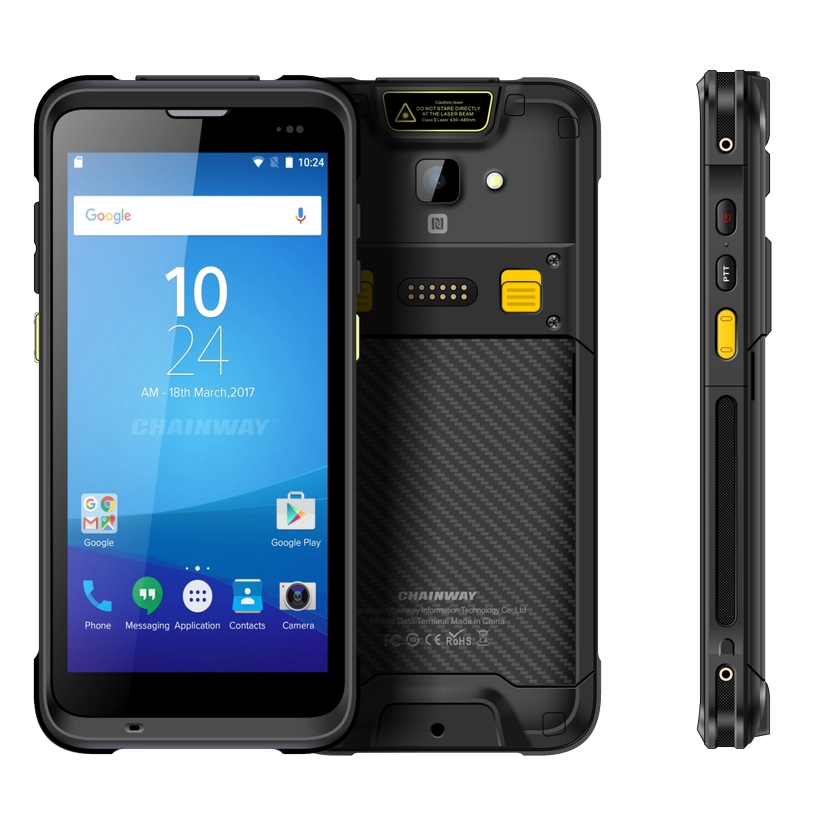

The Chainway C66 is a rugged mobile terminal designed for data collection in logistics, warehousing, manufacturing, retail, asset management and other operations. The device runs on Android 11 and features a Qualcomm octa-core 2.0GHz processor, ensuring fast data processing and smooth application performance. The terminal offers a range of advanced features, including dual-band Wi-Fi (2.4G/5G), 4G mobile communication, a 2D scanning module for capturing barcodes, NFC, and optional UHF RFID technology. The device has a 5.5” multi-touch display that can be comfortably operated even with gloves on or with wet hands. Your work in the field is made easier by a 13MP rear camera, GPS navigation, a Micro SD card slot (up to 256GB), a gravity sensor, a proximity sensor, a light sensor, an accelerometer, and a vibration motor. Thanks to the removable 4420mAh rechargeable battery, you can use the C66 terminal continuously for over 12 hours.
Key features of the Chainway C66 mobile terminal, 2D imager, Android 11
- Modern industrial PDA device built on Android 11 OS
- 2D imager sensor for efficient barcode reading
- Qualcomm Octa-Core 2GHz processor
- The Chainway C66 mobile terminal supports NFC wireless technology
- Removable 4420mAh Li-Ion battery with QC3.0 fast charging support
- IP65 rating according to IEC specifications
- The C66 terminal withstands drops from up to 1.8 metres
- Dual-band Wi-Fi (2.4GHz / 5GHz)
- 13MP rear camera with flash
- Convenient operation via a 5.5" multi-touch display
A rugged helper for demanding environments
The Chainway C66 terminal has an industrial IP65 rating according to IEC specifications. The device withstands repeated drops from 1.8m onto concrete across its entire operating temperature range. When fitted with the protective rubber cover, it can even withstand repeated drops from up to 2.4 metres. The device's construction is also designed to endure up to 1000 tumbles from a height of 0.5 metres at room temperature. The terminal's durability is further enhanced by electrostatic (ESD) protection of ±15kV by air and ±8kV by contact. The Chainway C66 is designed for operation in temperatures from -20°C to 50°C, so you can use it in any indoor or outdoor environment.
Extended data collection options

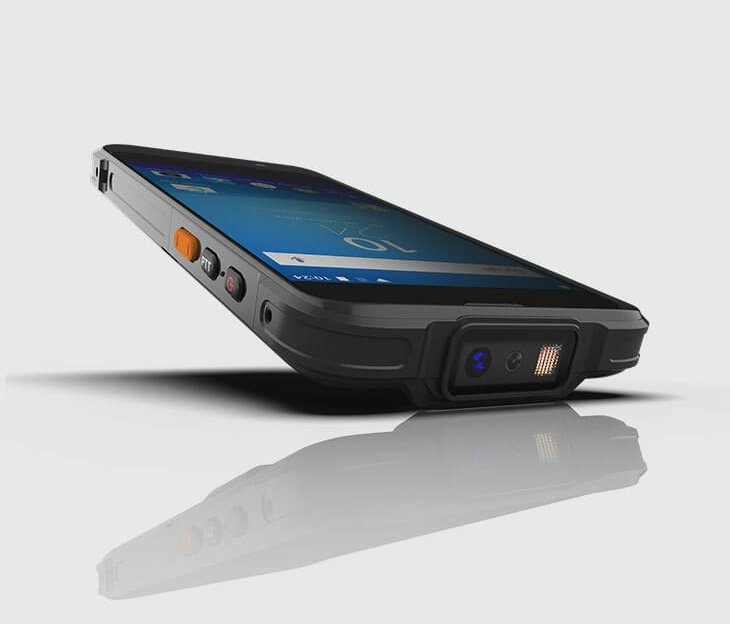

The mobile terminal is equipped with a Zebra/Honeywell 2D scanning module that enables convenient and fast barcode scanning, which you will appreciate especially when managing inventory and handling goods. The Chainway C66 also supports NFC communication at a frequency of 13.56MHz with support for ISO14443A/B, ISO15693, NFC-IP1, and NFC-IP2 protocols. You can also purchase optional accessories such as a pistol grip, an additional battery, or a UHF RFID back attachment for reading chips at a greater distance. The terminal's features also include a 13MP rear camera with autofocus and flash, a speaker, and two microphones, one of which is for ambient noise reduction.
Performance, connectivity and power of the Chainway C66 mobile terminal
The high performance of the Chainway C66 terminal is ensured by a Qualcomm Octa-Core 2GHz processor combined with 3GB of RAM and 32GB of storage. The device's communication equipment includes 4G networks, 802.11 (a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v) Wi-Fi standards, Bluetooth 5.1 and modern Vo-LTE technology, which enables voice and video calls to be transmitted over fast 4G/LTE networks. GPS/AGPS, GLONASS, BeiDou, and Galileo navigation systems provide precise positioning. Operating the terminal is made easy by a highly legible 5.5” touchscreen with a resolution of 1440 × 720 pixels and practical side buttons. You can use the device for more than 12 hours on a single battery charge (battery life depends on operating conditions). Using a standard adapter and USB cable, the battery charges in approximately 2.5 hours.
Specifications
Display and batteries
Features
Memory
Performance
Environmental properties
Dimensions and weight
| Code: | ITFter005 |
| Warranty: | 24 months |
