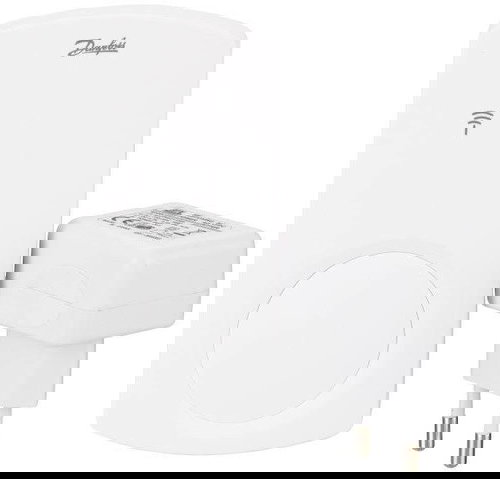

Danfoss Link RU

The Danfoss Link Radio Unit is an amplifier extending the range of the wireless transmission between the central control unit, thermostat transmitters and other connected components in the Danfoss Link system. The central control line supports the connection of up to three of these amplifiers connected in series. Several parallel amplifier chains can also be connected to the central unit. The principal function of the amplifier is to transmit signals between room thermostats, separate control and the central control unit. You can also use the amplifier in places where transmission interference occurs from radio interference, thick walls, metal objects and more.

Key Features

• Easy wireless transmission to the central control unit
• Power supply 230V
• Up to 3 amplifiers connected in series between the respective room thermostat and the central control unit

Additional Information:
Power Voltage:
230V AC
Transmission Frequency:
Two-way wireless transmission at 868.42MHz
Transmission Range:
Up to 30m in normal buildings
Transmission Power:
<1mW
Protection Class:
IP21
Network Cable Length:
3m
Weight:
100g
