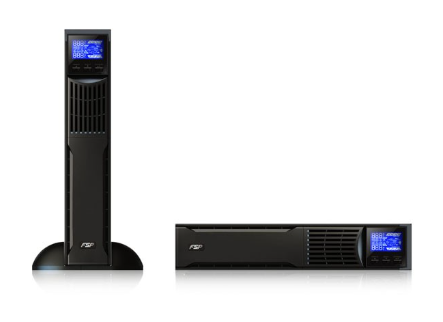

FSP UPS Eufo RT 3K 2U, 3000 VA/2700 W, line-interactive

The FSP UPS Eufo RT 3K 2U backup power supply with Line-interactive topology provides reliable power protection for servers and network devices in a 2U Rack/Tower design. This model offers an apparent power of 3000VA and a real power of 2700W, supplying power for 3 minutes at full load and 8 minutes at half load. The output voltage reaches 240V and the pure sine wave output ensures the safe operation of sensitive electronics. Its design allows for flexible vertical or horizontal installation, making it easy to integrate into various types of IT infrastructures.

Topology and performance

This backup power supply uses an advanced Line-interactive topology controlled by a microprocessor, which effectively responds to fluctuations in the electrical grid. The integrated AVR function with boost and buck modes automatically adjusts high or low voltage without needing to discharge the internal batteries. The device provides a pure sine wave output for compatibility with the sensitive power supplies of connected servers. At full load, the backup time is 3 minutes, while at half load, it supplies power for 8 minutes.

Battery and protection features

The power supply's design is mindful of continuous operation and easy maintenance in a demanding business environment. The system uses batteries that can be safely hot-swapped, eliminating the need to shut down connected systems during servicing. The user-friendly and easily rotatable LCD display clearly shows the current load status and battery capacity. Protection systems safeguard connected devices against damage from grid instability.

Battery and connectivity

Connection to management servers and power management is facilitated by the presence of USB and RS-232 communication interfaces, complemented by an optional SNMP slot for network management. Users can take advantage of programmable output sockets, which allow them to define power priorities and selectively disconnect less critical devices in the event of an outage. Clear monitoring of key operating parameters occurs in real time, simplifying the administration of the entire power branch in the data rack. The backup power supply offers a wide range of output connectors for flexible power distribution in the rack. The rear panel includes a total of 8 IEC 320 C13 output sockets and 8 IEC Jumpers connectors. The input power corresponds to the USA type A standard with an output voltage of 240V.
