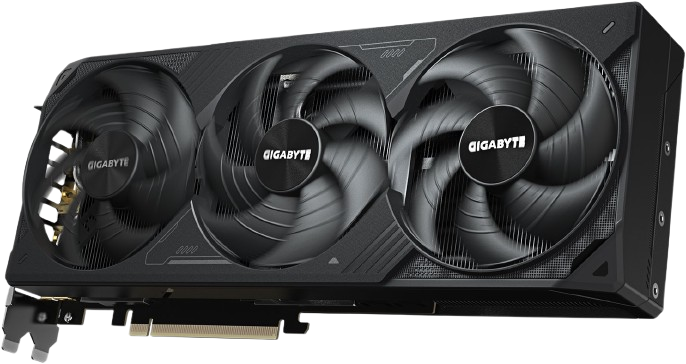

GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16G
GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16G
GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16G
The GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16G graphics card uses the NVIDIA Blackwell architecture with DLSS 4 technology and features a 256-bit bus. The card is designed in a small form factor according to the NVIDIA SFF-ready specification and reaches a clock frequency of 2617MHz. Thanks to its dual BIOS, you can choose between performance and quiet operating modes. The reinforced construction with a metal backplate ensures stability, while the modular graphics card bracket offers dozens of mounting options and prevents sagging. An automated PCB manufacturing process guarantees high-quality circuit boards without the sharp protrusions of soldered connectors.
GDDR7 / 16GB
Operating memory
PCIe 5.0 x16
Bus interface
1× 16-pin
Additional power
Blackwell
Chip architecture
850W
Recommended source power
Key features of the GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16G graphics card
- NVIDIA Blackwell architecture with DLSS 4 and Multi-Frame Generation for maximum AI performance and neural rendering
- 16GB GDDR7 operating memory with a 256-bit bus and a clock frequency of 2617MHz
- WINDFORCE cooling system with Hawk Fans increasing air pressure by 53.6% and volume by 12.5%
- Large vapour chamber with composite copper heat pipes and professional server-grade thermal gel
- NVIDIA SFF-ready small form factor design with reinforced metal construction
- Dual BIOS for switching between performance and quiet modes
- Modular graphics card bracket with dozens of mounting options to prevent sagging
WINDFORCE cooling with Hawk Fan technology
The WINDFORCE cooling system combines several advanced technologies for efficient heat dissipation. It uses a professional server-grade thermal gel, innovative Hawk Fans with alternate spinning, composite copper heat pipes, a large vapour chamber, and screen cooling. The Hawk Fans feature a unique blade design inspired by the aerodynamics of an eagle's wings, which reduces air resistance and noise while increasing air pressure by up to 53.6% and air volume by 12.5%. Graphene nano lubricant extends the life of the fans' sleeve bearings by 2.1×, bringing it close to the lifespan of ball bearings while remaining quieter. The 3D Active Fan function provides semi-autonomous cooling – the fans stop during low load or low-power gaming.
Performance and reliability with NVIDIA Blackwell architecture
The NVIDIA Blackwell architecture introduces fifth-generation Tensor Cores with maximum FP4 AI performance and DLSS 4 with Multi-Frame Generation. New streaming multiprocessors are optimised for neural shaders, and fourth-generation ray tracing cores handle Mega Geometry processing. NVIDIA Reflex 2 technology with Frame Warp ensures a fast response in games. Complete ray tracing with neural rendering provides photorealistic graphics. The card supports NVIDIA G-SYNC, which enables smooth visuals, and includes NVIDIA Studio tools for creators – including NVIDIA Broadcast and the ninth-generation NVIDIA Encoder with AI video enhancement. Ultra Durable certification includes top-quality metal chokes, low ESR capacitors, 2oz copper PCB, and low RDS(on) MOSFETs. The GIGABYTE CONTROL CENTER software lets you adjust the clock frequency, voltage, fan mode, and power limit in real time.
Technical specification
- Monitor connection: DisplayPort 2.1b, HDMI 2.1b
- Dimensions: 304 × 50 × 126mm
- Special features: NVIDIA DLSS 4.0
GeForce RTX 50 series graphics cards
The ultimate platform for gamers and creators
5th generation Tensor Cores
Maximum AI performance with FP4 and DLSS 4
New streaming multiprocessors
Optimised for neural shaders
4th generation RT Cores
Perfect for Mega Geometry
Cutting-edge GPUs
NVIDIA Blackwell architecture
AI-enhanced graphics and performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-winning responsiveness
NVIDIA Reflex 2 with Frame Warp
Lifelike graphics
Full ray tracing with neural rendering
Digital humans and AI assistants
NVIDIA ACE
Accelerate your creativity
NVIDIA Studio tools and technology for creators
Enhance your voice and video with AI
NVIDIA Broadcast and 9th generation NVIDIA Encoder
Performance and reliability
NVIDIA App with Game Ready and Studio DriversSpecifications
Dimensions
Chip
Performance & usage
Memory
Frequency
Interface
Technology
Cooling system
Consumption
| Code: | EGr58ws1 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
