GIGABYTE UD1000GM PG5 V2

-5 % off new 2,239,- New 2,359,-

GIGABYTE UD1000GM PG5 V2

GIGABYTE UD1000GM PG5 V2 computer power supply.

No computer or workstation will ever function correctly without an adequate power supply. That's why you should never underestimate the importance of choosing this component. Besides providing the correct power to your PC, a good PSU can extend the lifespan of your components and help you save energy. The GIGABYTE UD1000GM PG5 V2 1000W ensures the safe conversion of voltage from the electrical circuit to the individual branches that power your connected components. This 1000W ATX power supply is ideal for the highest-performance computers. The GIGABYTE PSU features a 120mm fan that reduces high temperatures and contributes to its long life. You can instantly cut the power supply using the built-in switch. Every power supply on the market has a label showing how efficiently it handles the input current. Thanks to its 80 PLUS Gold certification, it achieves an efficiency of up to 90%. The detachable cables prevent a confusing mess of wires inside your computer case.

Key features of the GIGABYTE UD1000GM PG5 V2 1000W PC power supply

  • The ATX format is one of the most widely used formats today
  • The computer power supply boasts 80 PLUS Gold certification, representing an efficiency of up to 90%
  • Thermal speed control protects the GIGABYTE UD1000GM PG5 V2 power supply from significant temperature changes
  • It also offers 8 Serial ATA connectors for connecting hard drives, SSDs, or DVD drives
  • PC protection types: overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection (OCP), overload protection (OPP), short circuit protection (SCP), and overheating protection (OTP)

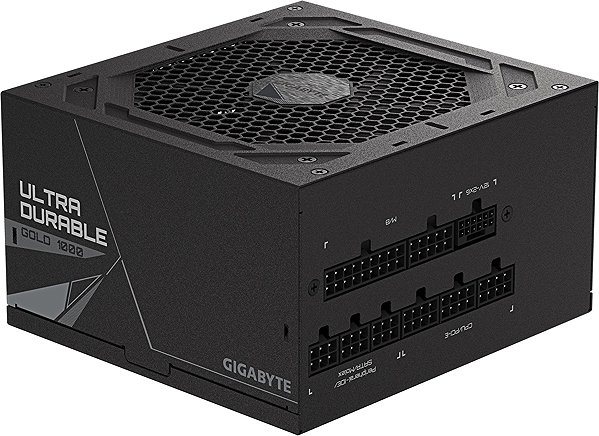

GIGABYTE UD1000GM PG5 V2 computer power supply.

Specifications

Performance and format

Performance 1,000 W
Format ATX
ATX version 3.1
Modularity Full

Equipment

Features and functions Detachable cables, Thermal speed control, Power switch, Zero RPM mode
Type of protection Overvoltage protection (OVP), Undervoltage protection (UVP), Overcurrent protection (OCP), Over-power protection (OPP), Short-circuit protection (SCP), Over-temperature protection (OTP)

Efficiency

Certification 80 PLUS Gold

Connectors

Connectors ATX 24pin, CPU 8pin / 4+4pin, Floppy 4pin, Molex 4pin, PCI-E 8pin / 6+2pin, SATA 15pin, 12V-2x6 16pin
Number of EPS/CPU 4+4pin 2
Number of PCI Express 16-pin 1 pc(s)
PCI Express 8pin / 6+2pin 4pc(s)
Number of serial ATA 15-pin 8pc(s)
Number of molex HDD 4-pin 3pc(s)
Number of molex FDD 4-pin 1pc(s)

Cooling system

Fan size 120 mm

Dimensions

Width 150 mm (15 cm)
Height 86 mm (8.6 cm)
Depth 140 mm (14 cm)
Code:  GBz033
Warranty: 60 months
