HIKMICRO Thermal imager ECO Compact HM.308200403
Price Guarantee
Installment calculator
4,9%
interest
from 138,- monthly
HIKMICRO Thermal imager ECO Compact HM.308200403
The HIKMICRO ECO handheld thermal imaging camera is suitable for basic inspection of temperatures in industrial plants, halls, etc. The instrument features a 2.4" LCD display and a 96×96 thermal resolution infrared sensor with the option of activating the super-resolution function, which increases the resolution of images up to 240×240 pixels. The thermal imager can measure temperatures from -20 to 550°C and features automatic hottest, coldest and central point tracking on the display. By accurately measuring and visualising temperature differences, the camera can easily detect potential problems such as heat loss around windows or unwanted overheating of electrical installations and components. The HIKMICRO ECO has an internal memory of 4 GB and an integrated rechargeable battery with a battery life of up to 8 hours. Includes carrying case and USB-A/C to USB-C cable.
Key features of the HIKMICRO ECO thermal imager
- The compact HIKMICRO ECO thermal imager is designed for basic temperature control in industrial plants, halls, etc.
- The camera fully replaces the higher series of conventional pyrometers and offers all the advantages of a thermal camera
- Infrared sensor with 96 × 96 thermal resolution (9,216 pixels)
- Measurement results are displayed on a 2.4" LCD display with 240 × 320 pixel resolution and a refresh rate of 25 Hz
- Automatic tracking of specific points (hottest, coldest and central)
- Alarm function - minimum or maximum temperature underlining
- The HIKMICRO ECO has an internal memory of 4 GB and can hold up to 30,000 images
- Integrated rechargeable battery with up to 8 hours of battery life

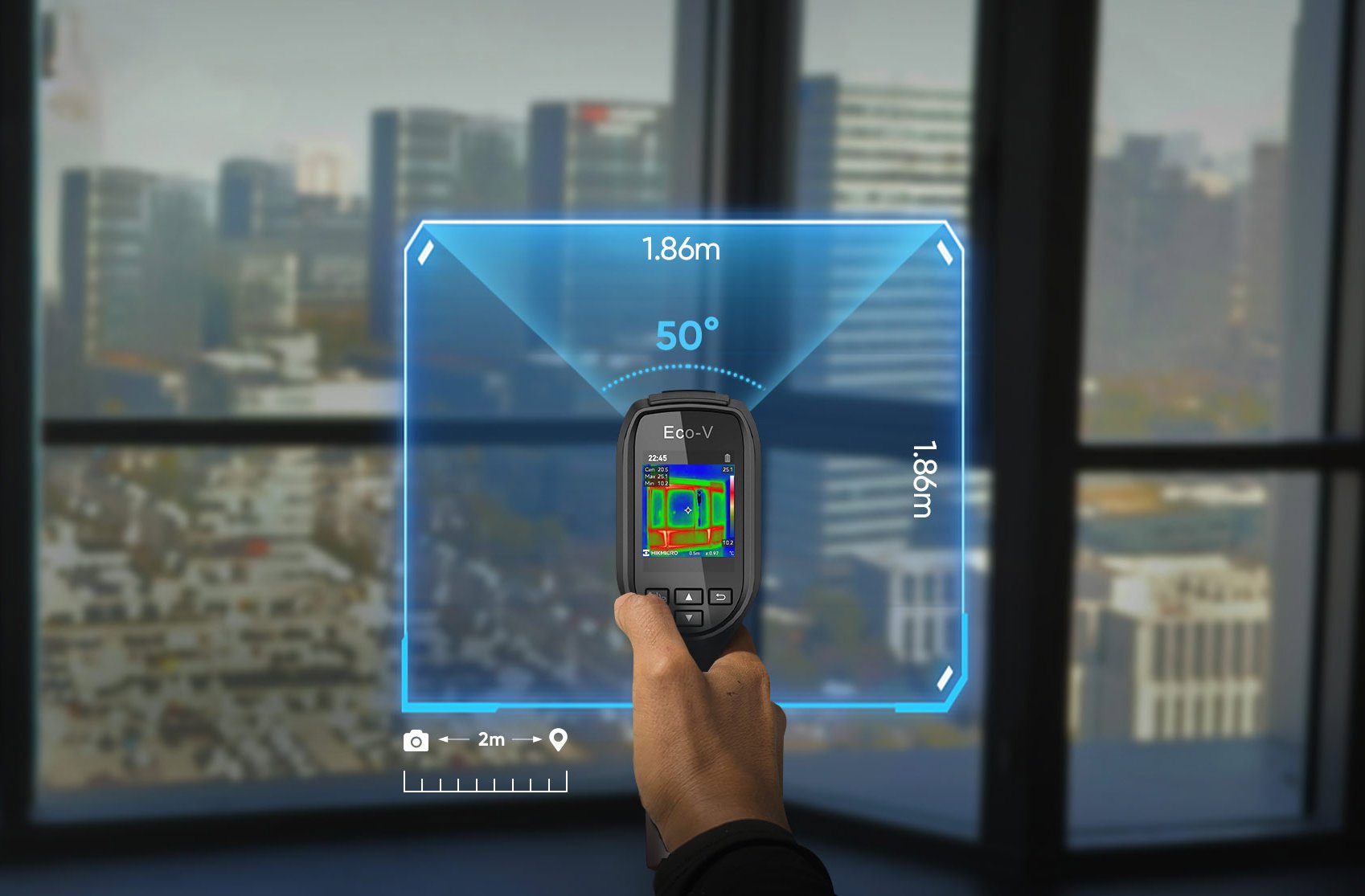

The HIKMICRO ECO thermal imaging camera has a wide-angle lens
With the HIKMICRO ECO thermal imaging camera you can comfortably scan wider areas. Its 50° wide-angle lens has a range of 1.86 metres and can easily detect potential problems such as air or water leaks or insulation issues. The infrared detector has a thermal resolution of 96 x 96, which is increased to 240 x 240 (57,600 pixels) thanks to HIKMICRO SuperIR image enhancement technology. The measurement results can be viewed immediately on the 2.4" LCD display.
Precise measurement with automatic tracking of selected points
With full-screen radiometric image capture support and automatic hot, cold and central point tracking, you can instantly identify temperature anomalies. The camera accurately measures temperatures from -20 to 550 °C with an accuracy of up to +/-2 °C or +/-2% of the measured value, which is sufficient performance for most applications. There is also a thread for attaching the camera to a tripod and a Class II laser that makes it easy to focus the sensor on specific areas.
Rugged and durable camera with long life
The HIKMICRO ECO thermal imaging camera is suitable for use in more demanding conditions, for example in production halls, etc. It has a rugged design with IP54 rating and can withstand drops of up to 2 meters (verified by stress tests). Thanks to the built-in rechargeable Li-Ion battery with a capacity of 3,350 mAh and an automatic shut-off function at intervals of 5, 10 or 20 minutes, the camera also offers a very long battery life (up to 8 hours).
HIKMICRO ECO offers 7 colour palettes
A total of 7 selectable colour palettes make it easy to interpret the measurement results, enhancing the colour contrast between high and low temperature. The HIKMICRO ECO thermal imaging camera has the following preset colour templates: White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion & Above Alarm.
Specifications
Imagining
Temperature range
Display
Memory
Connectivity
Equipment
Dimensions and weight
Power Supply
Operating temperature
| Code: | WSaaa4081 |
| Warranty: | 24 months |
| Manufacturer information |
Microimage Europe B.V., Dirk Storklaan 3, 2132PX Hoofddorp, Nizozemsko, +420234076118, [email protected]
|
