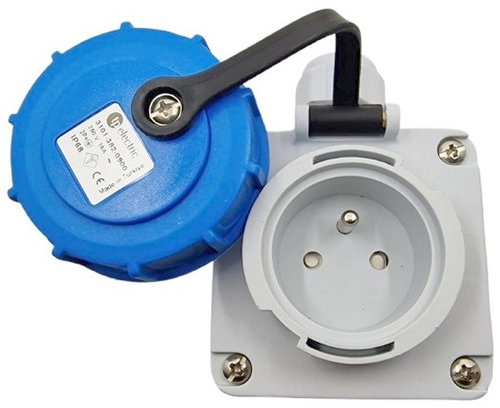

TP electric 1 × 16 A / IP68 - Wall socket, with safety shutter
TP electric 1 × 16 A / IP68 - Wall socket, with safety shutter
The TP electric wall socket is designed for reliable power supply in demanding operations and outdoor environments. Thanks to its high IP68 rating, it is protected against dust ingress and can withstand permanent immersion in water. The socket operates with a rated current of 16A and a voltage of 250V. An integrated safety shutter increases handling safety by preventing accidental contact with live parts. A screw cap with a rubber seal protects the contacts and ensures a secure connection.
Key features of the TP electric 1 × 16A / IP68 wall socket with safety shutter
- Designed for surface mounting with screws
- Operates at a rated voltage of 250V and a current of 16A
- Designed for three-wire connection
- Equipped with a safety shutter to protect against contact with live parts
- Screw cap with a rubber seal increases durability
- IP68 rating protects against dust and water
- Made of plastic
- Dimensions 105 × 75 × 71mm (H×W×D)
Durability and safety in demanding conditions
The socket is engineered for safety and durability in challenging conditions. Its IP68 rating means it is completely dustproof and protected against the effects of permanent immersion in water, making it suitable for outdoor installations or damp industrial areas. An integrated safety shutter provides protection against accidental contact with live parts. A screw cap with a rubber seal supports a firm and sealed connection, protecting the internal contacts from dirt and moisture even when nothing is connected.
Specifications
Type
Material
Features
Dimensions
Colour
| Code: | TPzas08 |
| Warranty: | 24 months |
