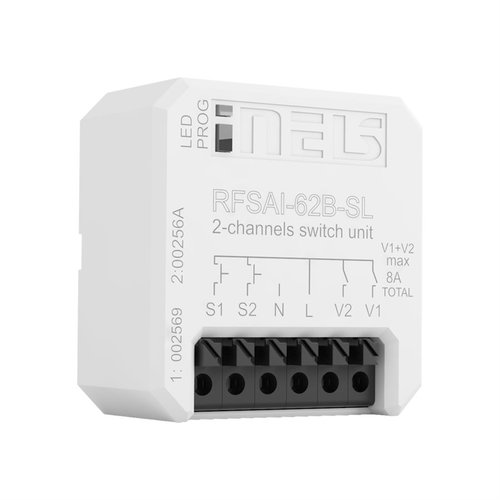

iNELS Switching element, 2-channel RFSAI-62B-SL

The iNELS RFSAI-62B-SL switching element is a universal unit designed for controlling lights and appliances, offering up to two output channels with a total load of up to 2000 W. It allows connection of existing buttons in the wiring and also supports combination with wireless controllers, detectors or iNELS Wireless system elements. This makes it easy to become part of a smart home as well as conventional installations. The BOX design allows mounting directly into the installation box, ceiling or housing of the controlled appliance. Installation is quick and easy thanks to screwless clamps and built-in neutral and phase connections. The iNELS RFSAI-62B-SL supports pushbutton, pulse relay and timer functions with a 2-60 minute delay, providing greater flexibility in use. A range of up to 200 m in open areas and the repeater function ensure reliable operation even in larger buildings.

Exit:
2 × switching, 8 A (total 2000 W)
Power supply:
AC 230 V (50-60 Hz)
Communication protocol:
RFIO2 (bidirectional)
Dosah:
up to 200 m (open space)
Functions:
push button, impulse relay, timer (2-60 min), status memory, manual control
Number of channels:
up to 25
Performance:
BOX, screwless clamps
Dimensions:
44 × 43 × 22 mm (h × w × d)
