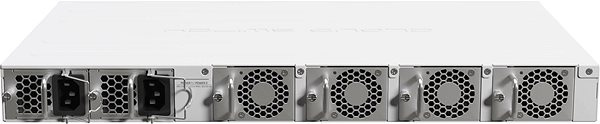

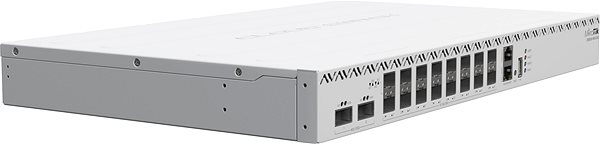

Mikrotik CRS518-16XS-2XQ-RM
45,990,-
Mikrotik CRS518-16XS-2XQ-RM
Mikrotik managed L3 switch is designed for deployment in enterprise and data networks. It features sixteen 25Gb/s SFP28 ports and two 100Gb/s QSFP28 ports to connect servers and backbone elements. An ARM 64-bit AL73400 processor and 16GB RAM power the device, ensuring smooth operation of the RouterOS v7 operating system. Total switching capacity reaches 1200Gb/s with a packet forwarding rate of 600Mpps. The device also features dual redundant power supplies.
Key features of the Mikrotik CRS518-16XS-2XQ-RM managed switch
- Designed for L3 network management in enterprise and data centres
- Equipped with sixteen 25Gb/s SFP28 ports, two 100Gb/s QSFP28 ports, one RJ-45 port and one USB 2.0 port
- Switching capacity of 1200Gb/s and forwarding rate of 600Mpps
- Powered by an ARM 64-bit AL73400 processor and 16GB RAM
- Supports features such as VLAN, LACP, MLAG, IGMP and MLD snooping
- Includes firewall and static routing support
- Ready for deployment in IPv6 protocol networks
- Dual redundant power supply with 100–240V AC input voltage and 60W maximum power consumption
- Runs on the RouterOS v7 operating system
- Operating temperature from -40°C to +70°C
- Dimensions of 44.5×443×265mm (H×W×D)
- Weight of 4240g
Whole description
Specifications
Type
Switch type
Managed
Design
Rack
Use
Company
Functions
Switching layer
L3
Advanced network functions
VLAN, LACP line aggregation, MLAG
Snooping
IGMP, MLD
Management and security
Firewall
Ports
QSFP28
2 ×
SFP28
16 ×
RJ-45
1 ×
SFP
18 ×
USB 2.0
1 pc(s)
Number of LAN ports
Number of LAN ports with 100 Mbit speed
1
Number of LAN ports with 10 Gbit speed
18
PoE properties
Performance
95 W
Routing
Routing
Static routing
Features
Power Supply
From the network
Features
IPv6 Ready, Redundant power supply
Speed
Switching capacity
1,200 Gb/s
Packet capacity (64B packets, in million of packets)
600 Mpps
Dimensions
Width
443 mm
Height
44.5 mm
Depth
265 mm
Material
Body material
Metal
Operating temperature
Minimum operating temperature
-40 °C
Maximum operating temperature
70 °C
Weight
Weight
4,240 g
All parameters
| Code: | Mikro24019 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
SIA Mikrotīkls, Aizkraukles iela 23, Riga, LV-1006 LATVIA, [email protected], +371-6-7317700
|
