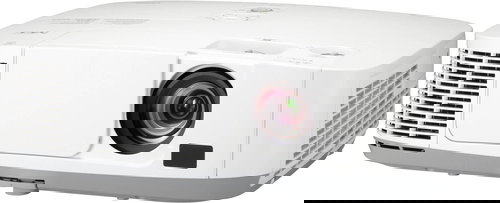

NEC P451W

This powerful LCD projector with a white finish and native WXGA (1280 x 800) resolution is suitable for medium to large conference rooms or classrooms. It can also serve well in other interiors that require semi-professional projection quality and high brightness.

Compact wide-format projector

The NEC P451W projector is recommended for screen sizes of up to 140”. Thanks to the compact design, large optical zoom of 1.7x, vertical lens shift, and vertical and horizontal keystone correction, it fits easily into any room. Keystone correction adjusts the display when the projection is slightly tilted.

Daytime projection

This model delivers a high 4000:1 contrast and remarkable brightness of up to 4500 ANSI lumens. This means that you can hold presentations even in bright and well-lit rooms and everything will remain clearly visible. Visibility can be also improved via manual wall colour correction.

Long lamp life

The special Eco mode was designed to provide greater efficiency, extend lamp life and, of course, reduce energy consumption. The lamp life is 4000 hours in normal more, solid 3500 hours in high brightness mode, and a whopping 6000 hours in Eco mode .

Virtual remote control

With this model you can enliven your multimedia presentations with 3D display and sound projection using the built-in 16W speaker. The virtual remote control function allows you to operate the projector from a computer through a VGA cable. This means that in addition to the included remote control you can also adjust video and audio settings or turn the projector on/off from your desktop or notebook. By downloading the software NaViSet Administrator 2, which is free, you get the opportunity to manage all display devices from one place.

Connective equipment

Thanks to its USB 2.0 port, you can project files directly from your external storage or control the projector with a mouse. You can also connect the projector using a standard computer cable with D-Sub (VGA) connector or a pair of digital HDMI connectors. Aside from the remote, the projector is also equipped with serial RS-232 interface and a built-in network card.

Specifications:

Views:
Native resolution: WXGA (1280 x 800)
Supported resolution: up to 1920 x 1200
Luminosity: 4500 ANSI lumens
Contrast: 4000: 1
Keystone: manual H/V +/- 30°
Lens: F = 1.7-2.2, f = 17.4-29 mm
Projection factor: 1.3 to 2.2: 1
Audio: 1 x 16 (mono)
Frequency: horizontal: 15-100 kHz (RGB: 24 kHz); vertical: 50-120 Hz

Remote control:
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select

Additional features:
Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Contrast Ratio 4000:1 with Iris; Control ID Function; DICOM Simulation; Direct Power-Off Function; Geometric correction by software; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Lens Cover; Lens Shift, vertical +60 %; Magnify; Manual Wall Color Correction; Mouse Control with USB Display; NaViSet Administrator 2; Off-Timer; Optional User Logo; OSD with 27 languages; Password Security System; Pincushion Correction; Plug&Play W-LAN Option; Quick Start; Remote Desktop; Source Select with Beep Function; Test Pattern; Timer-Function; Unique Power Saving Functions; USB Display including Audio; USB Viewer; Virtual Remote for direct PC control; Windows 7 Network Projector; Windows Media Connect Function; Windows Network Driver

Connectivity:
ComputerAnalog Input: 1 x Mini D-sub 15 pin/Output: 1 x Mini D-sub 15 pin

HDMI: Input: 2x HDMI™ (V.1.3 with Deep Color, Lip Sync) with HDCP

Video: Input: 1x RCA

S-Video Input: 1x Mini DIN 4-pin

Audio Input: 1 x 3.5 mm Stereo Mini Jack; 1x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video and S-Video; 2x HDMI audio/Output: 1x 3.5 mm Stereo Mini Jack (variable)

Control: Input: 1 x D-Sub 9 pin (RS-232) (male)

1 x RJ45 LAN

1 x USB Type B; 2 x Type A (USB 2.0)

Video signals: NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

Packaging contents:
Security sticker
IR Remote Control (RD-448E)
Mini D-SUB signal cable (1.8 m)
Power cable (1.8 m)
Projector
Quick Setup Guide
Utility software
User Manual
