Name: PHONIC AM220P
Brand: PHONIC
SKU: PHCa08
Availability: Discontinued
Rating: 5 (0 reviews)

All from PHONIC

1 rating

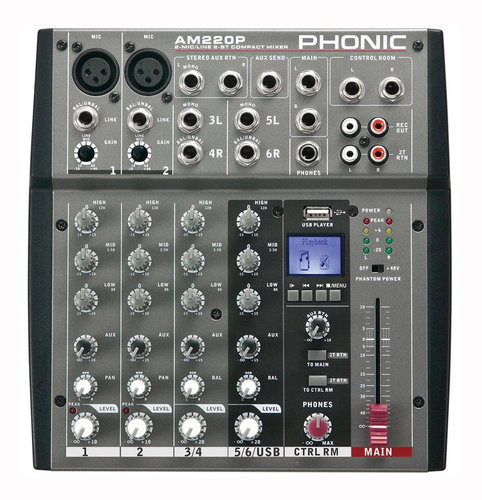

PHONIC AM220P - Mixing Desk - Main image

Show alternatives

Product accessories

Manufacturer website

Don't like the alternatives?

Choose from the full offer

Mixing Boards Mixing Boards PHONIC

PHONIC AM220P

The Phonic AM220P mixing console uses ultra-low noise preamplifiers for high quality sound. A multi-band equalizer is available on the mono channels. An LED indication provides an overview of the headphone and main output volume.

Key Features of the Phonic AM220P Mixer

2 symmetrical Mic/Line inputs with 3-band EQ
2 stereo inputs with 3-band EQ
1 stereo AUX return
USB MP3 and WAV file player
Post-fader EFX send on each input
The Phonic AM220P mixing console has +48V phantom power
Phonic AM220P has peak and VU meter
Peak indicators on each mono input channel
2T RTN routable to Main or Control Room
Stereo EFX send control on each channel
Symmetrical master output with 60mm faders

Specifications

Type

Type Analogue

Number of channels 6 ×

Effects No effects

Channel properties

Equalizer 3 ×

Pan/bal 4 ×

Features and functions

Features and functions Phantom power supply + 48V, Tension potentiometers, USB flash drive input

Inputs

Jack 6.3 mm 6 ×

XLR 2 ×

Outputs

Jack 6.3 mm 6 ×

RCA 2 ×

Headphone output 6,3mm Jack
