PNY GeForce RTX 5080 Overclocked Triple Fan

38,790,-

PNY GeForce RTX 5080 Overclocked Triple Fan

Are you looking to buy a high-performance graphics card that can handle even the latest gaming titles with ease? Then this dedicated PNY graphics card is for you, complete with 16GB of memory running at 30000MHz. With such memory, a 256-bit bus, and a core frequency of 2295MHz, you'll get a smooth picture no matter what game you're playing on full detail. The graphics card, with its PCI Express x16 5.0 interface, offers a total of 4 outputs for connecting to a monitor. These are DisplayPort 2.1b and HDMI 2.1b. The active cooler ensures remarkably low temperatures even under heavy load.

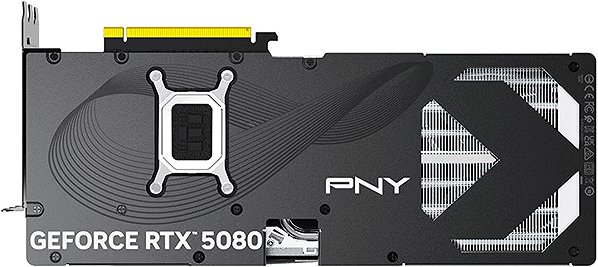

PNY GeForce RTX 5080 Overclocked Triple Fan graphics card.
PNY GeForce RTX 5080 Overclocked Triple Fan graphics card.

Key features of the PNY GeForce RTX 5080 Overclocked Triple Fan gaming graphics card

  • The RTX 5080 graphics chip uses 4nm technology
  • The PNY graphics card has connectors for monitors with DisplayPort 2.1b and HDMI 2.1b
  • Developed for playing the latest gaming titles
  • Maximum power consumption is 360W
  • The power supply for the graphics card must be at least 850W
  • Fans of modern technology will be delighted by its support for virtual reality
  • NVIDIA GeForce RTX 5080 has a total memory capacity of 16GB
  • Graphics card cooling type: active
PNY GeForce RTX 5080 Overclocked Triple Fan graphics card.

Cooling and dimensions of the PNY gaming graphics card

The active cooler type is well-known for its proven method of maintaining low temperatures. The triple-slot cooler, equipped with 3 fans, adjusts its overall cooling based on the current load. Before you place your order, you should check whether it will fit into your PC case. The PNY GeForce RTX 5080 Overclocked Triple Fan has dimensions of 59.69 × 328.67 × 137.66mm (H×W×D). This graphics card is suitable for PC cases from Mini Tower size upwards.

Specifications

Dimensions

Width 328.67 mm
Height 59.69 mm
Depth 137.66 mm

AI

Total number of TOPS 0

Chip

Chip manufacturer NVIDIA GeForce
Model designation RTX 5080
Graphics processor GB203
Chip architecture Blackwell
Number of stream processors 10,752×
Production technology 4 nm

Performance & usage

Use Game playing

Memory

VRAM capacity 16 GB
Memory type GDDR7
Bus width 256-Bit

Frequency

Core frequency 2,295 MHz
Core clock speed (Boost clock) 2,730 MHz
Memory frequency 30,000 MHz (30 GHz)
Effective memory clock (bandwidth) 30 Gbps

Interface

PC connection PCI Express x16 5.0
Bus interface PCIe 5.0 x16
Monitor connection DisplayPort 2.1b, HDMI 2.1b

Technology

Special graphics card features NVIDIA DLSS 4.0
DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Three slots
number of fans 3 ×

Consumption

TDP 360 W
