QNAP QSW-M2106R-2S2T

QNAP QSW-M2106R-2S2T

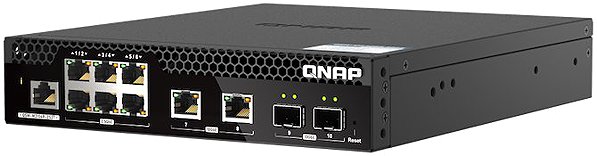

QNAP QSW-M2106R-2S2T managed switch is designed for managing and expanding corporate network infrastructure. It offers a combination of six 2.5GbE ports and four 10GbE ports, which include both RJ-45 and SFP+ interfaces for connecting devices with different speeds. Layer 2 features such as VLAN, LACP, and QoS provide effective management of network traffic. The total switching capacity reaches 110Gbps.
Key features of the QNAP QSW-M2106R-2S2T managed switch
- Designed for L2 network management in corporate environments
- Equipped with six 2.5GbE RJ-45 ports and four 10GbE ports (2× RJ-45, 2× SFP+)
- Switching capacity of 110Gbps
- Support for L2 features including VLAN, QoS, and LACP link aggregation
- IGMP snooping for optimised multicast traffic
- Network security via ACL and network loop detection
- Management via web interface
- Half-rackmount design
- Operating temperature range from 0°C to +40°C
- Dimensions of 44×207×249mm (H×W×D)
- Weight of 1600g
Network management and security
QNAP QSW-M2106R-2S2T switch offers L2 features that enable network traffic management. Segment the network logically using VLANs to increase security and clarity. The Quality of Service (QoS) feature prioritises data flows for delay-sensitive applications. Link aggregation (LACP) combines multiple ports into a single logical channel to increase throughput. IGMP snooping support optimises multicast traffic transmission and reduces unnecessary network load. Define security rules using Access Control Lists (ACL), while integrated network loop detection helps prevent outages.
Specifications
Power outlet type
Type
Functions
Ports
Number of LAN ports
Features
Speed
Dimensions
Material
Operating temperature
Weight
| Code: | Qnap25043 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
QNAP GmbH, Karl-Arnold-Straße 26, 47877 Willich, +492154884280, [email protected]
|
