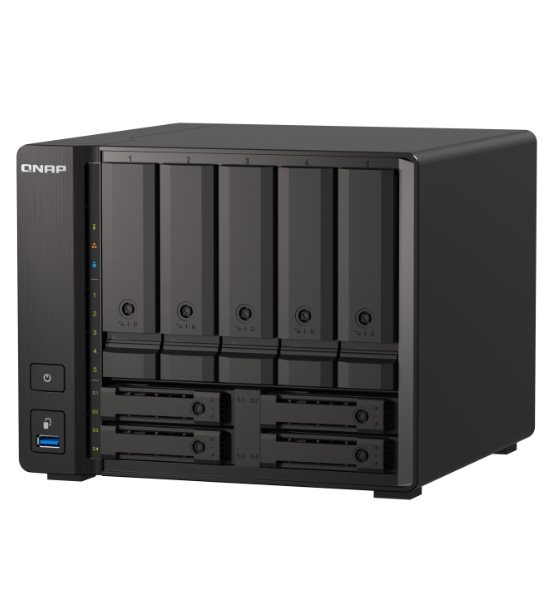

QNAP TS-h973AX-8G
Increase your business productivity with the QNAP TS-h973AX-8G data storage
The QNAP TS-h973AX-8G data storage offers a total of nine bays for a high-capacity hybrid storage infrastructure in a compact design. Sufficient performance is delivered by a quad-core AMD Ryzen V1000 series processor (4 cores, 8 threads, 2.2GHz) and 8GB of RAM. You can fit the storage with five 3.5" SATA 6Gb/s drives, two 2.5" U.2 NVMe SSDs and two 2.5" classic SSDs.
One 10GBASE-T Multi-Gig port and two 2.5GbE LAN ports.
Enterprise-level backup centre.
All-in-one solution for hosting virtual machines and containers.
Hybrid cloud applications work with cache space.
USB expansion units
(TR series JBOD).
QNAP TS-h973AX-8G offers top performance
The data storage can benefit from SSD caching to support IOPS-intensive applications. The ZFS-based QuTS hero operating system ensures data integrity and supports block-based inline data deduplication and compression, near-unlimited snapshots, and real-time SnapSync. The QNAP TS-h973AX-8G effortlessly meets the needs of mission-critical file servers, virtualisation servers, collaborative video editing, or efficient data backup and recovery applications.
Certified for virtualisation
The QNAP TS-h973AX-8G supports virtualisation, which increases IT management efficiency and the availability of IT applications and resources. QNAP NAS provides a high-performance, reliable and affordable storage solution for virtualisation applications such as VMware vSphere, Microsoft Hyper-V and Citrix XenServer.
The ideal device for optimal I/O and low latency
The QNAP TS-h973AX-8G has four 2.5" SSD slots, with the first two slots supporting high-performance U.2 NVMe PCIe Gen 3 ×4 SSDs as well as cost-effective SATA 6Gb/s SSDs. The U.2 NVMe PCIe Gen 3 ×4 drives are the optimal solution for latency-sensitive applications. These drives provide up to 32Gb/s of bandwidth to deliver optimised performance and efficiency.
QNAP TS-h973AX-8G enables efficient transfer of large files and video editing
The QNAP TS-h973AX-8G data storage is equipped with one 10GBASE-T Multi-Gig and two 2.5GbE RJ45 ports, providing out-of-the-box support for high-speed networks. It is also compatible with port trunking and failover features to strengthen your network infrastructure.
Key features
of the QNAP TS-h973AX-8G
- QuTS hero operating system enhances NAS performance and data integrity
- Real-time SnapSync
- Inline deduplication, compression and compaction
- The QNAP TS-h973AX-8G has nine drive bays
- Supports U.2 NVMe SSD and 10GbE/2.5GbE connectivity
- AES-NI encryption support
- The storage capacity of the TS-h973AX can be expanded with USB expansion units
QNAP TS-h973AX-8G has the QuTS hero operating system
QuTS hero combines the app-based QTS with a 128-bit ZFS file system. This ensures flexible storage management, comprehensive data protection and optimised performance to handle the complexity and performance demands of modern IT systems. From storage management to virtualisation and collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Whole description
Specifications
Use
Use
Home, Company
Design
Tower
Storage
Drive configuration
Disc-free
Number of drive bays (2.5" and 3.5")
9 ×
RAID supported
RAID 0, RAID 1 (reflection), RAID 5, RAID 6, RAID 10 (1+0), RAID 50 (5+0), RAID 60 (6+0)
Performance
System memory (RAM)
8 GB (8,192 MB)
Memory type
DDR4
RAM memory expandable to
64 GB (65,536 MB)
Number of RAM memory slots
2 ×
Number of populated memory slots
1 ×
Processor frequency
2.2 GHz
Processor
AMD Ryzen Embedded V1000
CPU architecture
x86
Supported disks
Compatible disc type
2.5" SATA SSD, 2.5" SATA HDD, 3.5" SATA HDD
Software and services
Supported services
Media server (DLNA), File Sharing (SAMBA, HFS, CIFS), Cloud server, FTP server, Web server, iSCSI, PHP
NAS operating system
QuTS hero
Backup
Backup and recovery
Snapshots, Cloud backup
Power Supply
Power supply type
External
Power supply output
120 W
Interface
eSATA
9 ×
LAN
3 ×
USB 3.2 Gen 2 (10 Gb/s)
4 ×
2.5GbE LAN ports
2 ×
10GbE LAN / SFP+
1 ×
Features and functions
Features
GDPR ready
Functions
Equalizer, Virtualization
Noise
22.9 dB
Max. operating temperature
40 °C
Minimum operating temperature
0 °C
Consumption
Stand-by energy consumption
41.2 W
Typical power consumption
55.41 W
Dimensions and weight
Depth
224.1 mm
Height
182.7 mm
Width
224.6 mm
Weight
3.52 kg
Package contents
Package contents
Add-on pack, Power adapter, RJ-45 network cable, Manual
All parameters
| Code: | QL2021mv060 |
| Warranty: | 36 months |
