Shelly RC Snubber
129,-
Shelly RC Snubber

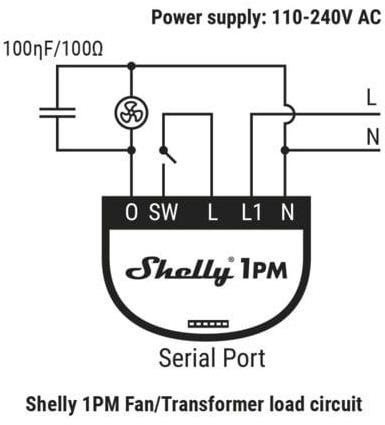

The Shelly RC Snubber is an energy absorbing circuit used to suppress voltage spikes caused by circuit inductance when an electrical or mechanical switch is opened. It consists of a resistor (R) and a capacitor (C) connected in series and effectively mitigates voltage spikes by providing a short-term alternative current path around the switching device. Used for all Shelly relays, that restart when inductive loads are switched on, like fans, motors, of the cylinder or that, that cause voltage spikes when they're switched on.
Key Features of Shelly RC Snubber Switch
- Protecting Shelly equipment against voltage spikes
- Energy Absorbing Circuit (RC Snubber)
- Composed of a resistor (R) and a capacitor (C) connected in series
- Provides an alternative current path during switching
- Suitable for all Shelly relays
- Use with induction loads: fans, motors, cylinders
- Ensures safe discharge of inductive loads
- Improves device performance and reliability
Whole description
Specifications
Connectivity
Supported OS
Android, Windows, iOS
Power supply
Power plug
Application language
English, Czech, German, Slovak, Hungarian
Use
Expandability
Open system
Operation
Standalone
Area of use
Electrical installation
Location
Location
Universal
Usage
Usage
Appliances
Dimensions and weight
Height
27 mm
Width
17 mm
Length / Depth
8 mm
All parameters
| Code: | Shell24045 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
