Teltonika WiFi Access Point TAP400
Teltonika WiFi Access Point TAP400
The Teltonika TAP400 WiFi Access Point is a powerful indoor access point designed for small and medium-sized businesses that require fast, reliable wireless coverage with simple, centralised management. The device fully supports the modern Wi-Fi 6 802.11ax standard and operates as a dual-band access point in the 2.4GHz and 5GHz bands. The total wireless transfer speed reaches up to 2978Mb/s, which ensures smooth operation even under heavy network load. It provides advanced WPA2-Enterprise and WPA3 encryption. It's also lightweight, weighing just 285g.
Dual-band
Type
WiFi 6
WiFi type
2978Mb/s
WiFi transfer speed
Key features of the Teltonika TAP400 WiFi Access Point
- Supports modern 802.11b, 802.11g, 802.11n and 802.11ax wireless standards
- Offers speeds of up to 576Mb/s on the 2.4GHz band and up to 2402Mb/s on the 5GHz band
- Uses Wi-Fi Mesh, Power over Ethernet and MU-MIMO technologies
- Designed for indoor use
- WPA2-Enterprise and WPA3 encryption
- Connectivity provided by one 2.5GbE RJ45 ethernet port
- Three internal non-detachable antennae with 5dBi gain
Wi-Fi connectivity and speed
The Teltonika TAP400 WiFi Access Point uses modern 802.11b, 802.11g, 802.11n and 802.11ax wireless standards. Three internal non-detachable antennae with 5dBi gain ensure stable signal propagation. MU-MIMO technology optimises transmissions for multiple connected users simultaneously, increasing the overall efficiency of the network. The speed on the 2.4GHz band reaches up to 576Mb/s, while on the 5GHz band it is up to 2402Mb/s.
Network functions and Mesh technology
This access point supports Wi-Fi Mesh technology for easy expansion of wireless coverage and a Fast Roaming function for a seamless transition of users between nodes without dropouts. Administrators can configure up to 8 separate SSIDs to effectively separate corporate and guest traffic. The Teltonika RMS central management system enables remote configuration, monitoring and real-time troubleshooting, including network topology visualisation using a network map.
Security and traffic management
Network security is ensured by modern WPA2-Enterprise and WPA3 encryption protocols, which protect sensitive data from unauthorised access. An integrated firewall and Port Forwarding function provide an additional layer of protection against external threats. Quality of Service (QoS) manages traffic by prioritising critical data flows. The device also offers a DHCP server, DHCP client and support for a DHCP Client List.
Connectivity and PoE power of the Teltonika TAP400 WiFi Access Point

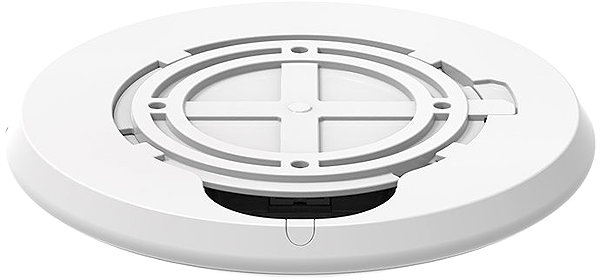

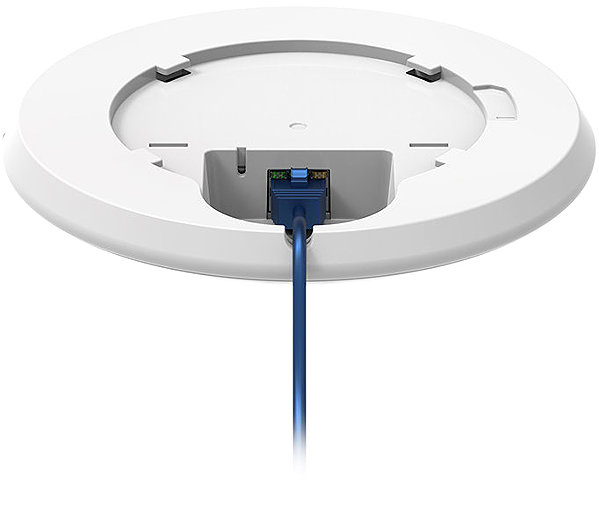

Connectivity is provided by a single 2.5GbE RJ45 port supporting 100/1000/2500Mb/s speeds, which serves for both data transmission and power via active PoE according to the IEEE 802.3af standard. The device supports an input voltage of 44 to 57V DC, so a separate power adapter is not needed. The compact 15.8 × 15.8 × 3.14cm chassis allows for ceiling or wall mounting.
Technical specification
- Wi-Fi standard: 802.11ax (Wi-Fi 6)
- Frequency bands: 2.4GHz, 5GHz
- Ports: 1× RJ45 Ethernet (100/1000/2500Mb/s)
- Security: WPA2-Enterprise, WPA3
- Operating modes: Access point, Wi-Fi Mesh
- Operating temperature: 0°C to 50°C
Package contents
- Teltonika TAP400 WiFi Access Point
- Mounting bracket
Specifications
Standards and frequency
Functions
Speed
Type
Security
Connectors
Antenna features
Advanced parameters
Number of LAN ports
Dimensions and weight
Package contents
PoE charging
Package contents
| Code: | TELwifi004 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
Teltonika Networks, K. Baršausko st. 66, LT-51436, Kaunas, Lithuania, [email protected], https://teltonika-networks.com/
|
