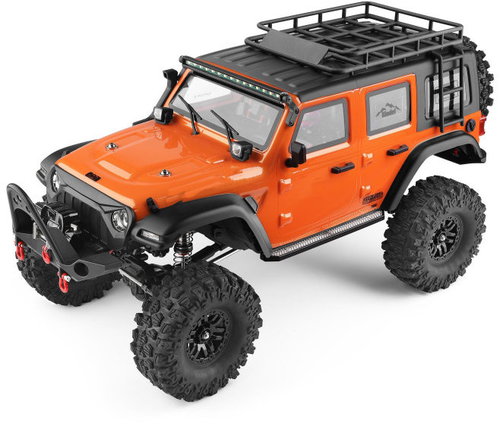

DF models DF-04S Pro BL brushless crawler 1:10, orange
DF models DF-04S Pro BL brushless crawler 1:10, orange
The DF-04S Pro BL brushless crawler 1:10 from DF Models is a crawler with a brushless drive. Beneath the hinged scale body with its many details and accessories, driver figure and cockpit, which is attached to the chassis with a magnetic closure, is a steel frame chassis. Metal struts and steering linkages provide the necessary stability. Vertically mounted all-aluminium oil-pressure shock absorbers deliver perfect handling on any terrain. A neat feature of the RC model is the integrated phone holder. You can attach your smartphone to the remote control and, for example, film your own action videos.
1:10
Scale
30m
Transmission range
13km/h
Maximum speed
Up to 20 minutes
Operating time
Indoor and outdoor
Use
Key features of the DF models DF-04S Pro BL brushless crawler 1:10 RC car, orange
- Combines performance, durability and modern technology
- 2.4GHz frequency for smooth control
- Brushless drive with a powerful crawler motor
- Two-speed gearbox for slow crawling and fast driving
- Electric winch with a steel cable
- Remote control with an LCD and one-handed operation
- Smartphone can be mounted in the integrated controller holder
- Suitable for children from 14 years of age
- The orange model is supplied in a transport box
Performance and control on any terrain
The switchable two-speed gearbox enables slow crawling (approximately 3km/h) and fast driving (approximately 13km/h). The responsive brushless speed controller is, of course, equipped with a Drag Brake function, which prevents the DF models DF-04S Pro BL brushless crawler 1:10 from rolling away when stopping on a slope. The special brushless crawler motor with an external rotor can be powered by either a 7.4V or 11.1V LiPo or Li-Ion battery, which allows for an exceptionally long run time. A 7.4V, 3000mAh Li-Ion battery and the corresponding USB charging cable are already included in the package.
LED lighting and electric winch
Thanks to the universal battery holder, almost any type of battery can be used. The scale body of the DF models DF-04S Pro BL brushless crawler 1:10 RC model is equipped with LED lighting (light bar, additional headlights, reversing lights, brake lights, indicators), which can be switched on and off via a switch on the remote control. The electric winch with its steel cable can also be controlled via the transmitter.
Advanced controls and portal axles
The differentials of the DF models DF-04S Pro BL brushless crawler 1:10 can be locked or unlocked in various ways using the remote control (both unlocked, both locked, or only front locked and rear unlocked). The wheel drive is also gear-reduced, which ensures perfect power delivery. Portal axles have the added advantage of giving the model more ground clearance, and unlike standard axles, the model does not "jump" when negotiating obstacles. Various data can be displayed on the remote control's LCD, such as transmitter battery status, signal strength, selected gear (low or high), steering deflection in %, throttle position in % and trim status. The steering wheel is equipped with an additional lever that enables one-handed operation.
Features and technical specifications
- LED lighting
- Electric winch
- Two-speed gearbox
- Lockable/unlockable differentials
- 4WD brushless drive
- 4× AAA batteries for the remote control (not included)
- Gear ratio 1:25.85 / 1:64.6
- Dimensions 270 × 250 × 535mm
- Wheelbase 313mm
Package contents
- RC model crawler RTR
- 2.4GHz remote control system
- 7.4V, 3000mAh Li-Ion battery
- USB charging cable
- Carrying case
- Instructions
Warning:
To be used under the direct supervision of an adult. Not suitable for children under 3 years of age.
Specifications
Age and intended use
RC model type
Scale
Features
Advanced
Control type
Colour
Dimensions
Included
Model power supply
Controller power supply
Battery
| Code: | HRAdfmo01 |
| Warranty: | 24 months |
| Manufacturer information |
DF models, Drahthammer Str. 22, 922 24 Amberg, www.df-models.com, [email protected]
|
