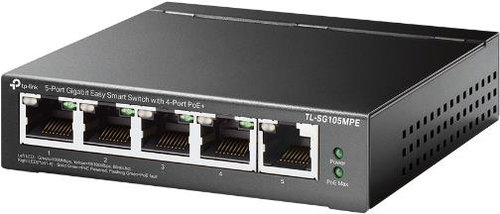

TP-Link TL-SG105MPE
Installment calculator
from
63,-
monthly
TP-Link TL-SG105MPE
TP-Link TL-SG105MPE smart switch is designed to manage and expand network infrastructure in smaller businesses or camera systems. It features five gigabit ports, four of which support Power over Ethernet (PoE+). With a total PoE budget of 120W and a maximum power output of 30W per port, it easily powers IP cameras, VoIP phones or access points. Features such as VLAN, QoS and IGMP Snooping ensure efficient network traffic management. The metal casing and desktop design make it easy to place anywhere.
Key features of the TP-Link TL-SG105MPE smart switch
- Designed for L2 management in corporate networks and camera systems
- Equipped with five 1Gb/s RJ-45 ports
- Four ports with PoE+ (802.3af/at) power support
- Total PoE budget of 120W, with a maximum of 30W per port
- Switching capacity of 10Gb/s and packet capacity of 7.44Mpps
- Support for up to 32 VLANs for network segmentation
- QoS, IGMP Snooping and static link aggregation functions
- Advanced PoE Auto Recovery and Extended mode functions
- Metal casing in a desktop design
- Operating temperature range from 0°C to 40°C
- Dimensions 25×99.8×98mm (h×w×d)
- Weight 220g
Advanced PoE management and network traffic
The switch features advanced functions for managing powered devices. PoE Auto Recovery automatically detects and restarts unresponsive PoE devices, ensuring stable operation without manual intervention. For camera systems, the Extended mode extends the range of the PoE power supply. Network management is further simplified by L2 functions, such as creating up to 32 VLANs to separate traffic, QoS to prioritise data streams, or IGMP Snooping to optimise multicast traffic. Loop detection protects the network from overload.
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Routing
Features
Speed
Dimensions
Material
Operating temperature
Weight
Power outlet type
| Code: | TP24131 |
| Warranty: | 60 months |
| Links: | Producer's Website: |
| Manufacturer information |
TP-LINK Czech s.r.o., Pekařská 10a, 15500 Praha 5, Česko, [email protected], www.tp-link.com TP-LINK Czech, s. r. o., Pekařská 695/10, Jinonice, 155 00 Praha 5, CZ +420 212 812 622 / SK +421 233 006 532, [email protected]
|
