Ubiquiti UniFi UAP nanoHD, 3 pcs
Ubiquiti UniFi UAP nanoHD, 3 pcs
The Ubiquiti UniFi UAP nanoHD WiFi Access Point is a high-performance, dual-band WiFi 5 access point, specifically designed by the manufacturer for ceiling or wall mounting in smaller office spaces. The access point boasts compact dimensions and an elegant design, and achieves a total wireless transfer speed of up to 2Gb/s. With support for 6 spatial streams and advanced technologies, it ensures stable signal distribution even in busy environments, reliably serving a high number of active users.
Dual-band
Type
WiFi 5
WiFi type
2000Mb/s
WiFi transfer speed
Key features of the Ubiquiti UniFi UAP nanoHD WiFi Access Point, 3-pack
- Supports modern Wi-Fi Mesh technology for easy coverage expansion
- Integrated antennas provide stable coverage for an area of 140m²
- Reliable connection for over 200 active users
- Convenient network management via a mobile app or cloud interface
- Features one gigabit LAN port with active PoE support
- Network security uses reliable WPA3 encryption and an integrated firewall
Wi-Fi connectivity and speed
The wireless access point operates on two frequency bands, ensuring a stable connection for demanding network tasks. It uses MU-MIMO technology for efficient signal distribution to multiple devices simultaneously. The device fully supports the 802.11b, 802.11g, 802.11n, and 802.11ac standards. Transfer speeds in the individual bands reach the following values: the 5GHz band offers speeds of up to 1.7Gb/s, and the 2.4GHz band provides speeds of up to 300Mb/s.
Mesh and coverage
The access point supports Wi-Fi Mesh technology, which makes it easy to expand your wireless network by linking multiple units under a single name. Integrated antennas with a gain of up to 3dBi ensure coverage for an area of up to 140m². The device can reliably serve more than 200 concurrently connected clients, making it a suitable solution for smaller offices.
Wireless network security
Data transmission is protected by modern encryption standards and security features that prevent unauthorised network access. There is also the option to create a separate guest zone. The main security features include: WPA2, WPA2-Enterprise and WPA3 encryption, an integrated firewall and access control function, and an isolated Guest Zone for guests.
Connectivity

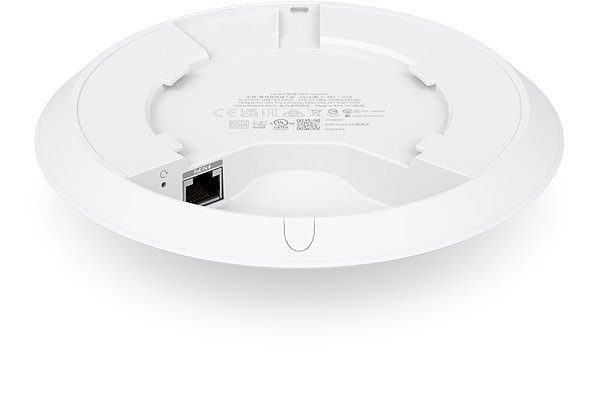

The access point's connectivity is provided by a single gigabit LAN port, which is used for a stable wired connection to the network. The device is powered exclusively via an Ethernet cable using the active PoE 802.3af standard, with a supported voltage range of 44V to 57V and a power consumption of 10.5W.
Technical specification
- Wi-Fi standard: 802.11ac (Wi-Fi 5)
- Frequency bands: 2.4GHz / 5GHz
- Ports: 1× Gigabit Ethernet
- Security: WPA2 / WPA2-Enterprise / WPA3
- Operating modes: Access Point / Mesh
- Operating temperature: -10°C to 70°C
Package contents
- 3× Ubiquiti WiFi Access Point
- 3× Mounting bracket
- 3× Mounting kit
- 3× PoE adapter
Specifications
Standards and frequency
Functions
Speed
Type
Security
Connectors
Antenna features
Advanced parameters
Number of LAN ports
Dimensions and weight
Package contents
PoE charging
Package contents
| Code: | Ubiq26272 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
Ubiquiti International Holding B.V., Ekkersrijt 3102. Son en Breugel, 5692 CC. Netherlands, [email protected]
|
