Adam Hall 4 STAR MMF 1500

829,-

Adam Hall 4 STAR MMF 1500

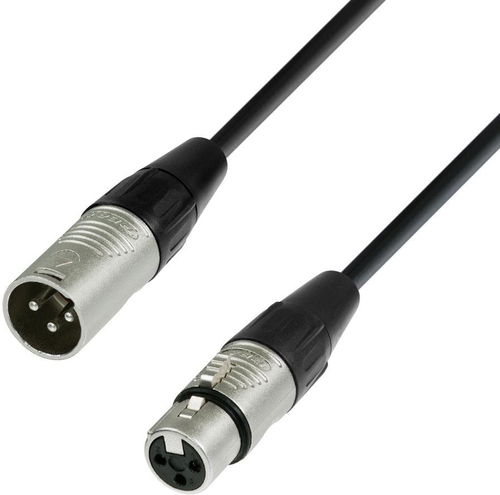

Adam Hall 4 STAR MMF 1500 microphone cable connects microphones to your audio setup. This 15m microphone cable features straight male XLR and female XLR connectors. Part of the 4 STAR series by Adam Hall, it features a low capacitance of 90pF/m to ensure clean signal transmission. The inner conductors have a cross-section of 0.22mm² and the cable has an outer diameter of 5.8mm.

Key features of the Adam Hall 4 STAR MMF 1500 microphone cable

  • Designed for microphone connections
  • 1× straight male XLR and 1× straight female XLR connectors
  • Low capacitance of 90pF/m for clean signal transmission
  • Impedance of 80Ohm
  • Inner conductor cross-section of 0.22mm²
  • Length of 15m
  • Outer diameter of 5.8mm
  • Black colour

Cable design and properties

Adam Hall 4 STAR MMF 1500 patch cable features inner conductors with a 0.22mm² cross-section and a total outer diameter of 5.8mm. Key electrical properties include a low impedance of 80Ohm and a capacitance of 90pF/m. The low capacitance ensures clean signal transmission. The cable comes with straight XLR3 male and XLR3 female connectors.

Specifications

Use

Usage Audio
Type Connecting cable

Male connectors

Double-sided connector No
Male connectors XLR3

Connector

Double-sided connector No
Connector XLR3

Type and number of connectors

1. Male connector - Type XLR3
1. Male connector - Quantity 1 ×
1. Female connector - Type XLR3
1. Female connector - Quantity 1 ×

Cable construction

Cable length 15 m
Terminate the connector Straight

Features

Features Microphone
Colour Black

Characteristics

Vein cross section 0.22 mm2
Cable diameter 5.8 mm
Impedance 80 Ohm
Capacity 90 pF/m
Code:  AUDH02l313
Warranty: 24 months
