ASRock X570 CREATOR

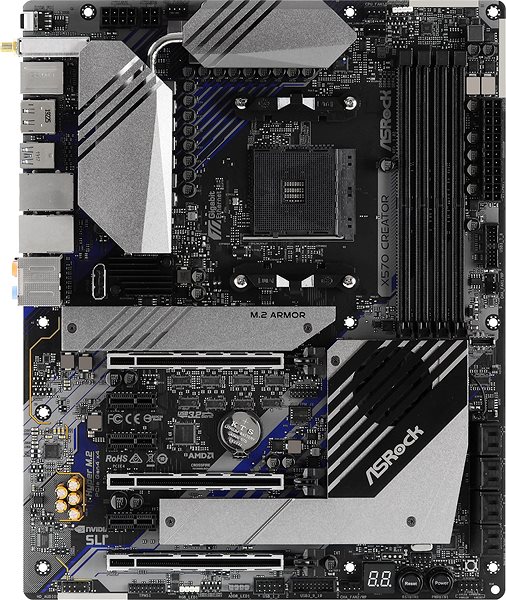

Motherboard ASRock X570 CREATOR Screen

The ASROCK motherboard is based on the AMD X570 chipset and has the AMD AM4 socket for CPU insertion. And, of course, it has a sound card which handles 8 channels. You will be able to utilise the network connection module with the practical Wi-Fi connection options. It's quite a large motherboard for extremely powerful setups, which require multiple cards and complex cooling. If you want to build a PC with this motherboard, you'll need a compatible ATX format computer case.

ASRock X570 CREATOR Motherboard Key Features

  • AMD AM4 socket and the AMD X570 chipset
  • ASRock X570 CREATOR format: ATX
  • Integrated sound card for 8 channels
  • DDR4 RAM type with DIMM design
  • The motherboard can hold 4 × dual-channel memory modules
  • Uses NVIDIA SLI/NVlink for using multiple graphics cards

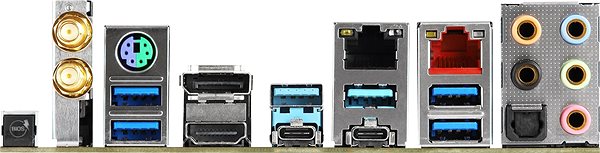

Motherboard ASRock X570 CREATOR Connectivity (ports)

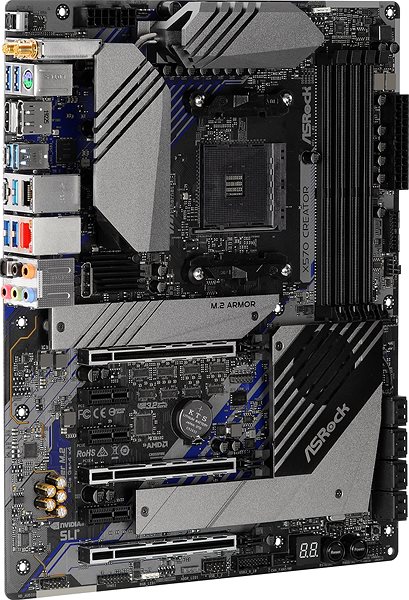

Motherboard ASRock X570 CREATOR Lateral view

ASRock X570 CREATOR Motherboard Connectivity

Computer RAM is absolutely crucial, so this ASROCK motherboard has 4 RAM slots. It's designed for DDR4 type DIMM memory . You can link them in dual-channel mode. It supports models with a clock speed of up to 4666 MHz. The ASRock X570 CREATOR motherboard is designed to support multiple GPUs, with NVIDIA SLI/NVlink providing trouble-free and beautifully effective interoperability.

ASRock X570 CREATOR Connectors

The motherboard is ready to accommodate 3 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 2 popular M.2 connectors.

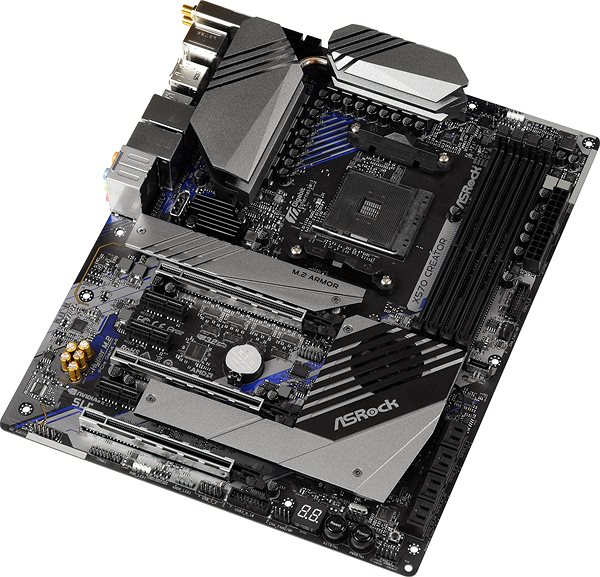

Motherboard ASRock X570 CREATOR Lateral view

What Else Can the ASRock X570 CREATOR Motherboard Do?

  • The motherboard comes with an implemented Realtek ALC1220 sound card
  • Other points in this motherboard's favour incorporate additional features such as NVIDIA SLI/NVlink and AMD CrossFire Technologies
  • External communication interfaces: HDMI, Jack, PS/2, RJ-45 (LAN) 1Gbps, RJ-45 (LAN) 10Gbps, S/PDIF , Thunderbolt 3, USB 3.2 Gen 1, USB 3.2 Gen 2 and DisplayPort IN
  • Supported internal interfaces: ARGB LED Header, RGB LED Header, Serial ATA III, TPM header, USB 2.0 header, USB 3.2 Gen 1 header and USB-C 3.2 Gen 2 header
  • Maximum supported RAM clock speed: 4666 MHz
  • SATA III: 8 ×

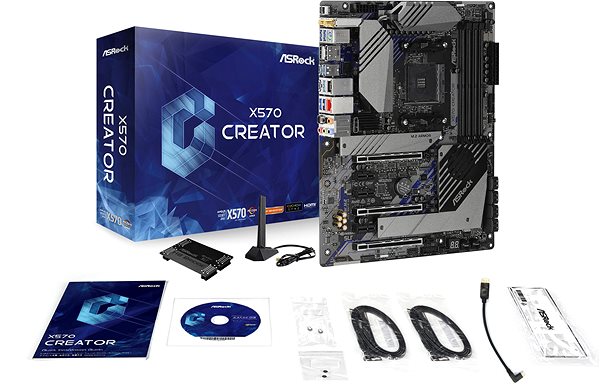

Motherboard ASRock X570 CREATOR Packaging/box

Specifications

Socket and chipset

Socket AMD AM4
Chipset AMD X570

Format & functions

Motherboard form factor ATX
Basic functions Bluetooth, Integrated network card, Integrated sound card, PCI Express 4.0, For CPU with integrated GPU, Wi-Fi

Memory

Memory type DDR4
Number of RAM slots 4 ×
Max. frequency (OC) 4,666 MHz
Design DIMM
Connection Mode dual-channel

Advanced parameters

Advanced features NVIDIA SLI/NVlink, AMD CrossFire Technologies
Sound card type Realtek ALC1220
Number of sound card channels 8.0

Connectors

External Jack, PS/2, RJ-45 (LAN) 1Gbps, RJ-45 (LAN) 10Gbps, S/PDIF, Thunderbolt 3, USB 3.2 Gen 1, USB 3.2 Gen 2
Internal RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, Serial ATA III
PCI express x16 3×
PCI express x1 3×
USB 3.2 Gen 1 (USB 3.0) 6×
USB 3.1 (3.1 gen2) 2×
M.2 slots 2×
Serial ATA III 8×
