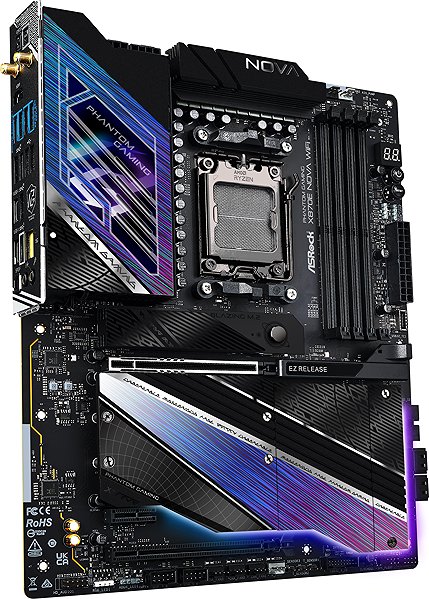

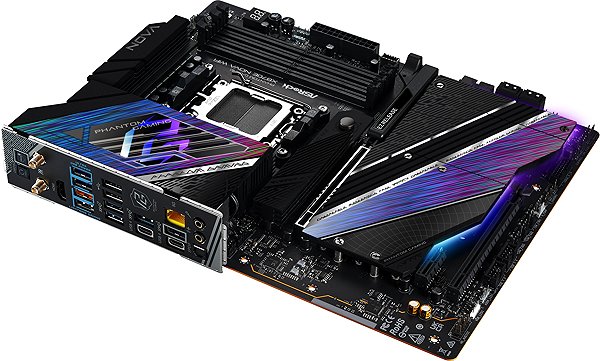

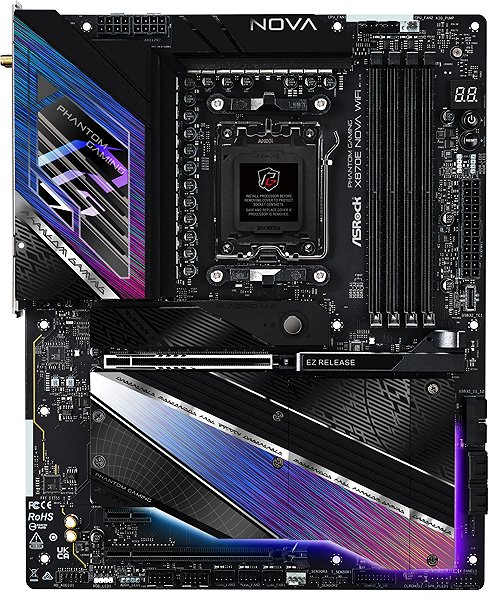

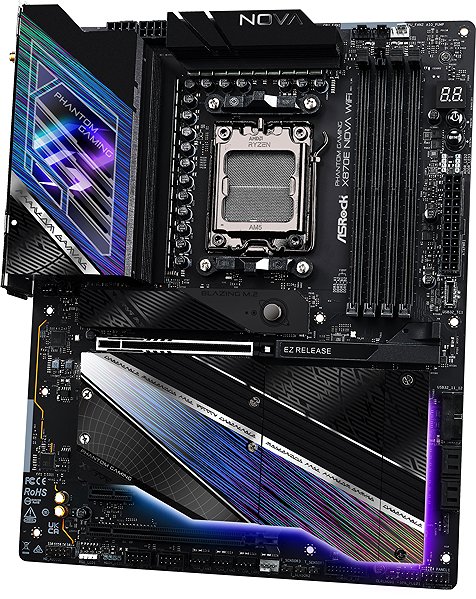

ASROCK X870E Nova WIFI

This ASROCK motherboard is built on the AMD X870E chipset, and it uses the AMD AM5 socket for CPU insertion. As you would expect,, it also has a sound card which will handle 8,0 channels. You will be able to utilise the network connection module with the practical Wi-Fi connection options. It's quite a large motherboard for extremely powerful systems that employ multiple hardware cards and complex cooling. If you want to build a PC with this motherboard model, you will need a compatible ATX format computer case.

ASROCK X870E Nova WIFI Motherboard Key Features

• AMD AM5 socket and the AMD X870E chipset
• ASROCK X870E Nova WIFI format: ATX
• Integrated sound card for 8,0 channels
• DDR5 computer RAM type with DIMM design
• The motherboard can hold 4 × dual-channel memory modules

ASROCK X870E Nova WIFI Motherboard Connectivity

RAM is absolutely crucial, so this ASROCK motherboard has a total of 4 RAM slots. It's designed for DDR5 type DIMM operating memory. You can hook them up in dual-channel mode.

ASROCK X870E Nova WIFI Connectors

The motherboard is designed for 2 graphics cards with PCI Express 16x slots. The internal interface also has a total of 5 popular M.2 slots. In terms of USB ports, it is built with 2 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 5 × of the fast 3.1 (3.1 gen2) type ports. The motherboard has an RGB LED Header for exceptional light effects.

• The motherboard comes with an integrated Realtek ALC4082 sound card

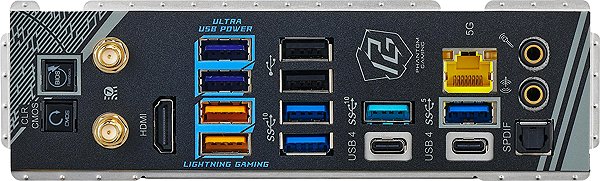

• External communication interfaces: Jack, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, RJ-45 (LAN) 5Gbps, USB 4 and HDMI 2.1
• Internal interfaces: RGB LED Header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2x2 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16 and Serial ATA III
• Serial ATA III: 4 ×
