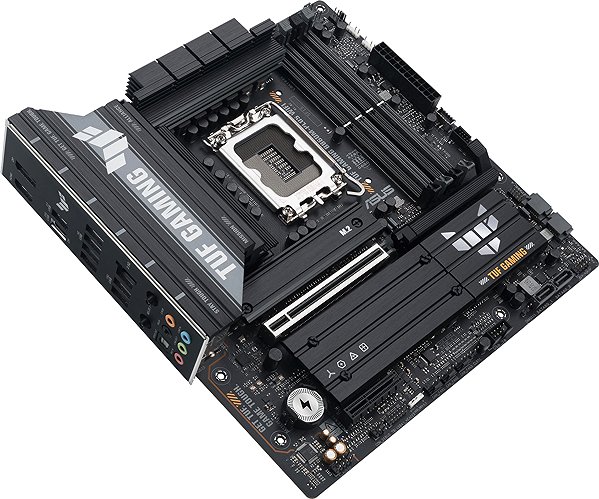

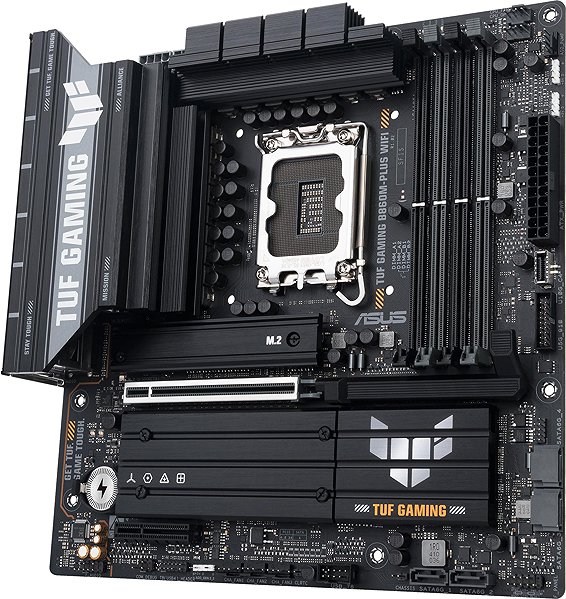

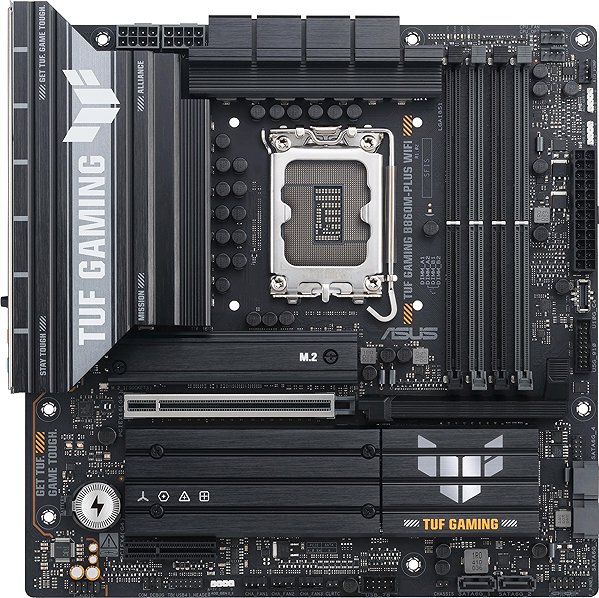

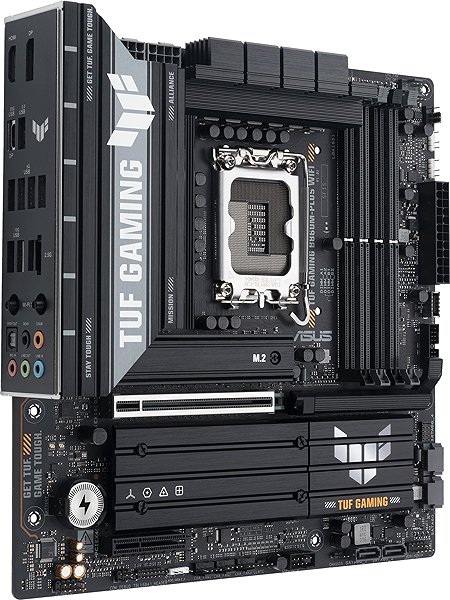

ASUS TUF GAMING B860M-PLUS WIFI

The ASUS motherboard is built with the Intel B860 chipset and has the Intel 1851 socket to accommodate the CPU. As you would expect,, it is also equipped with a sound card which can handle 8,0 channels. You can utilise a network connection module with the very practical Wi-Fi connection support. It combines compact dimensions with an adequate number of adaptors for a complete home computer setup. If you want to use this motherboard, it is neccessary to use a compatible mATX (Micro ATX) format PC case.

ASUS TUF GAMING B860M-PLUS WIFI Motherboard Key Features

• Intel 1851 socket and uses Intel B860 chipset
• ASUS TUF GAMING B860M-PLUS WIFI format: mATX (Micro ATX)
• Integrated sound card for 8,0 channels
• DDR5 RAM type with DIMM design
• The motherboard can hold 4 × dual-channel memory modules

ASUS TUF GAMING B860M-PLUS WIFI Motherboard Connectivity

Computer memory is indispensable, so this ASUS motherboard has 4 RAM slots. You can pair it with DDR5 type DIMM memory . You can attach them in dual-channel mode. The motherboard supports modules with a clock speed of up to 8800 MHz.

ASUS TUF GAMING B860M-PLUS WIFI Connectors

The motherboard is made for graphics cards with a PCI Express 16x slot. The internal interface has a total of 3 popular M.2 slots. In terms of USB ports, it is built with 1 × USB 2.0, 4 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. Thunderbolt is also supported.

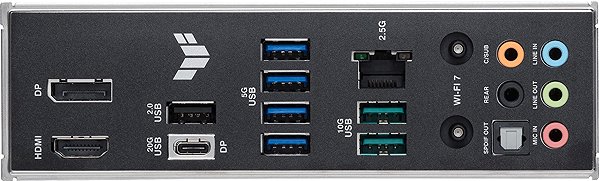

• External interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, HDMI 2.1 and DisplayPort 1.4
• Supported internal interfaces: Thunderbolt header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4 and Serial ATA III
• Maximum supported RAM clock speed: 8800 MHz
• Serial ATA III: 4 ×
