ASUS TUF Z390-PLUS GAMING (WI-FI)
Don't like the alternatives?
Choose from the full offer

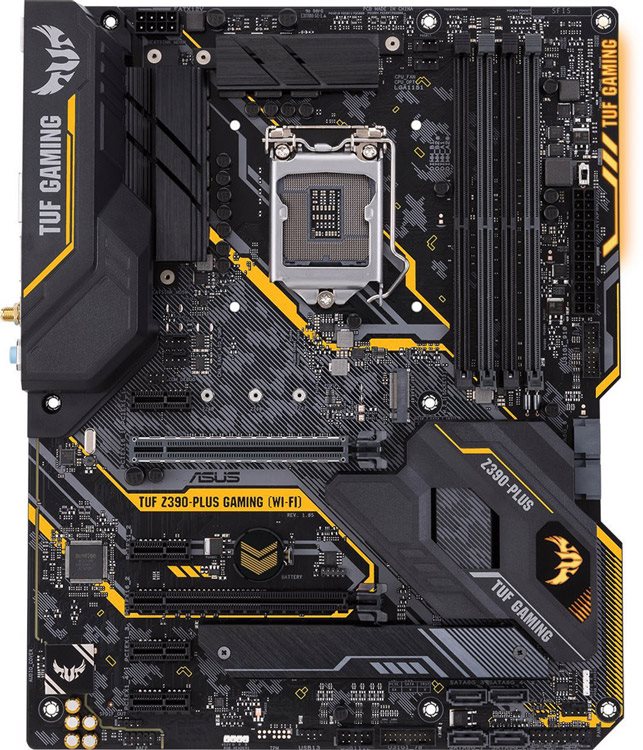

ASUS TUF Z390-PLUS GAMING (WI-FI)
This ASUS motherboard is built using the Intel Z390 chipset, which has the Intel 1151 Coffee Lake socket for the processor. Classically, it is also equipped with a sound card which handles 8 channels. You can use a network connection module with the handy Wi-Fi support. For a faster PC, the ASUS TUF Z390-PLUS GAMING (WI-FI) has compatibility with the innovative Intel Optane RAM. The whole motherboard is managed with the very modern UEFI BIOS. It is a large motherboard for extremely powerful PC builds, which require complex cooling. For this particular motherboard model, you'll need a compatible ATX format case.
ASUS TUF Z390-PLUS GAMING (WI-FI) Motherboard Key Features
- Intel 1151 Coffee Lake socket and uses Intel Z390 chipset
- ASUS TUF Z390-PLUS GAMING (WI-FI) format: ATX
- Integrated sound card for 8 channels
- Supports quick Intel Optane technology
- DDR4 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
- Supports multiple graphics cards via AMD CrossFireX and NVIDIA SLI/NVlink
- The ASUS TUF Z390-PLUS GAMING (WI-FI) motherboard is equipped with mosfet coolers
- RAID controller for greater security
ASUS TUF Z390-PLUS GAMING (WI-FI) Motherboard Connectivity
Computer memory is absolutely essential, so this ASUS motherboard has 4 RAM slots. You can make use of DDR4 type DIMM operating memory. You can connect them in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 4266 MHz. The ASUS TUF Z390-PLUS GAMING (WI-FI) motherboard seamlessly supports connection of multiple GPUs, with NVIDIA SLI/NVlink and AMD CrossFireX providing stable and very effective interoperability. The device also features the RAID controller for additional data security via independent drive management.
ASUS TUF Z390-PLUS GAMING (WI-FI) Connectors
This motherboard is ready to accommodate 2 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 2 popular M.2 slots. In terms of USB ports, it's got 4 × USB 2.0, 8 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.
ASUS Motherboard Primary Usage
The ASUS TUF Z390-PLUS GAMING (WI-FI) motherboard's capabilities are well indicated by the Intel Z390 chipset. The Z series chipsets are well suited for the most powerful gaming rigs or for advanced graphics processing. They can work with a large number of video cards and support the most modern processors. Motherboards with this modern chipset can even be overclocked, so the more experienced users can test the boundaries of performance. Their advantages include multiple USB ports or a total number of 24 PCIe 3.0 lines.
What Else Can the ASUS TUF Z390-PLUS GAMING (WI-FI) Motherboard Do?
- The motherboard comes with a built-in Realtek® ALC S1200A sound card
- Other points in this motherboard's favour include characteristics such as AMD CrossFireX, NVIDIA SLI/NVlink, RAID controller and MOSFET cooler
- Supported external communication interfaces: DisplayPort, HDMI, Jack, PS/2, RJ-45 (LAN), RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 and Wifi Connector
- Supported internal interfaces: M2 Socket, RGB LED Header, Serial ATA III and TPM header
- The M.2 socket will be very welcome if you are installing super fast SSDs
- The motherboard is compatible with Intel Optane technology, so you can speed up your storage solution by adding Optane memory
- Maximum supported RAM clock speed: 4266 MHz
- Serial ATA III: 6 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
| Code: | AC390a14 |
