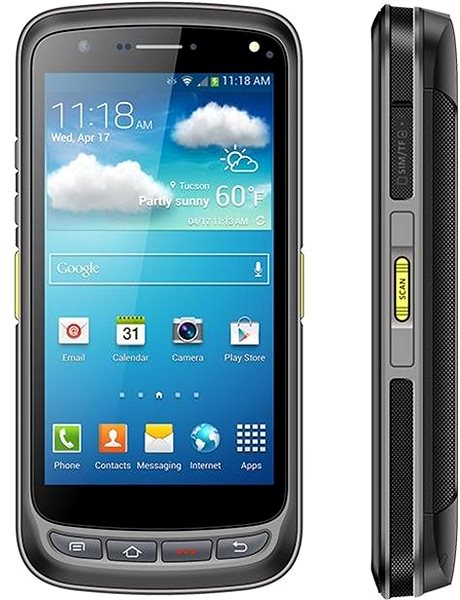

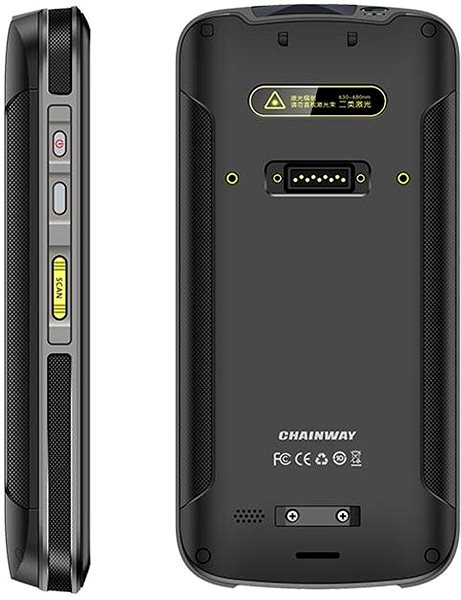

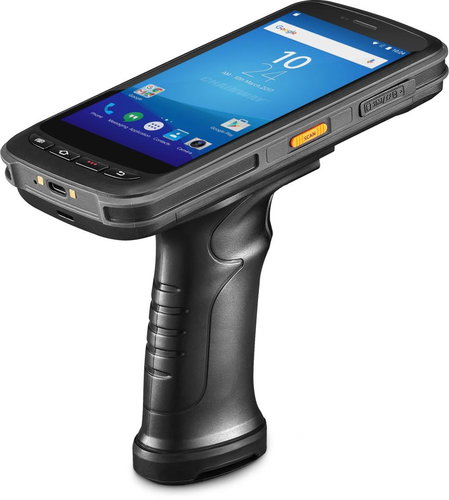

Chainway C72, 2D imager, Android 13
Chainway C72, 2D imager, Android 13
The Chainway C72 mobile terminal with the Android 13 operating system is designed for mobile data collection. The device uses an octa-core Cortex-A53 processor with a frequency of 2.3GHz, 3GB of RAM and 32GB of internal storage. It also includes a 5.2” IPS LTPS display and an 8000mAh battery. The terminal supports communication via 4G networks, dual-band Wi-Fi and Bluetooth 5.0. There is also support for GPS, AGPS, GLONASS and BeiDou navigation systems.
Key features of the Chainway C72 mobile terminal, 2D imager, Android 13
- Android 13 operating system
- Octa-core Cortex-A53 2.3GHz processor
- 3GB RAM and 32GB memory
- 5.2” IPS LTPS display with 1920×1080px resolution
- 8000mAh Li-Ion battery
- 4G and dual-band Wi-Fi support
- Bluetooth 5.0
- The Chainway C72 mobile terminal features a 2D reader
- GPS, AGPS, GLONASS and BeiDou support
- IP65 rating
Barcode scanning
The Chainway C72 device configuration includes 2D barcode scanning. The terminal supports the processing of two-dimensional codes used in logistics, warehousing and stocktaking. It supports PDF417, MicroPDF417, DataMatrix, QR Code, Micro QR Code, Aztec and MaxiCode formats. Support also includes composite codes and RSS symbologies. The standby time exceeds 500 hours and continuous use exceeds 12 hours, depending on the operating environment.
Performance and user features
Processing power is provided by an octa-core Cortex-A53 processor with a frequency of 2.3GHz. The storage space can be expanded using a Micro SD card up to 128GB. Gravity, proximity and light sensors are available. The display uses IPS LTPS technology and a resolution of 1920×1080 pixels. The construction has an IP65 rating and can withstand repeated drops from a height of 1.5m onto concrete. The device's operating temperature is from -20°C to 50°C and its storage temperature is from -40°C to 70°C.
Specifications
Display and batteries
Features
Memory
Performance
Environmental properties
Dimensions and weight
| Code: | CHAIter02 |
| Warranty: | 24 months |
| Manufacturer information |
ITFutuRe s.r.o., Libčany 275, Libčany 50322, Czech Republic, [email protected], +420739 422 196
|
