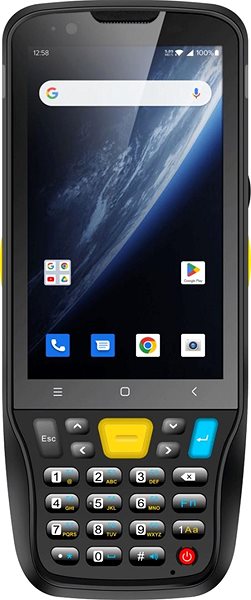

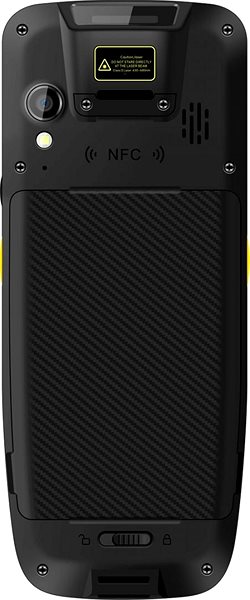

Chainway MC62, 2D imager, Android 13
Chainway MC62, 2D imager, Android 13
The Chainway MC62 mobile terminal with the Android 13 operating system is designed for mobile data collection. The device uses an octa-core 2.0GHz processor, 4GB of RAM and 64GB of internal storage. It comes equipped with a 4” multi-touch display and a removable 5000mAh battery. The terminal supports communication via Wi-Fi, Bluetooth 5.0, and 2G, 3G and 4G mobile networks. The device's configuration includes support for 2D barcode scanning, a 13Mpx rear camera, and a Micro SD memory card slot supporting up to 128GB.
Key features of the Chainway MC62 mobile terminal, 2D imager, Android 13
- Android 13 operating system
- 2D barcode scanning support
- Octa-core 2.0GHz processor
- 4GB RAM and 64GB internal memory
- 4” multi-touch display
- Removable 5000mAh battery
- Bluetooth 5.0
- NFC 13.56MHz
- Micro SD card slot for up to 128GB
- IP67 rating
Mobile data collection and connectivity
The Chainway MC62 device configuration includes support for 2D barcode scanning. The NFC module supports ISO14443A/B, ISO15693, NFC-IP1, and NFC-IP2 standards. It also features support for GPS, AGPS, GLONASS, BeiDou, and Galileo location systems. A USB Type-C interface with OTG support and NFC technology operating at 13.56MHz are available. The device also comes with side buttons, a gravity sensor, a light sensor, and a proximity sensor.
Durable design and technical equipment
The design meets IP67 requirements and withstands repeated drops from 1.5m onto concrete. The 480 × 800 pixel touch panel can be operated with gloves and wet hands. The device is equipped with a rear camera with autofocus and flash, two microphones, a speaker, and vibration feedback. Power is supplied by a removable 5000mAh battery with fast charging support.
Specifications
Display and batteries
Features
Memory
Performance
Environmental properties
Dimensions and weight
| Code: | CHAIter04 |
| Warranty: | 24 months |
