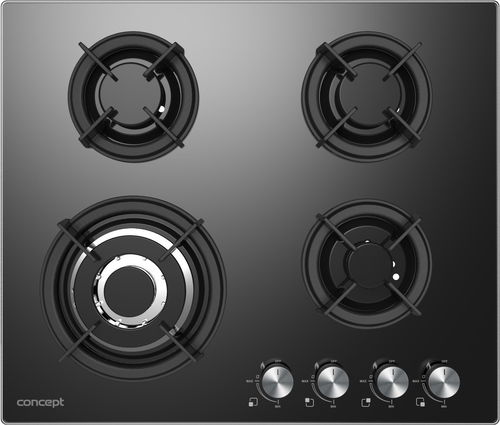

This is a 60cm gas hob from the Czech Concept company with a triple wok burner at an affordable price. Its luxurious design with black tempered glass will certainly improve your kitchen design. Its rapid triple wok burner with an output of 3.3kW provides faster food preparation.
Concept PDV7160
Don't like the alternatives?
Choose from the full offer
Concept PDV7160
Three reasons to buy this product.
WOK burner 3,3 kW
Safety fuses
Luxurious design
The hotplate with a diameter of 22cm can accommodate even the largest pot or pan. Control knobs with electronic ignition are located on the right side, which makes them easily accessible.
Ingenious design
Luxurious design and very simple to use
This hob guarantees both your safety and the safety of your dearest. All burners are equipped with safety fuses which automatically stop the gas flow should the flame suddenly go out. The hob also features a child fuse.
- WOK burner 3,3 kW
- Safety fuses
- Luxurious design
- Simple operation
- Easy maintenance
Maintenance of the hob is very easy, the tempered glass can be easily cleaned by a special spray. Another perk is the extended warranty of the appliance.
The main advantages of this model:
- Powerful triple burner WOK
- Luxurious design
- Anti-gas leak and child fuse
- Easy maintenance
Parameters and specifications:
Construction:
Built-in
General characteristics:
Gas type
Special tempered glass
4 gas burners, including 1 triple WOK burner
4x cast iron grid
Control panel - front right
Fuses against gas leaks
Child fuse
Electronic burner ignition knobs
Warranty: 2+1
Accessories include PB nozzle
Technical specifications:
Dimensions (H x W x D): 120 x 590 x 510mm
Dimensions for installation (H x W x D): 48 x 550 x 470mm
Weight: 13.5kg
Voltage: 230V ~ 50Hz
Type of gas: G20 20mbar
Type of propane - butane (after replacing nozzles): G30/G31, 28-30/37mbar
El. ignition power consumption: 0.6W
The maximum heat output of the burners: 7.3kW
The type and size of the gas connection: G1/2
900mm power cord
Left front hotplate:
Large wok burner
Diameter: 220mm
Heat output: 1.6-3.3kW
Rear left hotplate:
Medium-sized burner
Diameter: 180mm
Heat ouput: 0.55-1.5kW
Rear right hotplate:
Medium-sized burner
Diameter: 180mm
Heat output: 0.55-1.5kW
Right front hotplate:
Small burner
Diameter: 140mm
Heat output: 0.35-1kW
Whole description
Specifications
Power outlet type
Country
Czechia, Slovakia, Hungary, Germany, Russia, Austria, Croatia, France, Poland, Romania, Slovenia
Design
Design
Classic
Wiring and installation
Connection
Electrician, Gas fitter
Hob type
Hob type
Gas
Cooktop features
Number of hotplates
4
Cooktop safety features
Child safety lock, Burner safety element
Cooking functions
Wok burner
Cooktop properties
Electric ignition
Cooktop controls
Rotary knobs
Cooktop dimensions and weight
Cooking surface height
12 cm
Hob width
59 cm
Cooktop depth
51 cm
Cooktop colour
Cooktop colour
Black
Cooktop design
Cooktop edges
Vertical
Cooktop frame
Without frame
Appearance of the cooking surface
Anthracite
Cooktop design
Built-in
Cooktop surface finish
Glass
Cooktop grid surface
Cast iron
Cooktop connection
Connection
230 V, Natural gas, Propane-butane
All parameters
| Code: | CON512a |
| Links: | Producer's Website: |
| Manufacturer information |
Jindřich Valenta - Concept, Vysokomýtská 1800, Choceň 56501, Czech Republic, +420 465 471 400, [email protected]
|
