EMOS Coaxial cable CB125, 100m

The EMOS CB125 coaxial cable comes in a 100m coil and is designed for indoor television or satellite signal distribution. This 75 Ohm cable features a solid copper inner conductor to ensure a stable transmission. Double shielding with 40% coverage minimises signal interference from surrounding sources, while the PVC outer jacket protects the cable from mechanical damage during installation.

Cable composition and materials used

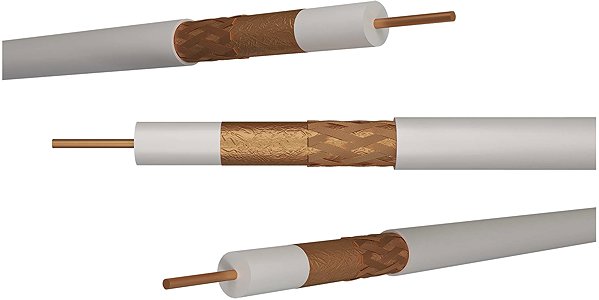

At the core of the cable is a 1.00mm diameter solid copper (Cu) inner conductor. To protect the signal from external interference, the cable features double shielding that combines aluminium foil (CCA/PES) and braiding. The braiding consists of 64 × 0.12mm copper-clad aluminium wires, achieving 40% coverage. A PVC outer jacket protects the entire inner structure, giving the cable an overall diameter of 6.8mm.

Installation and safety parameters

The EMOS CB125 cable comes in a 100m coil, making it easy to handle during larger installations within a building. The pack does not include connectors, so you can choose and install the exact ones to match your equipment. For safety, the cable meets the Eca reaction to fire class, making it suitable for standard indoor installations with basic fire safety requirements.
