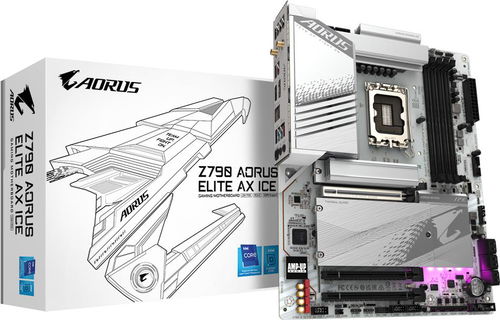

GIGABYTE Z790 AORUS ELITE AX ICE
The GIGABYTE motherboard is built on the Intel Z790 chipset, and it has the Intel 1700 socket for the CPU. As is the standard, it also has a sound card which can handle 8 channels. You will be able to utilise the network connection module with the very handy Wi-Fi support. It's quite a large motherboard for extremely powerful setups that employ multiple hardware cards and complex cooling. If you want to build a PC with this model, you will require a compatible ATX format case.
GIGABYTE Z790 AORUS ELITE AX ICE Motherboard Key Features
- Intel 1700 socket and the Intel Z790 chipset
- GIGABYTE Z790 AORUS ELITE AX ICE format: ATX
- Integrated audio card for 8 channels
- DDR5 RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
GIGABYTE Z790 AORUS ELITE AX ICE Motherboard Connectivity
Computer memory is absolutely crucial, so this GIGABYTE motherboard is equipped with 4 RAM slots. It's designed for DDR5 type DIMM memory . You can link them in dual-channel mode. The motherboard supports modules with a clock speed of up to 7600 MHz.
GIGABYTE Z790 AORUS ELITE AX ICE Connectivity
This motherboard is ready to accommodate 3 graphics cards with PCI Express 16x slots. The internal interface also has a total of 4 popular M.2 connectors. In terms of USB ports, it's got 4 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. You'll also be happy to find it has TPM for better security, an eyecatching RGB LED Header, and Thunderbolt
- Supported external communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, HDMI 2.0 and DisplayPort 1.2
- Supported internal interfaces: ARGB LED Header, RGB LED Header, Serial ATA III, Thunderbolt header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2 header, USB 2.0, M.2 PCIe 4.0, PCIe 5.0 x16, PCIe 4.0 x16 and PCIe 3.0 x16
- Maximum supported RAM clock speed: 7600 MHz
- Serial ATA III: 6 ×
