The Shelly Gen4 EM Mini power meter allows you to monitor the power consumption of connected devices up to 16A. It features a Shelly chip and supports multi-protocol WiFi, Zigbee, Bluetooth and Matter connectivity. Offers broad compatibility with third-party home automation applications, including Shelly Smart Control. With firmware flexibility as well as Shelly EM devices, it provides professional integrators with additional solution options for end customers. It can operate standalone on a local WiFi network or run through cloud-based home automation services via MQTT, HTTP and WebSocket. All incoming connections support TLS. The device is an enhanced version of the Shelly PM Mini Gen3 with a more advanced processor and Zigbee connectivity.
Key Features of Shelly Gen4 EM mini 16 A, WiFi, LAN power meter
- Support for multiple communication protocols, choice between Zigbee, WiFi, Bluetooth and Matter
- Matter certification to integrate into any Matter ecosystem
- Energy metering with accurate monitoring of the connected device's power consumption
- Smart scheduling with the ability to set your own schedules
- Smart Scenes to connect to other devices
- Support for mjS scripting to create custom functions and automations
- Clamp module with a maximum load of 3680 W
- Smart and open system features
- Suitable for electrical installations and home control
- Support for Android, Windows and iOS operating systems
- Compatibility with Google Assistant and Amazon Alexa
- App available in English, Czech and Slovak
- Network power supply
Compatible with the manufacturer's app
To use the product's smart features, you need to add the device to the manufacturer's app. For more information about the application (name, supported OS, supported languages) and how to add a device to the application, please refer to the product manual.
Compact device with Gen4 firmware and advanced connectivity

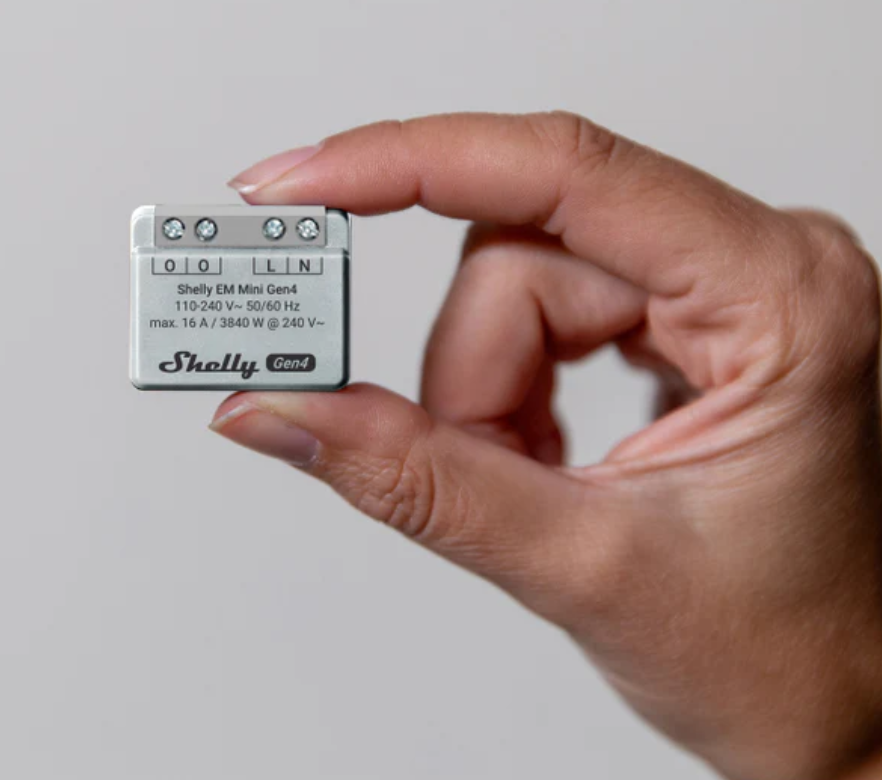

The device uses flexible Gen4 firmware, which provides more options for professional integrators. Thanks to its very small dimensions, it can be installed even in hard-to-reach places. It features an improved processor and Zigbee connectivity for enhanced performance. Supports Zigbee for system integration purposes. Allows remote access, setup and monitoring and communication within the network.
Advanced features and wide integration options
It includes an integrated web interface for monitoring, control and configuration. It acts as a BLE gateway to connect Shelly BLU devices to the Shelly ecosystem. It can be used as a Zigbee extender to extend the range of the Zigbee network. It also serves as a WiFi extender to extend the range of the WiFi network. Supports Shelly Script. It offers a wide range of integration options with external systems via HTTP API, MQTT(s), WebHooks and UDP.
Efficient consumption monitoring and cost optimisation

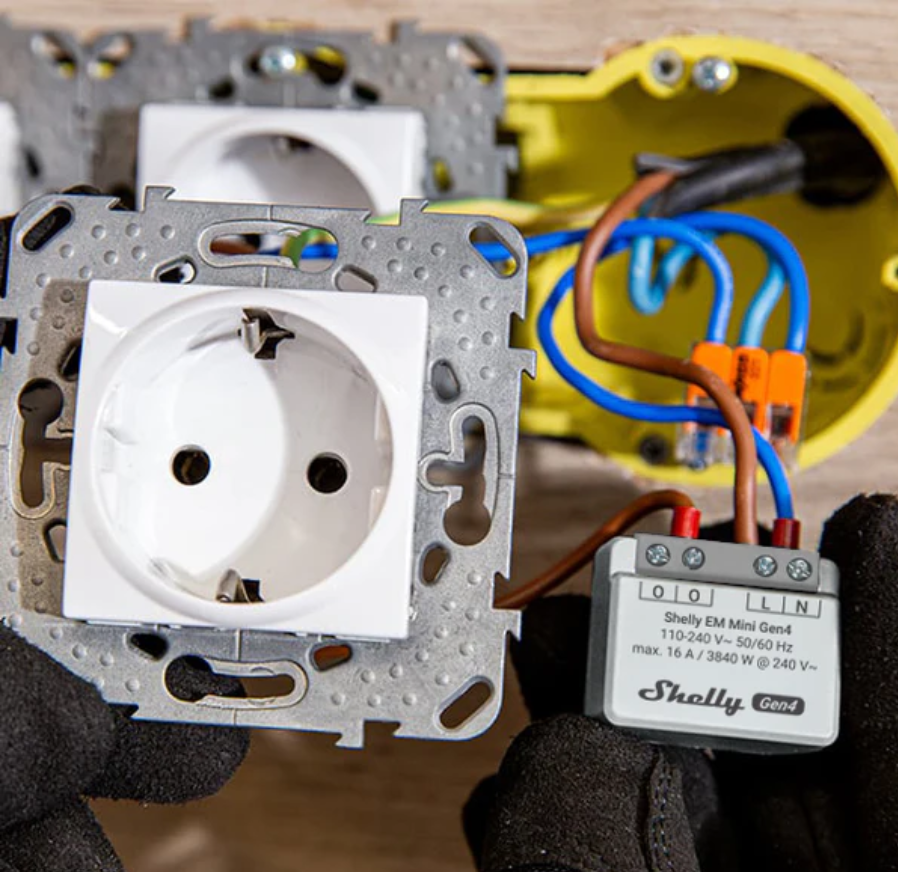

The power meter is used to monitor the power consumption of connected devices in real time. It enables optimization of energy efficiency by identifying energy-intensive equipment. It can be used to check the status of appliances by monitoring changes in consumption. It helps with managing electricity costs based on actual consumption. It is suitable for installation in confined spaces, for example in installation boxes, behind sockets or switches. Allows remote monitoring of consumption even outside the home.
Interface, connectivity and device control

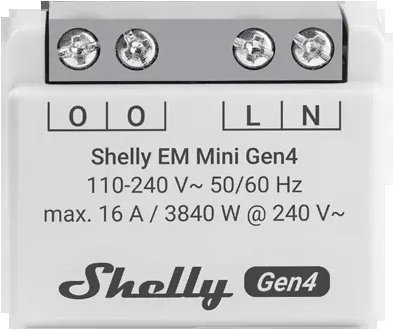

It has two line inputs on screw terminals, namely L and N. It contains two load circuit outputs that are internally interconnected. Supports WiFi, Bluetooth and Zigbee connectivity. It is compatible with resistive, capacitive and inductive loads. The power meter is equipped with one control button. Holding the button for 5 seconds activates the access point and Bluetooth connection. Holding the button for 10 seconds will cause a factory reset. Pressing five times switches the device from Matter to Zigbee profile and activates pairing mode for 3 minutes. Triple press to restart pairing mode for another 3 minutes.
LED indication and status signals of the device
LED indication shows the status of the device. When the access point is active and Wi-Fi is turned off, it flashes on and off at 1 second intervals. If Wi-Fi is on but the device is not connected, the light flashes for 1 second on and 3 seconds off. When connected to Wi-Fi, it lights up permanently. If the cloud is active but not connected, it flashes at 1 second on and 5 seconds off. When connected to the cloud, it lights up permanently. During the OTA update, it flashes at intervals of 0.5 seconds lit and 0.5 seconds unlit. When the button is held for 5 seconds, it flashes at intervals of 0.5 seconds on and 0.5 seconds off. When the button is held for 10 seconds, it flashes at intervals of 0.25 seconds on and 0.25 seconds off. The individual states are overwritten according to priority and the last active state takes precedence.
Why Shelly Mini Gen4

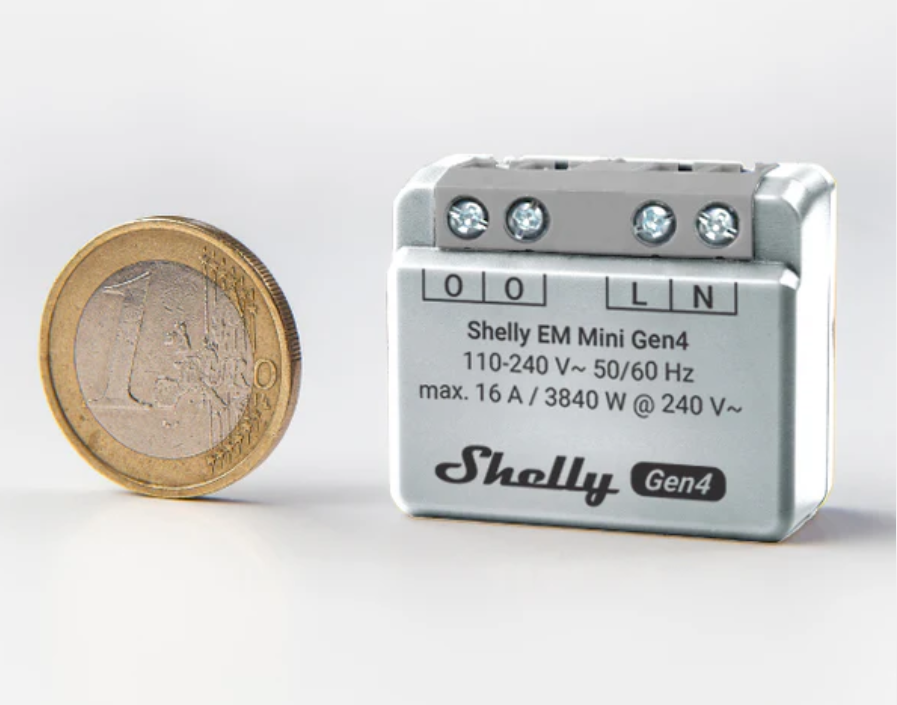

Shelly Mini Gen4 devices are designed with practicality in mind, offering all the features of standard Shelly smart devices in a compact design. Their small size makes them a great asset and they are easy to install even in confined spaces. They are equipped with an improved processor and 8 MB memory, which ensures higher efficiency, faster response and smoother operation. Each Mini Gen4 device is certified to the Matter standard and supports multiple communication protocols, allowing for greater flexibility within the smart home.
Specifications
Use
Connectivity
Connection
Type
Features
| Code: | Shell26019 |
| Warranty: | 36 months |
