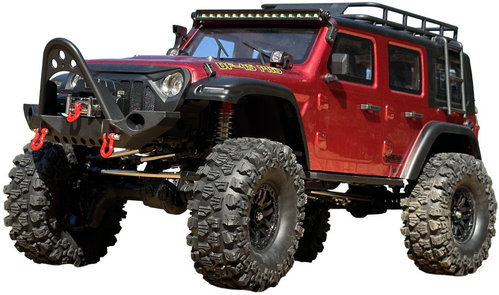

DF models DF-04S Pro BL Brushless Crawler 1:10, Metallic Burgundy
DF models DF-04S Pro BL Brushless Crawler 1:10, Metallic Burgundy
The DF-4S PRO BL Scale Crawler from DF Models is a crawler with a brushless drive. Under the hinged scale body with its many details and accessories, driver figure and cockpit, which is attached to the chassis with a magnetic lock, you'll find a steel frame chassis. Metal braces and steering linkages provide the necessary stability. Vertically mounted all-aluminium oil-pressure shock absorbers ensure perfect handling on any terrain. A unique feature of this RC model is its integrated phone holder. You can attach your smartphone to the remote control, allowing you to film your own action videos, for example.
1:10
Scale
30m
Transmission range
13km/h
Maximum speed
Up to 20 minutes
Operating time
Indoor and outdoor
Use
Key features of the DF models DF-04S Pro BL brushless crawler 1:10 RC car, metallic burgundy
- Combines performance, durability and modern technology
- 2.4GHz frequency for smooth control
- Brushless drive with a powerful crawler motor
- Two-speed gearbox for slow crawling and fast driving
- Electric winch with a steel cable
- Remote control with an LCD display and one-handed operation
- Smartphone can be attached to the controller's integrated holder
- Suitable for children aged 14 and over
- The metallic burgundy model comes in a transport box
Performance and control on any terrain
The switchable two-speed gearbox enables both slow crawling (approximately 3km/h) and fast driving (approximately 13km/h). The sensitively controlled brushless speed controller is naturally equipped with a Drag-Brake function, which prevents the DF models DF-04S Pro BL brushless crawler 1:10 from rolling away when stopped on a slope. The special brushless crawler motor with an external rotor can be powered by either a 7.4V or 11.1V LiPo or Li-Ion battery, which ensures an exceptionally long run time. A 7.4V, 3000mAh Li-Ion battery and a corresponding USB charging cable are already included in the package.
LED lighting and electric winch
Thanks to the universal battery holder, almost any type of battery can be used. The scale body of the DF models DF-04S Pro BL brushless crawler 1:10 RC model is equipped with LED lighting (light bar, additional headlights, reverse lights, brake lights, indicators), which can be switched on and off via a switch on the remote control. The electric winch with its steel cable can also be operated using the transmitter.
Advanced control and portal axles
The differentials of the DF models DF-04S Pro BL brushless crawler 1:10 can be locked or unlocked in various ways using the remote control (both unlocked, both locked, or only front locked and rear unlocked). The wheel drive is also gear-reduced for perfect power delivery. The portal axles have the added advantage of giving the model more ground clearance, and unlike standard axles, the model does not "jump" when overcoming obstacles. The remote control's LCD display shows various data, such as the transmitter battery status, signal strength, selected gear (low or high), steering deflection in %, throttle position in %, and trim status. The steering wheel is equipped with an additional lever, enabling one-handed operation.
Features and technical specification
- LED lighting
- Electric winch
- Two-speed gearbox
- Lockable/unlockable differentials
- 4WD brushless drive
- 4× AAA batteries for the remote control (not included)
- Gear ratio 1:25.85 / 1:64.6
- Dimensions 270 × 250 × 535mm
- Wheelbase 313mm
Package contents
- RTR RC crawler model
- 2.4GHz remote control system
- 7.4V, 3000mAh Li-Ion battery
- USB charging cable
- Carry case
- Instructions
Warning:
To be used under the direct supervision of an adult. Not suitable for children under 3 years of age.
Specifications
Age and intended use
RC model type
Scale
Features
Advanced
Control type
Colour
Dimensions
Included
Model power supply
Controller power supply
Battery
| Code: | HRAdfmo02 |
| Warranty: | 24 months |
| Manufacturer information |
DF models, Drahthammer Str. 22, 922 24 Amberg, www.df-models.com, [email protected]
|
