Specifications

Performance and format

Performance 1,000 W

Format ATX

ATX version 3.0

Modularity Full

Equipment

Features and functions Detachable cables, Thermal speed control, Power switch, Zero RPM mode

Type of protection Overvoltage protection (OVP), Undervoltage protection (UVP), Overcurrent protection (OCP), Over-power protection (OPP), Short-circuit protection (SCP), Over-temperature protection (OTP)

Efficiency

Certification 80 PLUS Gold

Performance 90 %

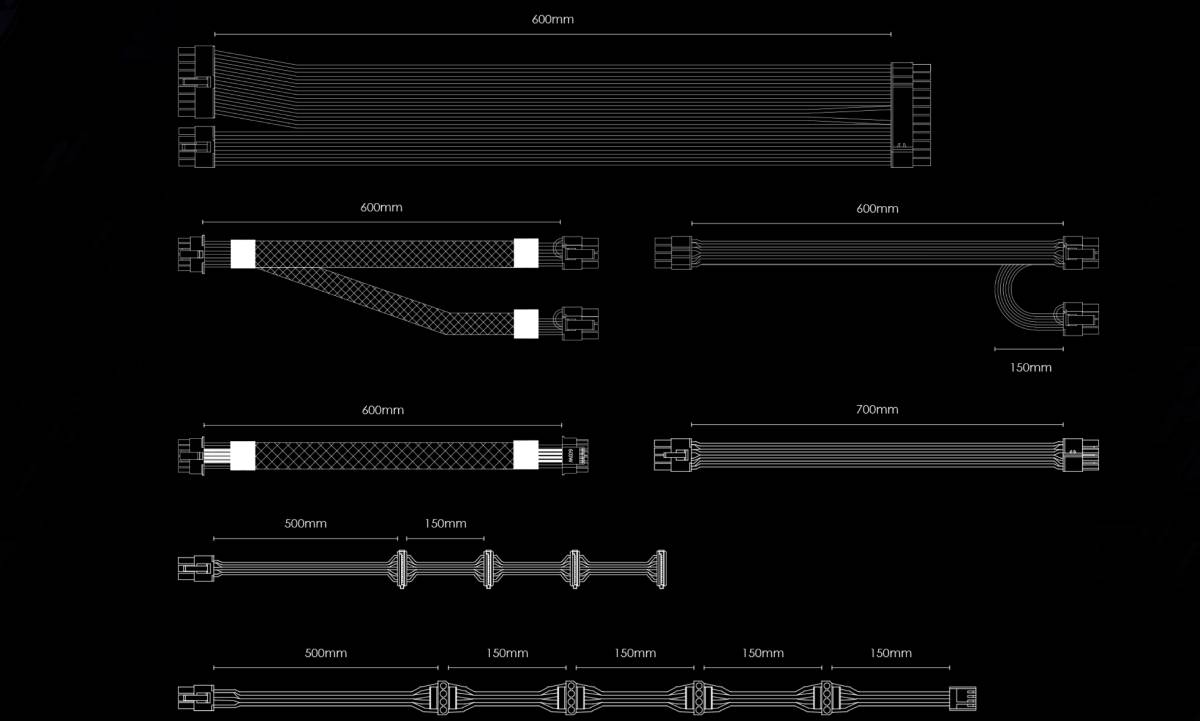

Connectors

Connectors ATX 24pin, CPU 8pin / 4+4pin, Floppy 4pin, Molex 4pin, PCI-E 8pin / 6+2pin, SATA 15pin, 12VHPWR 16-pin

Number of EPS/CPU 4+4pin 2

Number of PCI Express 16-pin 1 pc(s)

PCI Express 8pin / 6+2pin 6pc(s)

Number of serial ATA 15-pin 12pc(s)

Number of molex HDD 4-pin 4pc(s)

Number of molex FDD 4-pin 1pc(s)

Cooling system

Fan size 135 mm

Dimensions

Width 150 mm (15 cm)

Height 150 mm (15 cm)

Depth 86 mm (8.6 cm)

Watch Price/Availability

Best sellers, best PC Power Supplies PC Power Supplies reviews Cheap PC Power Supplies Cheap PC Power Supplies MSI PC Power Supplies PC Power Supplies MSI All categories

Code:	AAzma1000g
Warranty:	36 months
