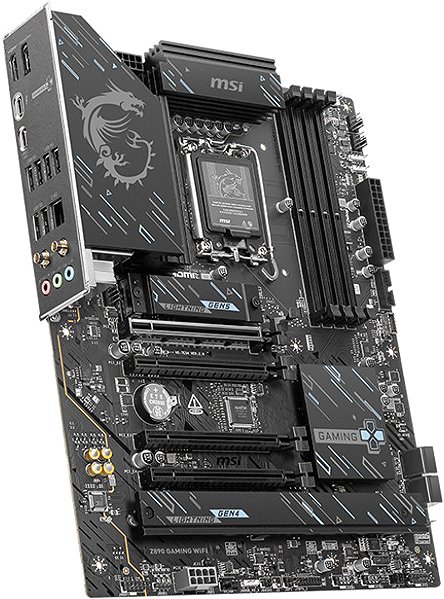

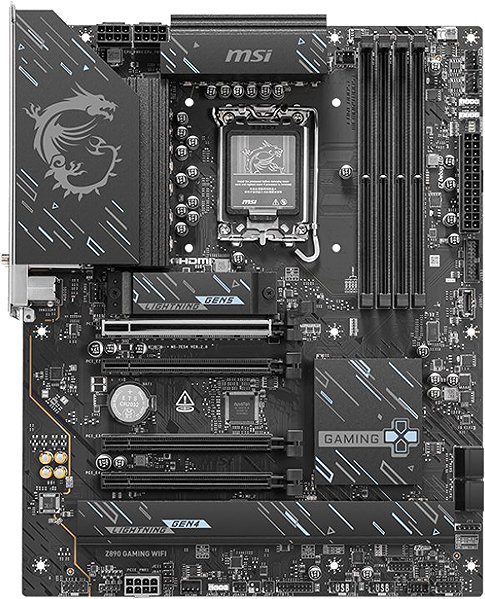

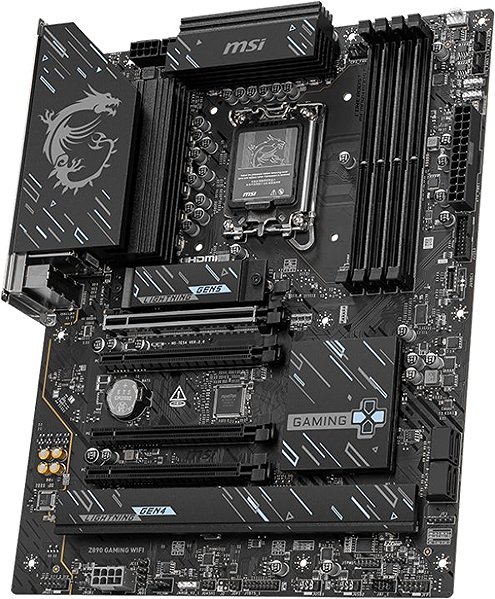

MSI Z890 GAMING WIFI

The MSI motherboard is built with the Intel Z890 chipset and has the Intel 1851 socket to accommodate the CPU. And, of course, it is also equipped with a sound card which will handle 7,1 channels. You will be able to use the network connection module with the practical Wi-Fi support. It is a large-format motherboard for extremely powerful systems, which employ complex cooling and multiple cards. If you want to build a PC with this motherboard, you'll require a compatible ATX format case.

MSI Z890 GAMING WIFI Motherboard Key Features

Intel 1851 socket and Intel Z890 chipset
MSI Z890 GAMING WIFI format: ATX
Integrated audio card for 7,1 channels
DDR5 RAM type with DIMM design
The motherboard can hold 4 × dual-channel memory modules

MSI Z890 GAMING WIFI Motherboard Connectivity

RAM is absolutely crucial, so this MSI motherboard has 4 RAM slots. You can make use of DDR5 type DIMM memory . You can link them in dual-channel mode. It supports models with a clock speed of up to 8800 MHz.

MSI Z890 GAMING WIFI Connectors

The motherboard is made for 4 graphics cards with PCI Express 16x slots. The internal interface includes a total of 3 popular M.2 connectors. You will also love that it has TPM, meaning better security, a dazzling RGB LED Header, and Thunderbolt

The motherboard comes with a built-in Realtek ALC897 sound card

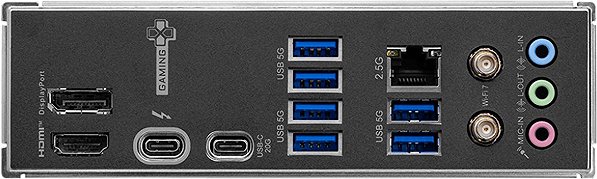

Supported external communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 3.2 Gen 1, Thunderbolt 4, USB-C 3.2 Gen 2x2, HDMI 2.1 and DisplayPort 1.4
Supported internal interfaces: RGB LED Header, Thunderbolt header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2x2 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, M.2 PCIe 4.0, PCIe 3.0 x1 and ARGB LED Header
The motherboard supports RAM modules with a clock speed of up to 8800 MHz
Serial ATA III: 4 ×

Specifications

Socket and chipset

Socket Intel 1851

Chipset Intel Z890

Format & functions

Motherboard form factor ATX

Basic functions Bluetooth, Integrated network card, Integrated sound card, PCI Express 5.0, For CPU with integrated GPU, Wi-Fi

Memory

Memory type DDR5

Number of RAM slots 4 ×

Max. frequency (OC) 8,800 MHz

Design DIMM

Connection Mode dual-channel

Advanced parameters

Sound card type Realtek ALC897

Number of sound card channels 7.1

Connectors

External Jack, RJ-45 (LAN) 2.5Gbps, USB 3.2 Gen 1, Thunderbolt 4, USB-C 3.2 Gen 2x2, HDMI 2.1, DisplayPort 1.4

Internal RGB LED Header, Thunderbolt header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2x2 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, ARGB LED Header, M.2 PCIe 4.0, PCIe 3.0 x1

PCI express x16 4×

USB 3.2 Gen 1 (USB 3.0) 6×

USB 3.2 Gen 2x2 1×

ThunderBolt 1×

M.2 slots 3×

Serial ATA III 4×

Compatibility

Compatible processor generation Core Ultra Series 2

Colour

Colour Black
