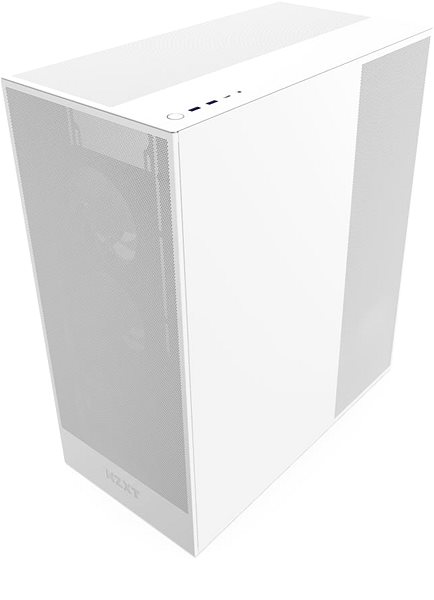

NZXT H7 Flow (2024) All White
The NZXT H7 Flow (2024) PC case provides a robust foundation for building powerful gaming PCs and workstations that require efficient airflow. The Midi Tower design uses a vertical power supply orientation, which enables the graphics card to be cooled directly from the bottom of the chassis. The all-metal construction in white is complemented by a tempered glass side panel for a clear view of the installed components. The hardware supports motherboards up to E-ATX format and offers space for installing powerful cooling systems. The open interior directs air to the components that generate heat, ensuring stable performance.
Midi Tower
Size
185mm
Maximum CPU cooler height
410mm
Maximum graphics card length
3×
Number of installed fans
10×
Number of fan positions
Key features of the NZXT H7 Flow (2024) All White PC case
- Support for E-ATX, ATX, mATX and mITX motherboards
- Vertical PSU mount creates space and allows for direct graphics card cooling
- The front panel can accommodate a large liquid cooling radiator
- Perforated panels with a fine mesh act as a dust filter
- Three pre-installed fans ensure immediate airflow
- Tempered glass side panel provides a clear view of the interior
- Tool-free panel opening system makes accessing hardware easy

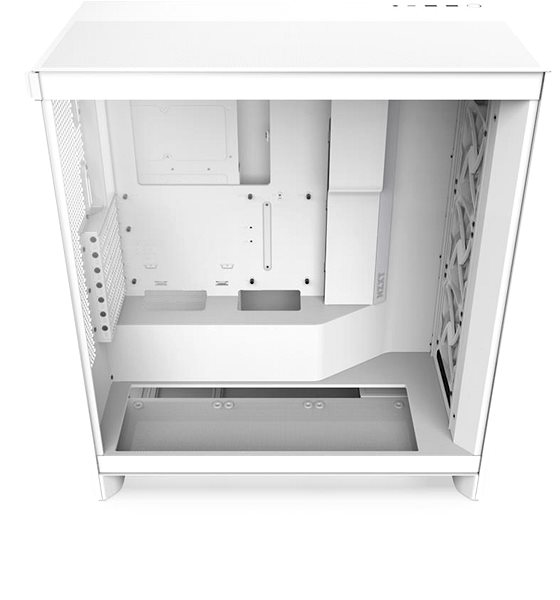

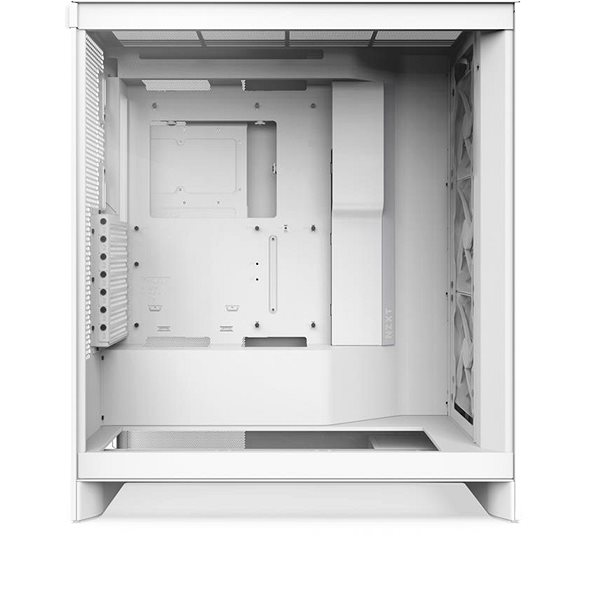

Airy design of the NZXT H7 Flow case
The chassis is based on solid SGCC steel, which gives the entire build the necessary stability and resistance to vibration. The tempered glass side panel is highly durable and showcases the internal hardware. The white finish with dark tinted glass creates a cohesive look suitable for any modern interior. The manufacturer has designed the front, top and side panels with an emphasis on maximum air permeability. The fine perforation of the steel panels acts as an effective filter that traps dust without obstructing fresh air intake. This solution eliminates the need for additional dust filters that restrict airflow.
Cooling in the NZXT PC case
The bottom of the chassis accommodates three 120mm fans that draw in cool air and direct it straight to the graphics card cooler. A direct supply of fresh air to the hottest component significantly reduces the GPU's operating temperatures, even under heavy load. This system effectively manages the thermal output of graphics accelerators. The manufacturer supplies the case with three F120Q Airflow Case Version fans located on the front panel. These fans provide strong positive pressure and airflow through the entire case right out of the box. Their design optimises the balance between performance and noise for quiet system operation.
Motherboard formats
- ATX
- mATX (Micro ATX)
- mITX (Mini ITX)
- E-ATX (Extended ATX)
Fans
- Front fan size: 3× 120mm or 3× 140mm
- Bottom fan size: 3× 120mm
- Top fan size: 2× 140mm or 3× 120mm
- Rear fan size: 1× 120mm or 1× 140mm
Ports
- USB 3.2 Gen 1
- USB-C (Type-C Gen 1)
- Combined 3.5mm audio jack
- USB 3.2 Gen 2
Specifications
Usage and size
Colour
Internal structure
External structure
PSU
Cooling system
Backlight
Material
Dimensions
| Code: | CBh7f5 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
NZXT Europe GmnH, Ammerthalstrasse 32, 85551 Kircheim Bei , Munchen, Germany [email protected]
|
