NZXT H7 Flow RGB (2024) All White

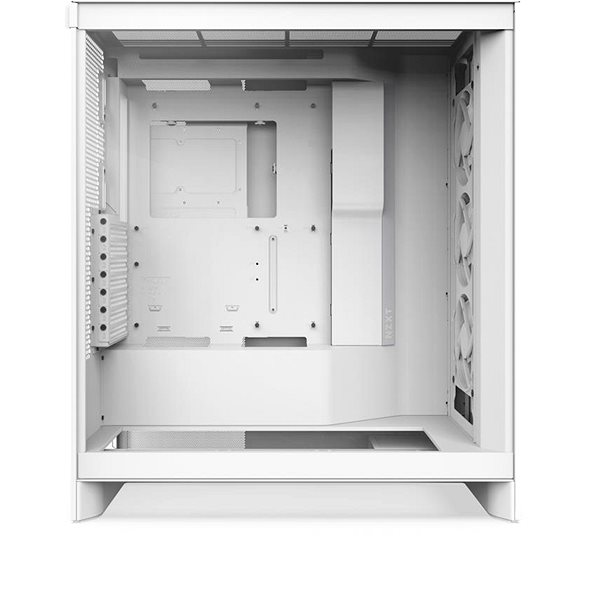

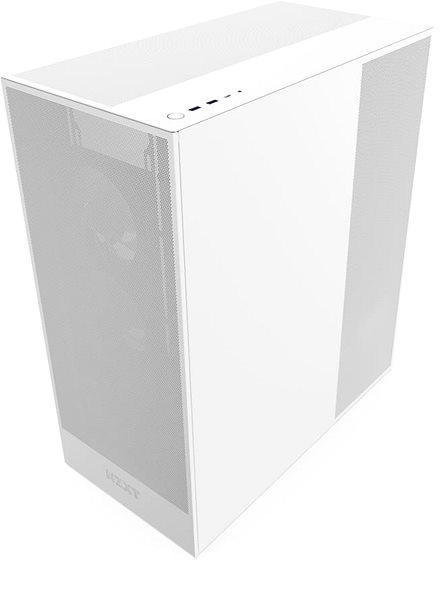

The NZXT H7 Flow RGB computer case in white serves as the foundation for powerful gaming builds where efficient air circulation through perforated panels is a priority. The Midi Tower chassis accommodates motherboards from mITX to E-ATX and offers extra space for modern graphics cards and extensive water-cooling systems. A specific feature of the design is the vertical orientation of the power supply at the bottom, which frees up space for fans on the case floor. Users can take advantage of positions to install up to ten fans or two large radiators, and the internal layout accepts tall processor coolers. The tempered glass side panel provides a view of the installed components and lighting.
Midi Tower
Size
185mm
Maximum CPU cooler height
410mm
Maximum graphics card length
3×
Number of installed fans
10×
Number of fan positions
Key features of the NZXT H7 Flow RGB (2024) All White computer case
- Perforated panels ensure high airflow throughout the build
- Vertical PSU mounting frees up space for bottom fans
- The front position accommodates a large water-cooling radiator
- Includes a fan module
- Tempered glass side panel offers a view of the interior
- Tool-free mechanism makes removing external panels easy
- Cable management system uses wide channels and straps
Vertical PSU orientation and panels of the NZXT H7 Flow RGB
The vertical PSU orientation moves the power supply unit to the bottom vertically, freeing up space for fans. The steel construction with tempered glass forms a solid foundation for the entire build while maintaining a compact footprint on your desk. The front, top, and side panels use a fine mesh-type perforation. This design maximises cool air intake to the internal components, and the filter system traps dust while maintaining high airflow, replacing traditional foam inserts.
Cooling in the NZXT computer case
The manufacturer has fitted the front position with a one-piece frame holding three fans. The integrated ARGB lighting adds visual dynamism to the build and a single connector simplifies connection to the motherboard or controller. The bottom of the case offers space for three fans that draw air directly under the graphics card. This supply of fresh air significantly reduces temperatures on the graphics accelerator chip and memory modules.
Motherboard formats
- ATX
- mATX (Micro ATX)
- mITX (Mini ITX)
- E-ATX (Extended ATX)
Fans
- Front fan size: 3×120mm or 3×140mm
- Bottom fan size: 3×120mm
- Top fan size: 2×140mm or 3×120mm
- Rear fan size: 1×120mm or 1×140mm
Ports
- USB 3.2 Gen 1
- USB-C (Type-C Gen 1)
- Combined 3.5mm audio jack
- USB 3.2 Gen 2x2
Specifications
Usage and size
Colour
Internal structure
External structure
PSU
Cooling system
Backlight
Material
Dimensions
| Code: | CBh7fr4 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
