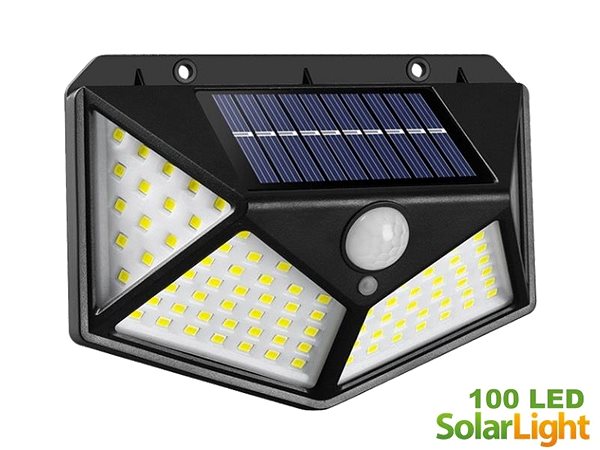

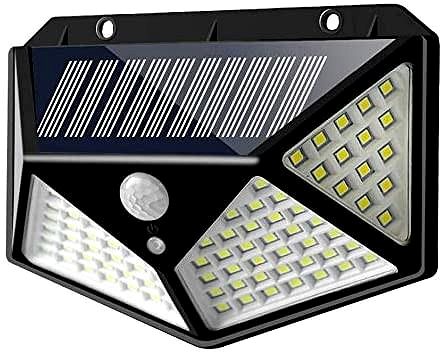

Solar LED luminaire SL-100
Solar LED luminaire SL-100
LED solar light with motion sensor and dusk-to-dawn switch. Runs completely automatically without any mains power. Solar LED light is a great way to illuminate any spot with zero electricity costs and no need for structural modifications or wiring.
Key features of the SL-100 solar LED light
- Four different lighting modes
- 100 SMD LEDs fully replace a traditional halogen floodlight
- 1200mAh battery capacity
- Supplied with mounting materials and detailed instructions
Operation
The light mode switch is located underneath the motion sensor.
1. OFF – the light stays off, and only solar panel charging is active
2. AUTO – the light turns on at full power in the dark for approximately 20 seconds when motion is detected, then turns off
3. AUTO DARK – glows continuously at a lower power in the dark, switching to full power when motion is detected in front of the sensor
4. DARK ON – glows continuously at low power automatically after dusk
Technical specification
Motion sensor: PIR motion sensor
Motion detection: approximately 6 metres, 120 degrees
LED lifespan: more than 80000 hours
Number of LEDs: 100× SMD 2835
Solar panel: monocrystalline silicon 5.5V 1.43W
Battery: integrated 18650 type 1200mAh
Power input: 5W max.
Lighting time: up to 8 hours on a full charge
Charging time: approximately 6 hours in sunlight
Light temperature: 6500K
Luminous flux: 700lm
IP rating: IP65
Material: ABS
Dimensions: approximately 135×97×53mm
Package contents
Solar LED light SL-100 - black
Mounting material (wall plugs, screws)
Integrated battery and solar panel
Detailed instructions
Specifications
Material and style
Purpose and use
Type and construction
Other features
Dimensions
Light source
Voltage and input power
Light
Battery
Safety class
Energy Label
Connectivity
| Code: | XTECHLED001 |
| Warranty: | 24 months |
| Manufacturer information |
Xtech electronics s.r.o. Palackého 295, Nové Strašecí, 27101, Czech Republic, +420602 330 600, [email protected]
|
