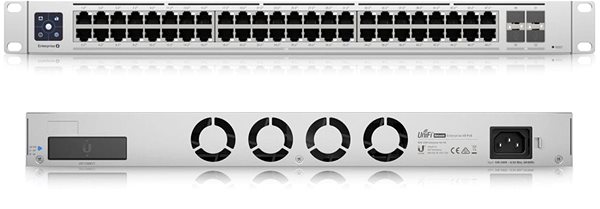

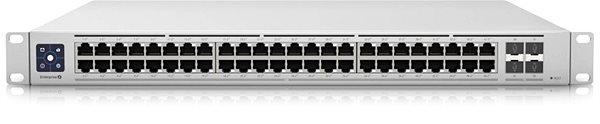

Ubiquiti UniFi Switch USW-Enterprise-48-PoE
Ubiquiti UniFi Switch USW-Enterprise-48-PoE
The Ubiquiti UniFi USW-Enterprise-48-PoE manageable L3 smart switch features 48 2.5Gigabit (100/1000/2500Mbps) RJ-45 ports. All 48 copper Ethernet ports support PoE+ power delivery according to the IEEE 802.3af/at standard. PoE+ power output is up to 30W per port, with a total power budget of up to 720W. In addition to the copper ports, the switch includes 4 1/10Gigabit SFP+ ports. It also features a 1.3" touchscreen display that shows status information for faster troubleshooting and easy monitoring. Power the switch using a standard 230V mains supply, or via the UniFi SmartPower RPS, which provides backup power in the event of an internal power supply failure.
Key features of the Ubiquiti UniFi Switch USW-Enterprise-48-PoE smart switch
- 48 RJ-45 Ethernet ports with IEEE 802.3af/at PoE+ power delivery
- 4 1/10Gigabit SFP+ ports
- 1.3" touchscreen display for monitoring and management
- Ubiquiti UniFi Switch USW-Enterprise-48-PoE smart switch uses the UniFi Network Controller for management
- 320Gbps switching capacity / 160Gbps total throughput
- 238Mpps routing rate
Intuitive setup and management
Ubiquiti UniFi Switch USW-Enterprise-48-PoE has no web management but is managed centrally using the UniFi Network Controller with UniFi mobile app support. It provides a full suite of advanced L2 switching protocols and features. The UniFi Network Controller and mobile app let administrators configure and monitor almost all router features in a graphical user interface from anywhere. Switch configuration options include:
- Operating mode (switching, mirroring or aggregation) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control settings per port
- Spanning tree configuration
- 802.1X control and RADIUS VLAN
- Debug terminal for command-line interface
Standard accessories:
Power cable
19" rack mount brackets
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Routing
Features
Speed
Dimensions
Material
Operating temperature
Weight
| Code: | Ubiq23_027 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
Ubiquiti International Holding B.V., Ekkersrijt 3102. Son en Breugel, 5692 CC. Netherlands, [email protected]
|
