W-Star WSAN104

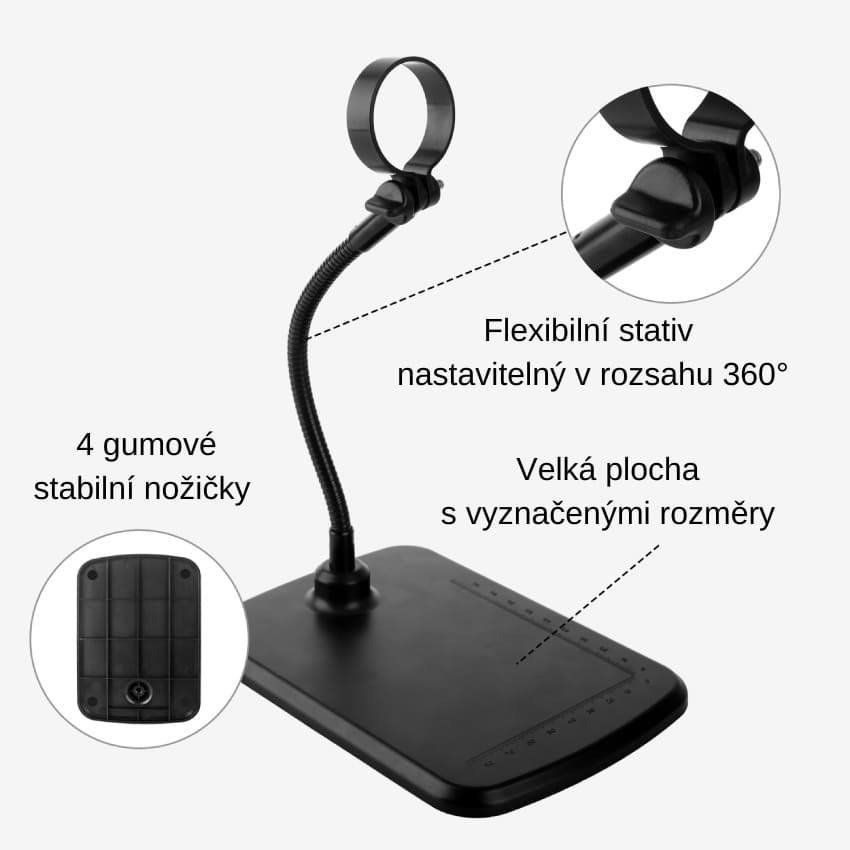

The W-Star WSAN104 digital Wi-Fi microscope is equipped with a highly sensitive imaging chip with a resolution of 0.3 Mpx. It can be connected to a PC or MacBook using a USB cable. It offers smooth magnification in the range of 50-1000× and a resolution of 640×480 px, which is sufficient for observing details on coins, printed matter or for checking the quality of printed circuit boards. The microscope is also suitable for teaching purposes. You'll appreciate the responsive shutter button that minimises movement of the device when taking pictures and videos. You can view, analyse or compare your saved records at any time. A flexible tripod is included for easy and convenient setup. The examined object is illuminated by 8 LEDs with the possibility of regulating the intensity of illumination.

Package contents:

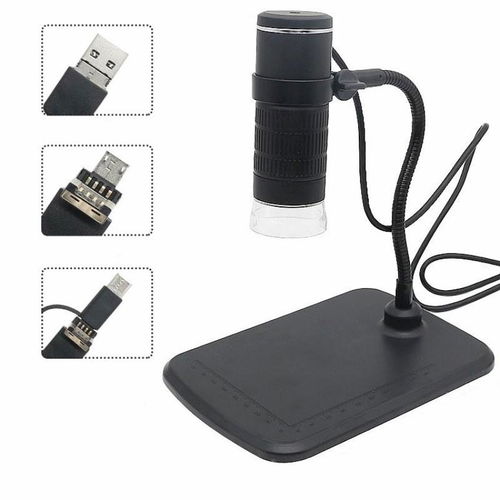

Microscope, flexible tripod, USB cable and English user manual, English instructions for download

Technical specifications

The cable length: USB 1.5 m
Resolution: 640 × 480, 0.3 MPx
Magnification: 50-1000×
Viewing angle: 70°

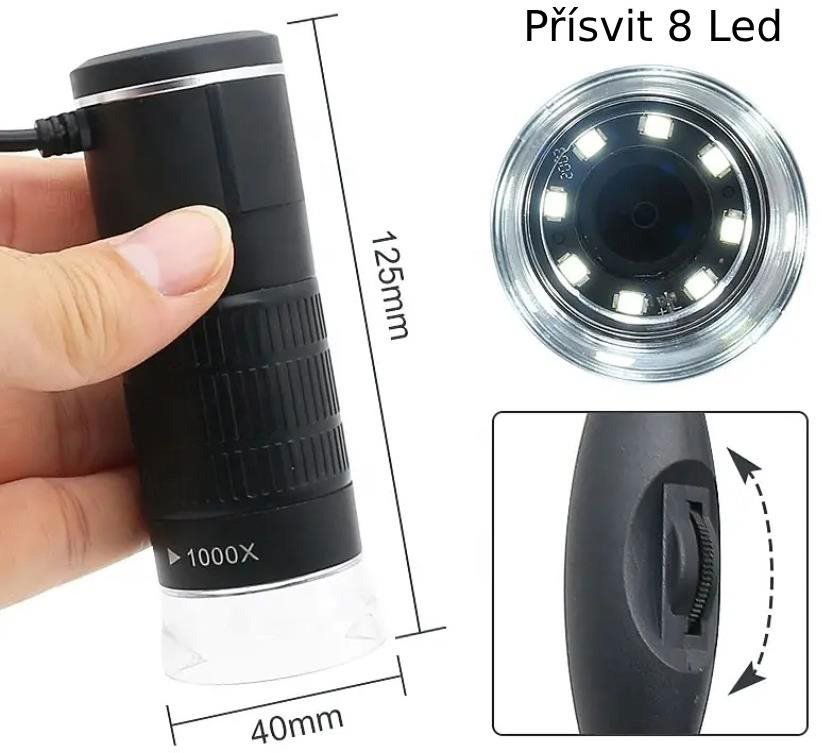

LED lighting: 8× SMD LED, adjustable light intensity
Focus mode and focus range: 0-40 mm, manual adjustment
Imaging distance: 3 mm to infinity
Focal length: 0 - infinity
Sensor size: 1/4"
Lens: 2G+IR
Charging requirements: DC-5V/1A
Operating temperature: 0-45°C
Photo format: JPEG, PNG
Video format: AVI, MP4
Supported operating system: Android 4.2 / Windows / Mac (does not support mobile phones with iOS)
Pack size: 175 × 130 × 53 mm
