Zyxel XGS1930-28HP, 28 Port Smart Managed PoE Switch

A network switch is an active network element that connects individual devices or other network elements. It is designed for managing network traffic. The Zyxel XGS1930-28HP, 28 Port Smart Managed PoE Switch is made to be installed in a rack. This type has a switching capacity of 128 Gb/s. The Switch is equipped with 24 × RJ-45 ports that provide connection with network elements. 4 SFP connectors are there to transport data via optical fibers. 10/100Base-T technology enables data transfer with a speed of up to 100 Mbit/s. 10/100/1000Base-T technology allows file transfer with a speed of up to 1000 Mbit/s. It uses Dual Personality ports, notable for incorporating both the RJ-45 and SFP connector ; however, only one of them can be in use at a time. The switch dimensions are 441 × 330 × 44mm. QoS aka Quality of Service technology ensures the switch stays within its capacity, and it also enables you to control end station priority. The ZyXEL device includes PoE technology, which provides power and signal connection to end devices with a single LAN cable. Moreover, the switch provides effective management and settings options. The Zyxel XGS1930-28HP, 28 Port Smart Managed PoE Switch likewise works on the ISO/OSI model network layer, meaning it can double as a router. Thanks to this neat feature, you don't have to purchase any extra network element.

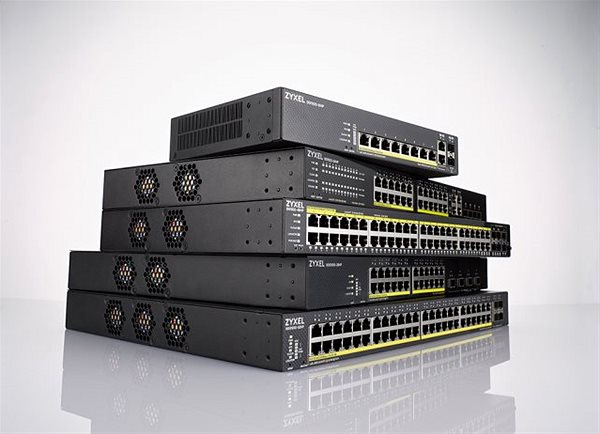

Switch Zyxel XGS1930-28HP, 28 Port Smart Managed PoE Switch ...

Key Features of the Zyxel XGS1930-28HP, 28 Port Smart Managed PoE Switch Switch

  • Serves to connect end devices and other nodes
  • 128 Gb/s switching capacity
  • Features 24 × RJ-45 ports
  • SFP connectors for optical fiber connection
  • ZyXEL switch is designed for rack installation
  • PoE (Power over Ethernet) technology support
  • QoS (Quality of Service) option
  • VLAN virtual network support
  • Supports L3 layer, allowing it to work as standalone router

Specifications

Dimensions

Width 441 mm
Height 44 mm
Depth 330 mm

Number of LAN ports

Number of LAN ports with 1 Gbit speed 24
Number of LAN ports with 10 Gbit speed 4

Material

Body material Metal

Operating temperature

Minimum operating temperature 0 °C
Maximum operating temperature 40 °C

PoE properties

PoE standard 802.3af (PoE), 802.3at (PoE+)
Performance 375 W
Maximum output power per port 30 W
Number of PoE ports 24 ×

Type

Switch type SMART
Design Rack
Use Home, Company

Functions

Functions PoE
Switching layer L3
Advanced network functions QoS (Quality of Service), VLAN, LACP line aggregation
Snooping IGMP

Ports

RJ-45 24 ×
SFP 4 ×
10/100/1000Base-T 24
10GbE 4 ×

Features

Power Supply From the network
Maximum number of VLANs 1,024 ×
Features IPv6 Ready

Speed

Switching capacity 128 Gb/s
Packet capacity (64B packets, in million of packets) 95.2 Mpps
Code:  VD410a7
